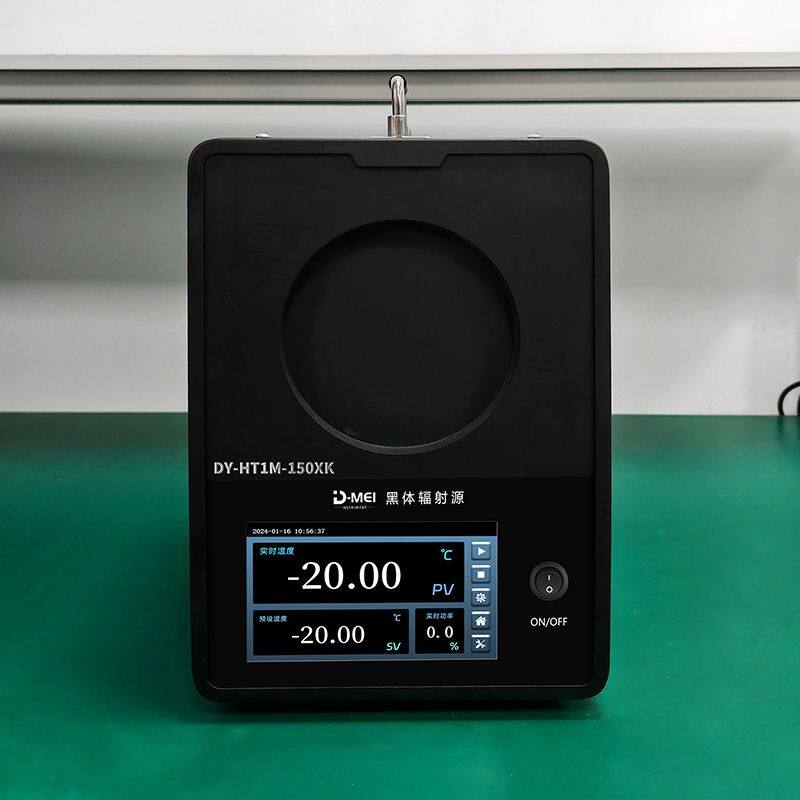

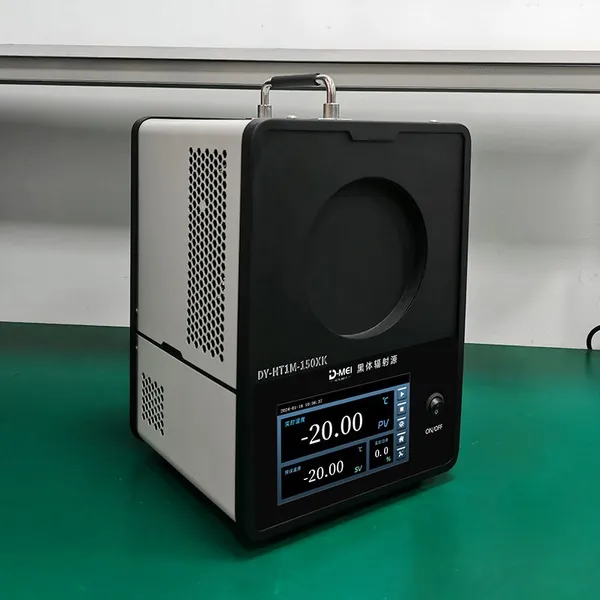

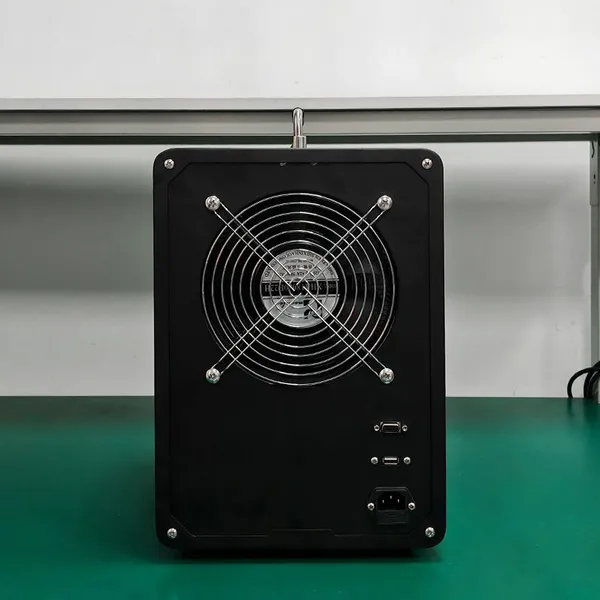

DY-HT1M-XK surface source blackbody radiation source
(radiation surface 150mm)
1.Product Overview
The surface source blackbody radiation source is the infrared radiation working standard, which is widely used in the process test and technical index test of the identification test in the development process of infrared detectors. It can meet the test needs of infrared thermal imagers widely used in medical, construction, security monitoring, environmental testing and other industries.
2. Product Advantages
1) More complete functions. Built-in upgrades are equipped with adjustable emissivity, programmable operation and other functions.
2) 7-inch large LCD screen, large viewing angle, touch operation, beautiful and elegant.
3) Faster heating speed and better temperature stability than black body furnace products in the same industry.
4) Built-in multi-point independent temperature correction function, small deviation and high precision.

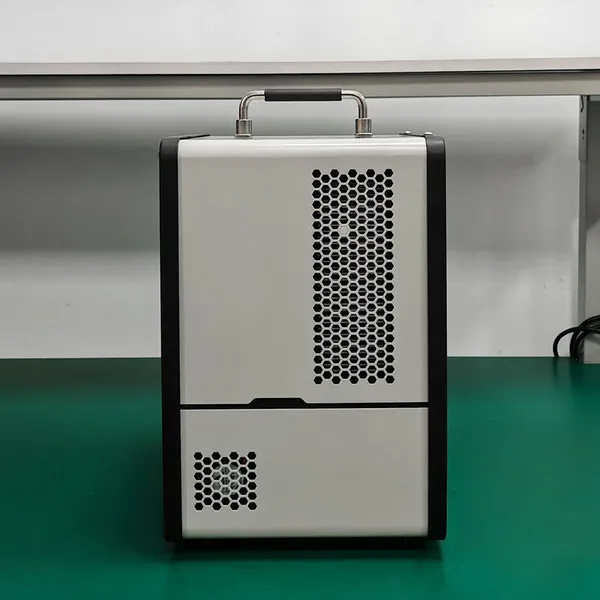

5) Humanized design, equipped with folding handles, easy to carry and move.
3. Product Advantages
1) Novel appearance design, adopting an integrated structure of furnace body and temperature controller.
2) The heating element is insulated from the outer shell, and special software is used for pressure-limited heating, and no high-power power transformer is required.
3) Automatic temperature rise and temperature control method is adopted, which is safe and reliable.
4) Convenient operation, small size and light weight, easy to carry, not only suitable for laboratory calibration, but also for on-site calibration work.
5) Large surface source isothermal blackbody radiation surface, the factory default emissivity is 0.95. If a different emissivity is required, the emissivity can be adjusted between 0.96-1.
7) Automatic intelligent adjustment: Contains MH logic intelligent adjustment function, and advanced control algorithm with parameter self-tuning function.
8) Program control function, the equipment has 10 groups of different program setting interfaces reserved, one-button operation, convenient and fast, meeting the user's various detection point requirements, and improving the user's detection efficiency.
9) The communication interface can be customized RS232 or RS485.
10) The equipment has a memory function, and it can quickly restore to the previous setting state after restarting, without the need to set it up again.
4. Technical parameters
Model |
DY-HT1M-150XK |
DY-HT2M-150XK |
Temperature range |
-20℃-100℃ |
Room temperature+5℃-500℃ |
Operation mode |
7-inch touch screen operation |
|
Resolution |
0.1℃/0.01℃ |
|
Operation mode |
Touch screen operation |
|
Temperature control |
PID automatic control |
|
Radiating surface |
Φ150mm |
|
Emissivity |
≥0.95 (emissivity adjustable between 0.96-1) |
|
Stability |
Not more than the larger of 0.15℃ and 0.15%t, t is the radiation source temperature (within 10 minutes) |
|
Uniformity |
±(0.2-0.6)℃ (2/3 center area) |
Not more than the greater of 0.2℃ and 0.2%t, t is the radiation source temperature (in the 2/3 center area) |
Power supply |
220V AC 50/60HZ 10A |
|
Power |
800W |
|
Volume |
260mm×250mm×375mm |
|
Weight |
11.5Kg |
9.5Kg |
Environment |
22℃±3℃ 15%RH-65%RH |
|
Optional Features |
① Support 232 communication ② Adjustable emissivity function (adjustable between 0.96-1, factory default emissivity 0.95) ③Provide field of view angle calculation software ④Safety protection mechanism ⑤Programmable control function
|
|
Traceable Standards |
Factory inspection uses HEITRONICS radiation temperature transfer pyrometer for radiation temperature measurement. After the corresponding fixed point blackbody radiator is calibrated, it provides temperature transfer between blackbody radiation sources. |
|
Automatic intelligent adjustment |
Intelligent regulation, including MH logic intelligent regulation function and advanced control algorithm with parameter self-tuning function |
|
Temperature fluctuation curve |
The system is equipped with a temperature control curve to monitor temperature changes in real time. |
|
Programmable control function |
Each program can be set for stable time according to the detection requirements, and can be quickly set through "save and send" without inputting each time. The device has 10 groups of different program setting interfaces reserved to meet the user's requirements for multiple detection points and improve the user's detection efficiency. |
|
Provides field of view calculation software |
The length of an object can be calculated based on the field of view angle and the distance to the object, or the distance can be calculated based on the length of the object and the field of view angle. |
|
Security protection mechanism |
1. Add a safety protection mechanism to the temperature control equipment, automatically stop heating when over-temperature occurs, and protect personnel safety. 2. The equipment has a safety device, and the equipment can automatically cut off the power when internal leakage/short circuit/open circuit occurs; the equipment power must match the power line load. |
|
language |
The default language is Chinese, and the language interface can be obtained from anywhere in the world according to customer requirements. |
|
Independent intellectual property rights |
The blackbody radiation source touch screen system has obtained the computer software copyright registration certificate, patent number: 2020SR0565743 |
|
Certification qualification |
ISO9001 quality management system certification |
|
Implementation |
JJG 856-2015 Calibration procedures for working radiation thermometers |
|
Remark |
For low-temperature surface source blackbody furnace, when the set temperature is lower than the ambient temperature, in order to effectively avoid the problem of frosting on the radiation surface of the blackbody furnace, the blackbody furnace is equipped with an anti-frost cover and nitrogen ventilation pipe. Users need to prepare nitrogen, nitrogen pressure reducing valve and other related supporting equipment. |
|
