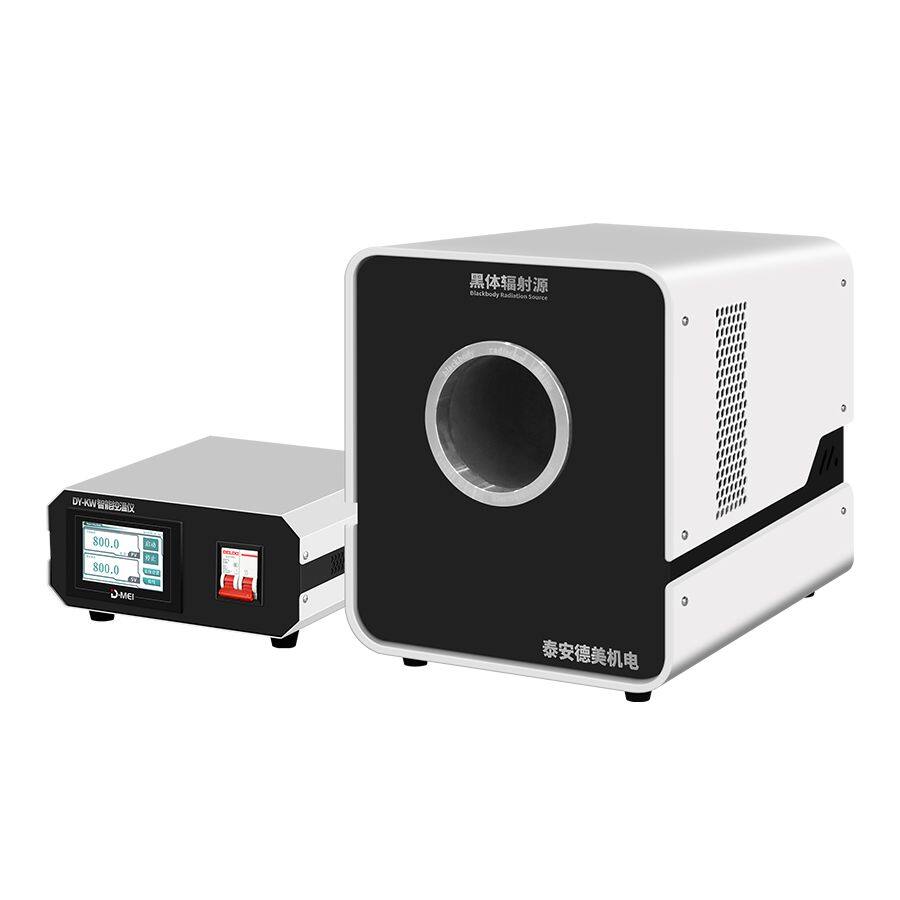

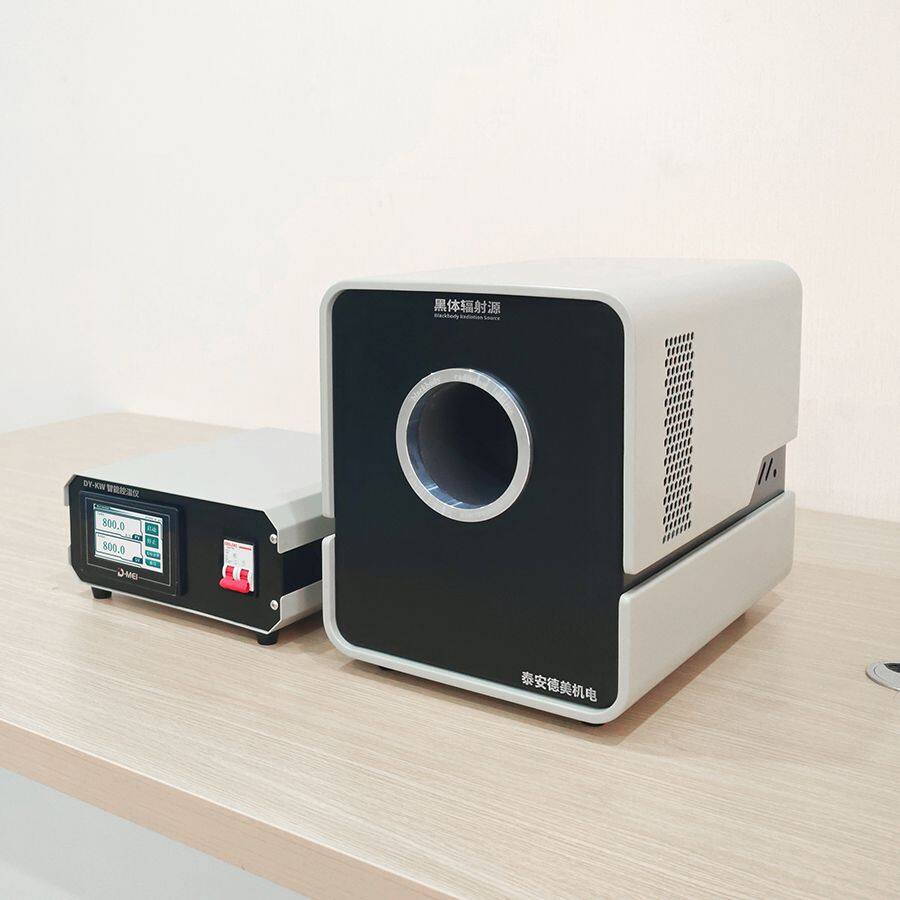

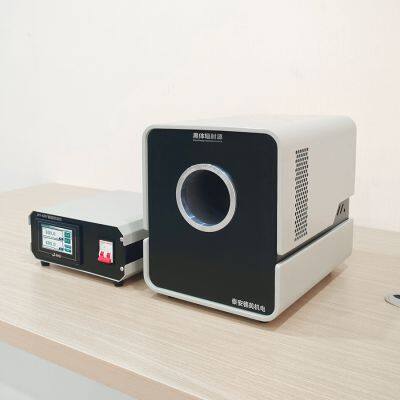

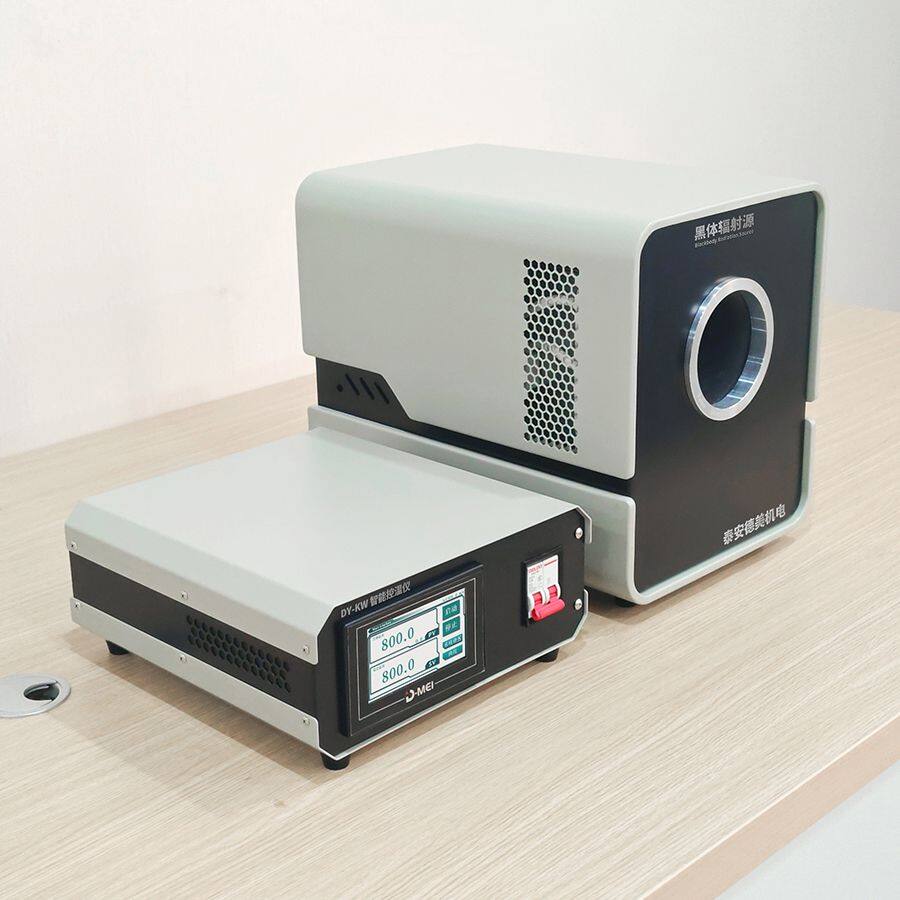

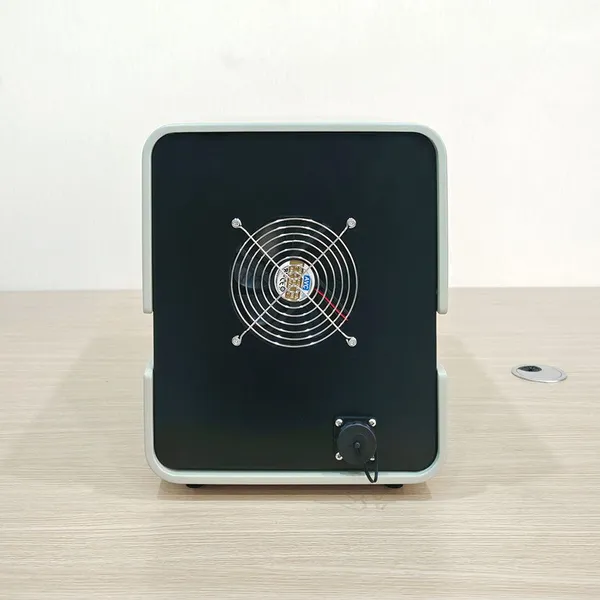

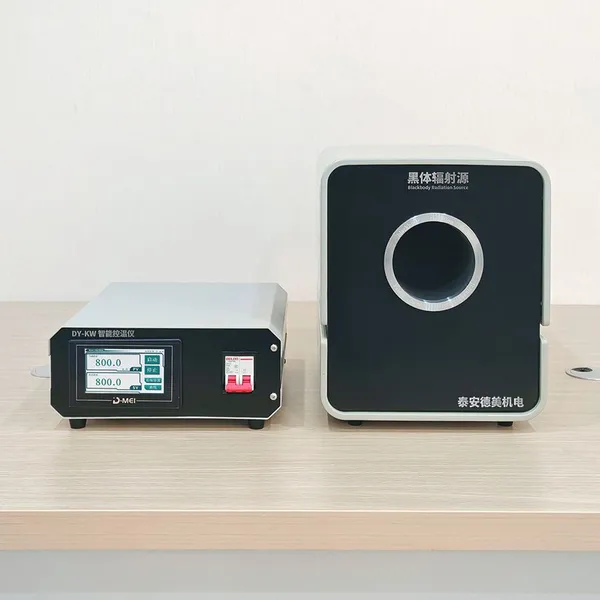

DY-HT2M-C Ultra-High-Temperature Blackbody Radiation Source (100mm)
I. Product Overview
The DY-HT2M-C (50°C–800°C) Ultra-High-Temperature Surface-Source Blackbody Radiation Source breaks through the current market bottleneck wherein mainstream surface-source blackbody is generally limited to an operating temperature of 500°C. By significantly raising the upper temperature limit to 800°C, it successfully fills a technological gap in domestic industrial-grade infrared calibration within the high-temperature range (50°C–800°C). Leveraging its exceptional high-temperature performance, this product precisely meets the rigorous demands of infrared R&D enterprises for the testing of high-temperature infrared equipment. It is widely applicable to infrared thermal imager testing scenarios across fields such as medical imaging diagnostics, building energy efficiency assessment, security surveillance systems, and environmental monitoring equipment, thereby providing a reliable high-temperature calibration benchmark for infrared technology applications across diverse industries.
II. Product Advantages
1.Imported Temperature Control System and Precision PID Technology: Utilizes temperature controllers from internationally renowned brands, combined with advanced PID control algorithms, to achieve high-precision temperature regulation, ensuring a stable and reliable control process with minimal fluctuation.
2.Modular Design—Flexible and Efficient:The controller and radiation source feature a split-structure design, allowing for independent maintenance, upgrades, or replacements; this significantly simplifies the on-site installation process and enhances operational convenience.
3.Exceptional High-Temperature Performance:Within the high-temperature range (50–800°C), the device demonstrates superior temperature stability and uniformity, fully meeting the rigorous demands of high-precision calibration scenarios.
4.Efficient Thermal Insulation and Energy-Saving Design:Employs specialized thermal insulation techniques between the heating element and the outer casing; combined with intelligent programmed control, this significantly reduces energy consumption and ensures highly efficient, energy-saving operation.
5.Intelligent Temperature Control and Safety Features:Integrates an automated heating and temperature control system equipped with comprehensive safety protection mechanisms; it features rapid heating speeds and outstanding temperature stability, ensuring safe and reliable operation.
6.Portable Design—Wide Range of Applications: Compact and lightweight, the device is easy to carry and transport; it is ideally suited not only for precision calibration within laboratory settings but can also effortlessly handle various on-site calibration tasks, offering flexible and diverse application scenarios.
7.Rapid Heating Capability:Capable of rising from room temperature to a high temperature of 800°C quickly, significantly reducing calibration preparation time and boosting work efficiency.
8.Application Scenarios: Suitable for factory calibration within infrared manufacturing enterprises, or for scientific research experiments requiring the rapid verification of high-temperature characteristics.
III. Technical Parameters
Type |
Ultra-High Temperature Surface Source Blackbody Radiation Source |
Model |
DY-HT2M-C |
Operating Temperature |
50℃-800℃ |
Operation Mode |
Touchscreen Operation (Utilizes imported temperature controller) |
Temperature Resolution |
0.1℃ |
Temperature Control |
PID Automatic Control |
Radiating Surface |
Φ100mm |
Cavity Depth |
120mm |
Emissivity |
Better than 0.95 (Emissivity adjustable between 0.95 and 1) |
Temperature Stability |
No greater than the larger of 0.15°C or 0.15%t (where t is the radiation source temperature);measured within a 10-minute interval. |
Temperature Uniformity |
0.5%t (within the central 2/3 area) |
Power Supply |
220V AC 50/60HZ 10A |
Wire Gauge |
≥ 1.5 m² |
Dimensions (L × W × H) |
Blackbody Main Unit: 335 mm × 278 mm × 405 mm Temperature Controller: 300 mm × 285 mm × 130 mm |
Weight |
Main Unit: 16.5 kg Temperature Controller: 4.8 kg |
Environmental Conditions |
22℃±3℃ 15%RH-65%RH |
Optional Features |
① Supports RS232 communication ② Adjustable emissivity function (Adjustable between 0.95 and 1; factory default emissivity is 0.95) |
Automatic Intelligent Adjustment |
Intelligent regulation featuring advanced control algorithms, including MH logic intelligent adjustment and parameter auto-tuning capabilities. |
Temperature Fluctuation Curve |
System-configured temperature control curves allow for real-time monitoring of temperature fluctuations. |
Heating Rate |
50°C – 800°C: Heating time: 30 min; Stabilization time: 20 min |
Power |
2200W |
