Home > Products > Pneumatic telescopic mast > 4m portable lightweight camera pole telescopic CCTV mast

4m portable lightweight camera pole telescopic CCTV mast

Name: 4m portable lightweight camera pole telescopic CCTV mast
Brand: TALENTS
Availability: InStock

FOB Price

USD $260 - $290 / Unit

1 Unit(Min.Order)

Supply Ability 200 Unit / Units per Month
Port China main port
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	TALENTS		Place of Origin	Tianjin, China
Model Number	TAL-P4-1.4-25

Product Description

4m portable lightweight camera pole telescopic CCTV mast

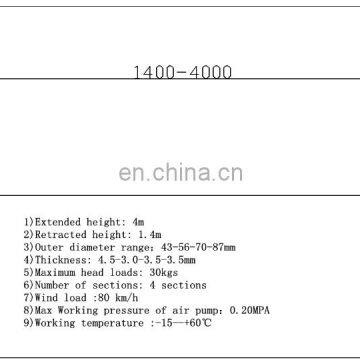

technical data
main spec.	1)Extended height: 4m with camera 2)Retracted height: 1.4m 3)Outer diameter range：43-56-70-87mm 4)Thickness: 3.0-4.5-3.0-3.5-3.5mm 5)Maximum head loads: 25kgs 6)Number of sections: 4 sections 7)Wind load :80 km/h 8)Max Working pressure of air compressor: 0.20MPA 9)Working temperature :-15℃--+60℃
Accessories	Car clamp--------------------------------------------------1 unit Ground anchor------------------------------------------4 pieces Guy wire----------------------------------------------------4 pieces Air pump---------------------------------------------------1 piece Tripod -----------------------------------------------------1 piece Top plate---------------------------------------------------1 piece
Material	Al-Mg alloy 6063
Color	light brown

accessories

model	unit
guy wire	1 set
ground anchor	1 set
air compressor or manual pump	1 unit
tripod or car clamp	1 unit
top plate	1 unit
bottom base	1 unit

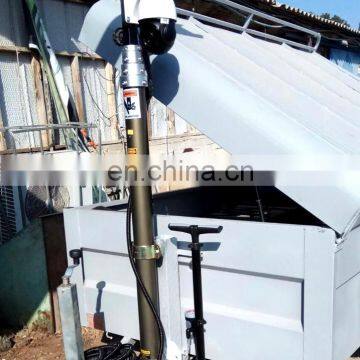

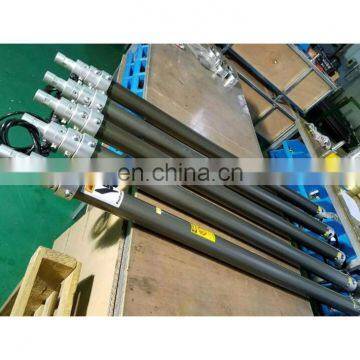

Detailed Images

4m portable lightweight camera pole telescopic CCTV mast

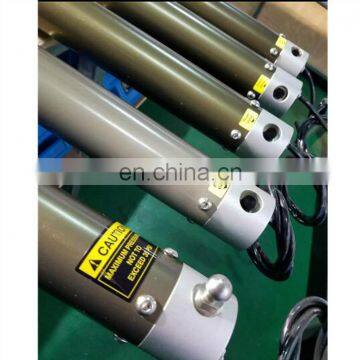

Bottom flange

mount the mast to filed or other base.
and bottom bracket with air inlet for air pipe connect with the air Compressor or foot/hand pump.

locking

Designed for long-term use. For preventing the mast slide down.

power cable

can be inside or outside of mast

Packing & Delivery

4m portable lightweight camera pole telescopic CCTV mast

Packing details
C/NO.	DESCRIPTION	QTY (UNIT)	N.W. (KG)	G.W. (KG)	MEAS (CM)
1	Pole : --------------------------2 units	2	25.00	40.00	1603040

After-sale service

Except the damages due to misuse,unauthorized modification and man-made sabotage,
the damaged of the telescopic mast will enjoyed free after-sales maintenance
within one year time from the date of delivery on the condition that the buyer
himself will bear the shipping cost back and forth and the said damage should be
confirmed by the seller through photos and description

Installation Instructions:
1）the mast can be installed on the ground, or on the vehicle. No matter where to install, its installation shall keep vertical with the ground.Tilted telescopic mast will affect the rise and fall of itself, and if the lifting rod tilts seriously or maintain a long time, damage and danger could not be avoided.

2）the mast needs to be installed on a fixed object, without any shaking, such as walls, car body, or pile. At least two fixed points will be installed, and one point must be installed on the body of the telescopic antenna mast. And the distance between two points should be longer than 2/3 of the height of telescopic mast. Its connection must be solid and reliable.

Workshop

Our Service

we supply telescopic mast up to 35m,usually used as antenna mast,communication tower,light support,camera mast and so on,custom-made payload to 400kg,customized length,retracted,payload etc. accepted.

catalog of some common grade pneuamtic mast as follows

extended height (m)	No. of section	retracted height (m)	outer tube range (mm)	max. head loads(kg)	self weight (kg)
2	2	1.3	118-98	150	22
3	4	1.1	87-43	30	25
6	5	1.7	118-51	30	42
8	7	1.8	140-36	30	65
10	7	2.20	140-36	30	72
12	7	2.6	140-36	15	85
15	7	3.0	140-36	20	90
16	8	3	180-51	30	175
18	10	3	279-66	100	330
20	9	3.3	229-66	55	300
30	13	4	316-51	30	630

Welcome to contact

contact person: Ms.Grace Wang

Talents Enterprise Company Limited

T: 86 22 28376666 | F: 86 22 28376667 |
Skype:talents106

whatsapp:0086 18222428293
