Multifunctional Telescopic Tripod Light Stand

Multifunctional Telescopic Tripod Light Stand photo-1
Multifunctional Telescopic Tripod Light Stand photo-2
Multifunctional Telescopic Tripod Light Stand photo-3
Multifunctional Telescopic Tripod Light Stand photo-4
Multifunctional Telescopic Tripod Light Stand photo-5
Multifunctional Telescopic Tripod Light Stand photo-6
Multifunctional Telescopic Tripod Light Stand photo-7
US$ 1,158.79 - 1,310.3 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Talents,Multifunctional telescopic tripod light stand
Place of Origin:
Tianjin, China
Model Number:
TAL-P6-1.7-30-AT8
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai port China
Delivery Detail:
Delivery time depends on order quantity.
Brand Name Talents,Multifunctional telescopic tripod light stand
Place of Origin Tianjin, China
Model Number TAL-P6-1.7-30-AT8
Product Description
Multifunctional telescopic tripod light stand
Pneumatic telescopic mast

* Air compressor/foot punp/hand pump for lifting control.

* Provide convenient installation and use for communications, security, lighting...
* Portable, retractable, widely application

* Accept customerized request

* Specification range: extended height from 1m to 35m. max head-load from 5kg to 300kg...

* Based on different mount place, different accessories will be provided.

Specification
Multifunctional telescopic tripod light stand
Multifunctional telescopic tripod light stand
Specification
Multifunctional telescopic tripod light stand
Model No.
TAL-P6-1.7-30-AT8
Extended height
6.0m
Retracted height
1.7m
Max head-load
30kg
Mast self weight( without tripod)
around 40kg
Mast sections No.
5 sections
Section No.& tube OD*Wall thickness
1# 118/4.0mm 2# 98/4.0mm
3# 82/3.5mm 4# 66/3.0mm
65 # 51/3.0mm
Acessories
Mount model
Ground fixed type---with tripod
Accessories
Air compressor------------------------------------------1pc
110V~220V for choose
working pressure:0.2MPa
Air hose-----------------------------------------------------1pc
Control invalve-------------------------------------------1pc
Top flange--------------------------------------------------1pc
Guy wire-----------------------------------------------------3pcs
Guy stakes--------------------------------------------------3pcs
Car clamp---------------------------------------------------1pc
tripod-----------------------------------------------------------1pc

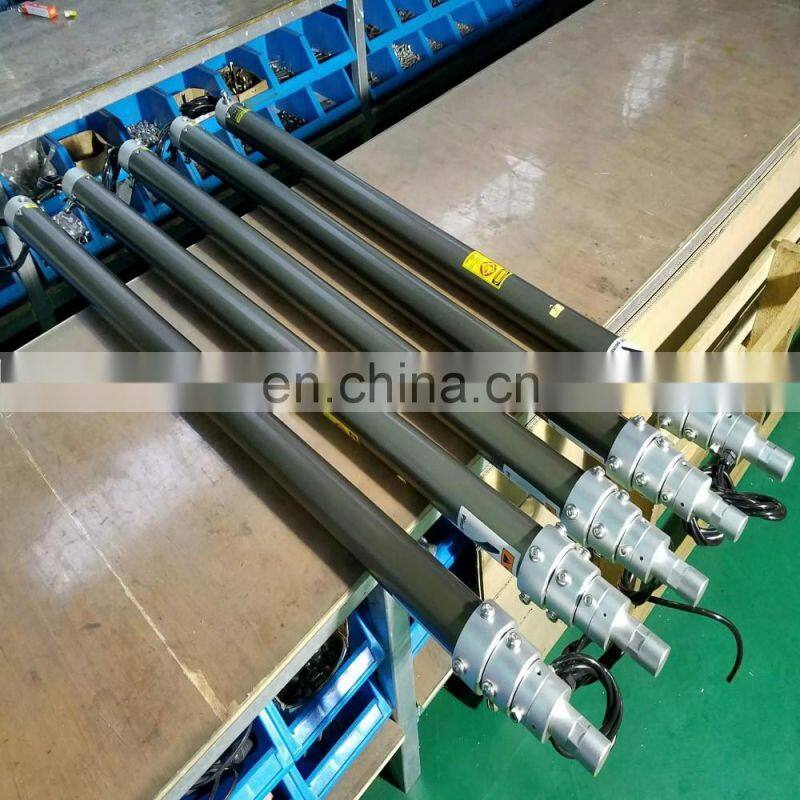

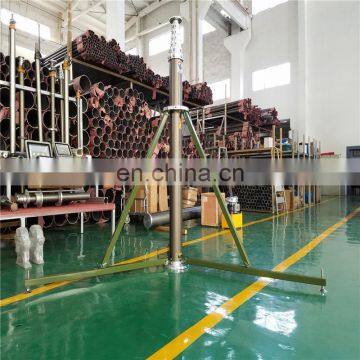

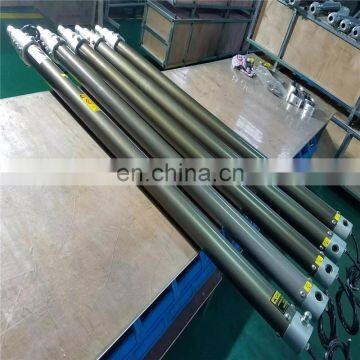

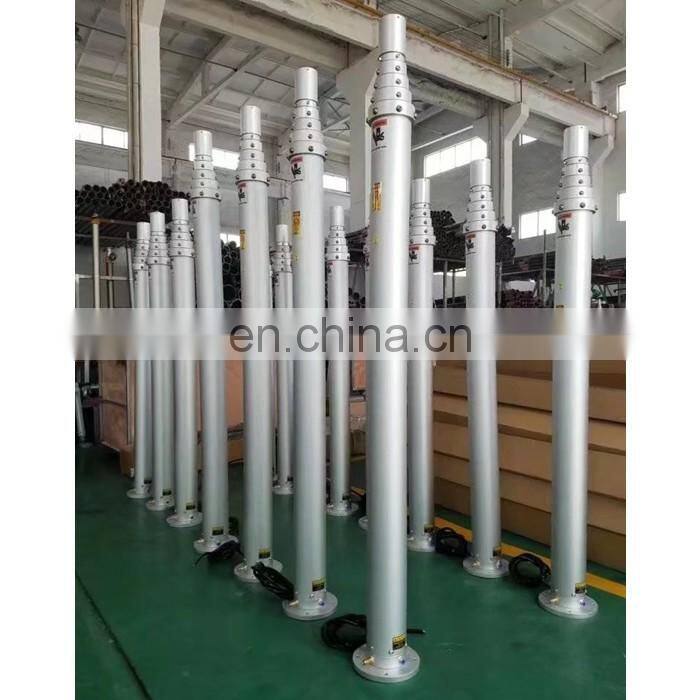

Detailed Images

Multifunctional telescopic tripod light stand

Multifunctional telescopic tripod light stand
Multifunctional telescopic tripod light stand
Multifunctional telescopic tripod light stand

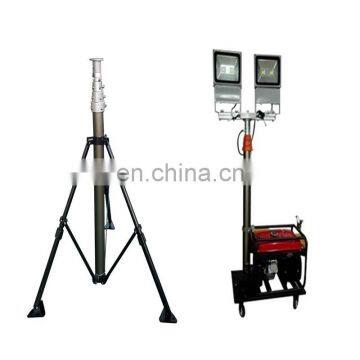

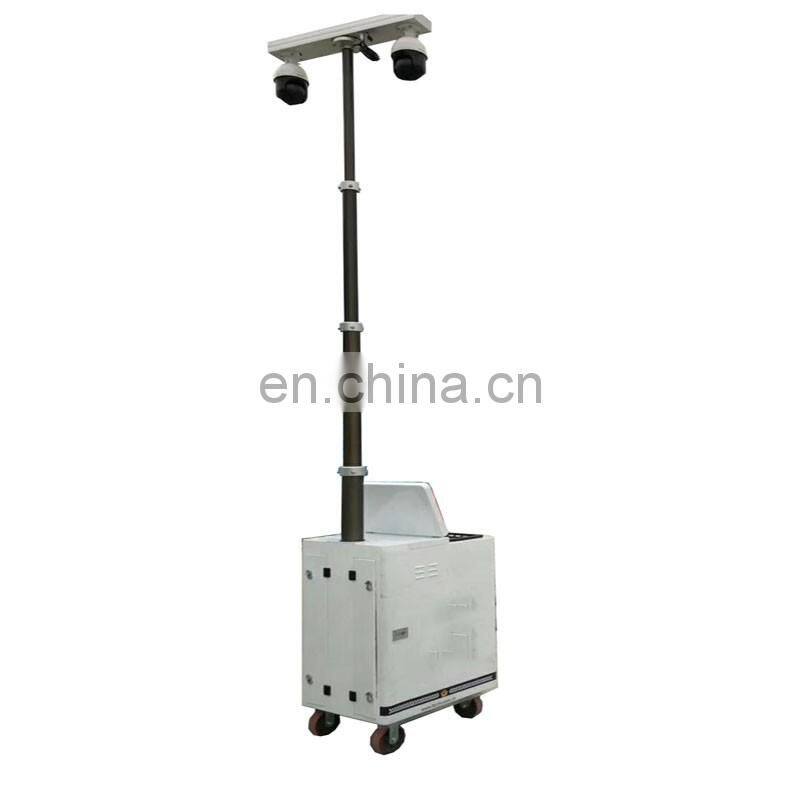

Other Application pictures

Multifunctional telescopic tripod light stand
Multifunctional telescopic tripod light stand
Multifunctional telescopic tripod light stand

lighting mast

camera tripod

Vehicle mounted

camera mast

Packing & Delivery
Multifunctional telescopic tripod light stand



Multifunctional telescopic tripod light stand

Packed into a Plywood case.

Mast and accessories will be packed into a plywood case.

inner matainnig parts will be filled with foam.

Gross weight is around 95kg

Measurement:195*45*50cm

if special request on the packge, we can do it for you.



Our Service

Pre-sale

Reply within 24 hours by e-mail/whatsapp/Wechat/Skype.

Profession advice and design based on customers request.

After-sales

One year warranty for the conditions except the damage caused by Artificial operation, extreme weather conditions.

Our Company

TJTALENTS ENTERPRISE CO.,LTD

* Professional design and supplier for the telescopic mast since 1995---manaul/motorized/pneumatic model.

* Have own technician team for providing proffestional ODM help.
* Golden supplier since 2007 on Alibaba, provide professional export help.

* Our products are widely used all over the world, in places such as Australia, Singapore, Brazil, Chile, UK, Germany, Netherlands, Spain,USA, India, Malaysia and more.

* Our mast are widely used in Military, Emergency, Illumination, Photography,Meteorologic Measurement, etc.

* We just do the good quality mast in long service time.

Multifunctional telescopic tripod light stand
Other Specification
Pneumatic telescopic mast
MODEL No.
Extended
Height
(m)
Retracted
Height
(m)
Bottom
OD
(mm)
TOP
OD
(mm)
Section
NO.
Head-load
(KG)
TAL-2.0-1.3-150-AT8
2
1.3
118
98
2
150
TAL-3.0-1.5-50-AT8
3
1.5
98
66
3
50
TAL-4.0-1.85-250-AT8
4
1.85
180
140
3
250
TAL-4.0-1.3-20-AT8
4
1.3
87
43
4
20
TAL-4.5-1.2-30-AT7
4.5
1.2
140
51
6
30
TAL-4.5-1.65-50-AT9
4.5
1.65
118
66
4
50
TAL-5.0-1.7-40-AT8
5
1.7
98
51
4
40
TAL-5.0-1.75-110-AT8
5
1.75
140
82
4
110
TAL-5.0-1.75-30-AT9
5
1.75
98
51
4
30
TAL-6.0-1.7-30-AT8
6
1.7
118
51
5
30
TAL-6.0-1.75-12-AT8
6
1.75
87
28
5
12
TAL-6.0-2.0-50-AT9
6
2
118
66
4
50
TAL-6.0-1.95-30-AT8
6
1.95
87
43
4
30
TAL-6.0-1.5-25-AT9
6
1.5
118
51
5
25
TAL-7.0-1.95-40-AT8
7
1.95
118
51
5
40
TAL-8.0-1.8-50-AT9
8
1.8
160
51
7
50
TAL-8.0-2.5-250-AT8
8
2.5
229
118
5
250
TAL-8.0-2.2-60-AT7
8
2.2
140
66
5
60
TAL-8.0-2.0-25-AT8
8
2
118
36
6
25
TAL-8.0-2.0-25-AT9
8
2
118
36
6
25
TAL-8.4-2.3-30-AT8
8.4
2.3
118
51
5
30
TAL-9.0-2.15-30-AT8
9
2.15
140
51
6
30
TAL-10.0-2.4-30-AT7
10
2.4
140
51
6
30
TAL-10.0-2.4-15-AT8
10
2.4
118
36
6
15
TAL-12.0-2.7-250-AT8
12
2.7
279
140
7
250
TAL-12.0-2.6-15-AT9
12
2.6
140
36
7
15
TAL-15.0-3.2-30-AT9
15
3.2
160
51
7
30
TAL-15.0-3.5-150-AT9
15
3.5
229
98
6
150
TAL-16.0-3.0-30-AT8
16
3
180
51
8
30
TAL-18.0-3.0-100-AT8
18
3
279
66
10
100
TAL-20.0-3.3-55-AT8
20
3.3
229
66
9
55
TAL-30.0-4.0-30-AT8
30
4
316
51
13
30

NOTE:

For the model NO.: AT7 for the mast with cable design we have done for our clients, if you need cable, cable size need customers provide.

AT8 for the mast without the cable and the lock

AT9 for the mast with the lock
