3m to 9m Aluminum Rapid Deploy CCTV Trailer Mast

Name: 3m to 9m Aluminum Rapid Deploy CCTV Trailer Mast
Brand: talents
Availability: InStock

FOB Price

US$ 300 - 900 / Set

1 Set(Min. Order)

Port Port of Tianjin China
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	talents		Place of Origin	Tianjin, China
Model Number	TAL-P3-P9

Product Description

Detailed Images

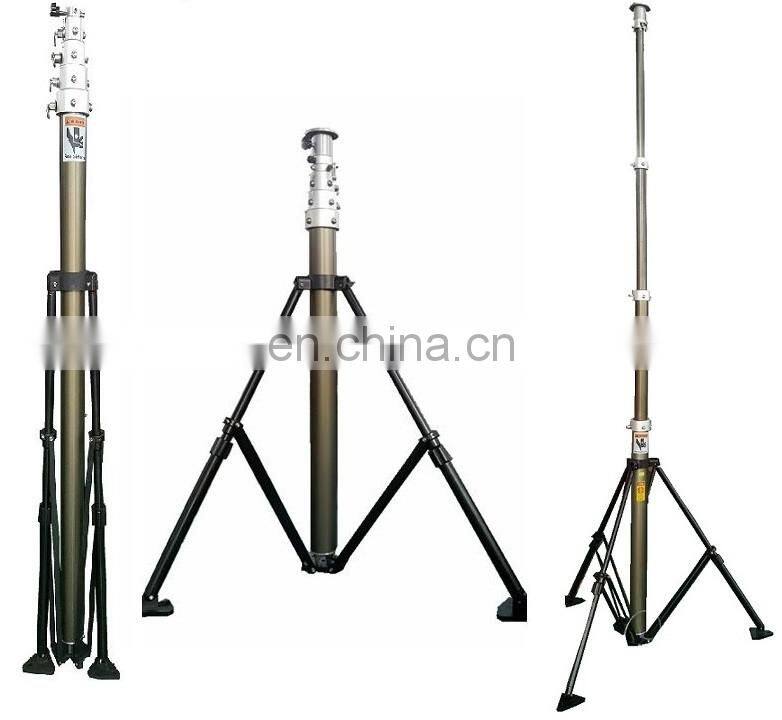

3m to 9m aluminum rapid deploy CCTV trailer mast

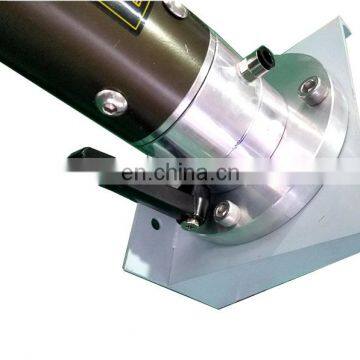

Bottom flange

mount the mast to filed or other base.
and bottom bracket with air inlet for air pipe connect with the air Compressor or foot/hand pump.

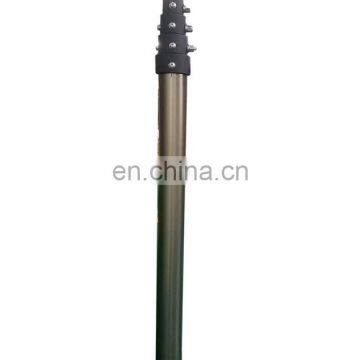

locking

Designed for long-term use. For preventing the mast slide down.

power cable

can be inside or outside of mast

Product Description

3m to 9m aluminum rapid deploy CCTV trailer mast

technical data
main spec.	1)Extended height: 9m 2)Retracted height: 2.4m 3)Outer diameter range:51-66-82-98-118mm 4)Thickness: 3-3-3.5-4-4mm 5)Maximum head loads: 30kgs 6)Number of sections: 5 sections 7)Wind load :100 km/h 8)Max Working pressure of air compressor:0.25MPA 9)Working temperature :-25 deg C to +60 deg C
Accessories	Car clamp--------------------------------------------------1 unit Ground anchor------------------------------------------8 pieces Guy wire----------------------------------------------------8 pieces Air pump---------------------------------------------------1 piece Tripod -----------------------------------------------------1 piece Top plate---------------------------------------------------1 piece
Material	Al-Mg alloy 6063
Color	bronze

accessories

model	unit
guy wire	1 set
ground anchor	1 set
air compressor or manual pump	1 unit
tripod or car clamp	1 unit
top plate	1 unit
bottom base	1 unit

more details as follows

Swift mast cover with the pulling wire rings Warning that the mast fully retracted. And protect the mast

Car Clamps for vehicle mounting mast.
Assist the pole to be fixed to a truck or car

The rings for fixing the pulling wire when mast without the tripod and no mounting fixed accessories

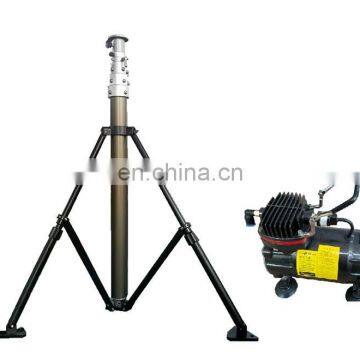

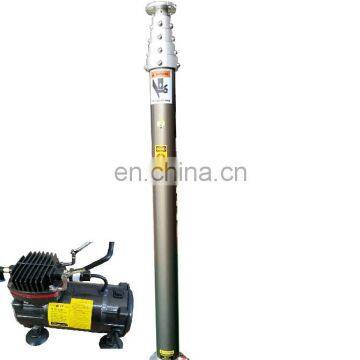

Control box:With the swift for up and down, small air compressor
Air pipe,Pressure gauge

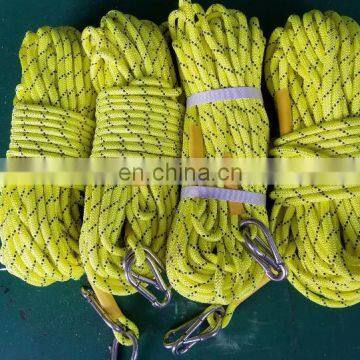

Basic guy accessories

manual hand pump

Packing & Delivery

3m to 9m aluminum rapid deploy CCTV trailer mast

package
carton packed	normal package is carton for the extended height less than 9m, weight less than 70kg mast, also can be plywood case at customers request
plywood packed	normal package is plywood case for extended height more than 10m, weight more than 70kg mast

After-sale service

Except the damages due to misuse,unauthorized modification and man-made sabotage,
the damaged of the telescopic mast will enjoyed free after-sales maintenance
within one year time from the date of delivery on the condition that the buyer
himself will bear the shipping cost back and forth and the said damage should be
confirmed by the seller through photos and description

Installation Instructions:
1.if mount mast on vehicle,just need car clamps to fix. If mount on ground,fix the base and tripod with stainless steel stakes,
2.Determine the mounting position of telescopic mast if manual and motorized mast hitting one ground anchor per 120 degrees. If pneumatic mast in 90 degree to fix the Guy rope.
3.Mount lifting handle bar to raise up manual mast. If pneumatic or motorized, use air compressors/foot pump and motor. But if motorized one, hand crank also work.

Maintenance
1.Waterproof and dust proof cover should be put into outdoor storage
2.If there is a situation that is not smooth or obvious noise during lifting mast,add lubricating
oil to make sure inner Mechanical parts work well. Suggest to add oil to the mast every 2-3 month.

it's better mobil 0W-20 oil
3.Regularly check the connection parts in normal condition.
4.Change seals easily on regular time can make mast in good using conditions after
using 10 thousand times.

air powered telescoping boom mast

Workshop

Our Service

we supply telescopic mast up to 35m,usually used as antenna mast,communication tower,light support,camera mast and so on,custom-made payload to 400kg,customized length,retracted,payload etc. accepted.

catalog of some common grade pneuamtic mast as follows

extended height (m)	No. of section	retracted height (m)	outer tube range (mm)	max. head loads(kg)	self weight (kg)
2	2	1.3	118-98	150	22
3	4	1.1	87-43	30	25
6	5	1.7	118-51	30	42
8	7	1.8	140-36	30	65
10	7	2.20	140-36	30	72
12	7	2.6	140-36	15	85
15	7	3.0	140-36	20	90
16	8	3	180-51	30	175
18	10	3	279-66	100	330
20	9	3.3	229-66	55	300
30	13	4	316-51	30	630

Welcome to contact

contact person: Ms.Grace Wang

Talents Enterprise Company Limited

T: 86 22 28376666 | F: 86 22 28376667 |
Skype:talents106

whatsapp:0086 18222428293

wechat: 1093812653

if you get interested in our telescopic mast, please contact us at any time for catalog and videos
