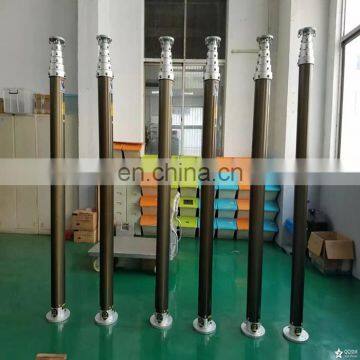

8m Portable Pneumatic Tripod Telescopic Lighting Mast

8m Portable Pneumatic Tripod Telescopic Lighting Mast thumbnail-1
8m Portable Pneumatic Tripod Telescopic Lighting Mast thumbnail-2
8m Portable Pneumatic Tripod Telescopic Lighting Mast thumbnail-3

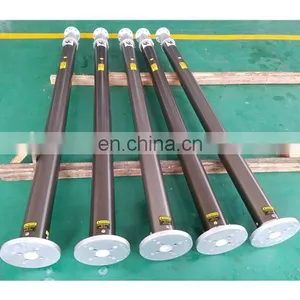

8m Portable Pneumatic Tripod Telescopic Lighting Mast thumbnail-4
8m Portable Pneumatic Tripod Telescopic Lighting Mast photo-1
8m Portable Pneumatic Tripod Telescopic Lighting Mast photo-2
8m Portable Pneumatic Tripod Telescopic Lighting Mast photo-3

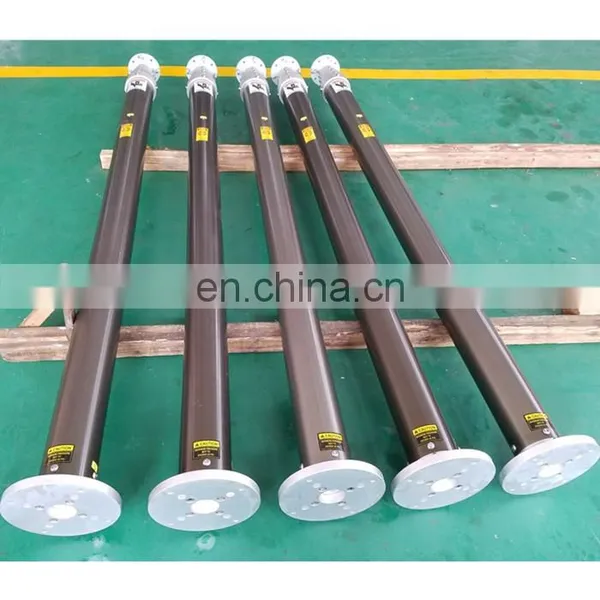

8m Portable Pneumatic Tripod Telescopic Lighting Mast photo-4
US$ 1,000 - 1,200 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
talents tripod telescopic mast
Place of Origin:
Tianjin, China
Model Number:
TAL-P-006
Contact Supplier Request Quote Chat Now
Dingzhou City Great Wall Daily Chemical Factory
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen China.
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name talents tripod telescopic mast
Place of Origin Tianjin, China
Model Number TAL-P-006
Product Description
                             8m portable pneumatic tripod telescopic lighting mast


Product property

Our product has the advantages of large load, low noise, fast

lifting, strong buffering performance, stable performance

and the like.

The application and prospect

The  pneumatic tripod telescopic lighting mast plays an important role in natural disasters, emergency rescue at night, and lightning at the Golf course and large football field.

Specifications
Closed length
1.8m
Extended length
8.0m
Payload
30kg
Number of sections
7
Max Working pressure
0.20MPA
Collar style
non-locking collar
Working Temperature
-15--+40C
Max outer diameter
140mm
Diameter of bottom plate
235mm
Diameter of top plate
130mm
Material
Main Pole: Aluminum magnesium alloy 6063B
Color
Light brown

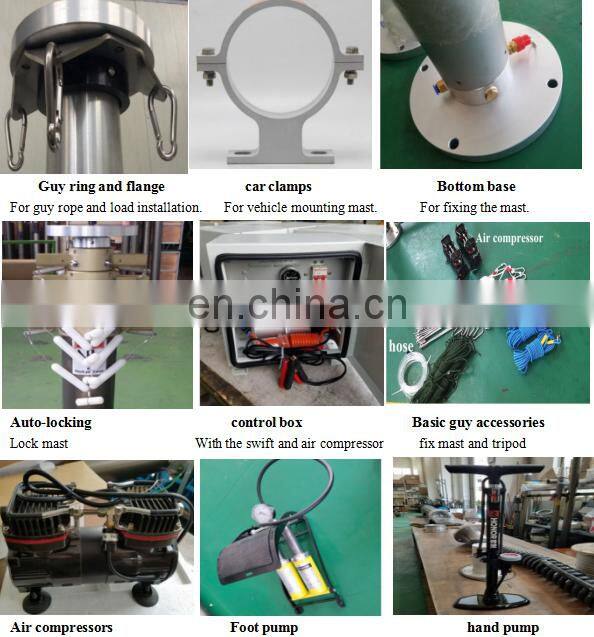

Detailed Images
Related Products
Extended length(m)
Retracted length(m)
Diameter range(mm)
Section number
Top loading
2.0
1.3
98-118
2
150
3.0
1.1
43-87
4
30
3.0
1.5
66-98
3
50
3.2
1.5
118-160
3
200
3.2
1.5
140-180
3
250
4.0
1.85
140-180
3
250
4.0
1.3
43-87
4
30
4.0
2.0
140-180
3
250
4.0
1.2
43-87
4
10
4.5
1.5
51-140
4
30
4.5
1.2
66-118
6
30
4.5
1.65
51-98
4
50
5.0
1.75
51-98
4
35
5.0
1.7
82-140
4
40
5.0
1.75
51-98
4
110
5.0
1.75
43-87
4
30
5.0
1.45
43-87
4
10
5.5
1.8
51-118
4
30
6.0
1.7
36-87
5
30
6.0
1.9
66-118
4
30
6.0
1.95
51-98
4
60
6.0
2.0
28-87
4
30
6.0
1.8
51-98
5
12
6.0
1.95
66-118
4
30
6.0
1.5
66-140
4
50
6.0
1.8
43-87
5
60
6.0
1.95
51-118
4
30
Extended length(m)
Retracted length(m)
Diameter range(mm)
Section number
Top loading
7.0
1.95
51-118
5
30
8.0
1.8
36-140
7
250
8.0
1.8
51-160
7
60
8.0
2.2
51-118
5
25
8.0
2.5
51-140
5
25
8.0
2.2
51-140
5
30
8.4
2.0
36-140
5
30
9.0
2.0
36-118
6
30
9.0
2.3
140-279
6
20
10.0
2.15
36-140
5
30
10.0
2.2
51-180
6
15
10.0
2.4
36-180
6
15
10.0
2.2
51-160
5
30
12.0
2.4
36-140
6
30
12.0
2.7
36-118
7
20
12.0
2.6
36-160
7
20
15.0
2.6
51-160
7
150
15.0
2.6
36-140
7
30
15.0
3.2
36-180
7
20
15.0
3.0
998-229
7
150
16.0
2.65
51-180
8
30
18.0
3.5
118-280
8
220
18.0
3.0
66-279
10
100
20.0
3.3
66-229
9
55
30.0
4.0
51-316
13
30
Our Company
Packing & Delivery

PACKING:

one unit of pneumatic tripod telescopic lighting mast (main pole and all accessories) to be filled with Polyurethane foam and then to be packed into a carton.


Warranty Period:

Except the damages due to misuse, unauthorized modification and man-made sabotage, the damaged parts will enjoyed free after-sales maintenance within one year's time from the date of delivery on the condition that the buyer himself will bear the shipping cost back and forth and the said damage should be confirmed by the seller through photos and description.

INSTALLATION INSTRUCTIONS

1)The  pneumatic tripod telescopic lighting mast can be installed on the ground, or on the vehicle. No matter where to install, its installation shall keep vertical with the ground.Tilted lifting rod will affect the rise and fall of itself, and if the telescopic antenna masttilts seriously or maintain a long time, damage and danger could not be avoided.

2)The pneumatic tripod telescopic lighting mast needs to be installed on a fixed object, without any shaking, such as walls, car body, or pile. At least two fixed points will be installed, and one point must be installed on the body of the rod. And the distance between two points should be longer than 2/3 of the height of rod. Its connection must be solid and reliable.
