Telescopic Hand Operated Lighting Tower for Vehicle Mounted and Tripod Installation

Telescopic Hand Operated Lighting Tower for Vehicle Mounted and Tripod Installation thumbnail-1
Telescopic Hand Operated Lighting Tower for Vehicle Mounted and Tripod Installation thumbnail-2
Telescopic Hand Operated Lighting Tower for Vehicle Mounted and Tripod Installation photo-1
Telescopic Hand Operated Lighting Tower for Vehicle Mounted and Tripod Installation photo-2
US$ 1,455 - 1,500 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
talents
Place of Origin:
Tianjin, China
Model Number:
TAL-P10-1.95-15
Contact Supplier Request Quote Chat Now
Dingzhou City Great Wall Daily Chemical Factory
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name talents
Place of Origin Tianjin, China
Model Number TAL-P10-1.95-15
Product Description

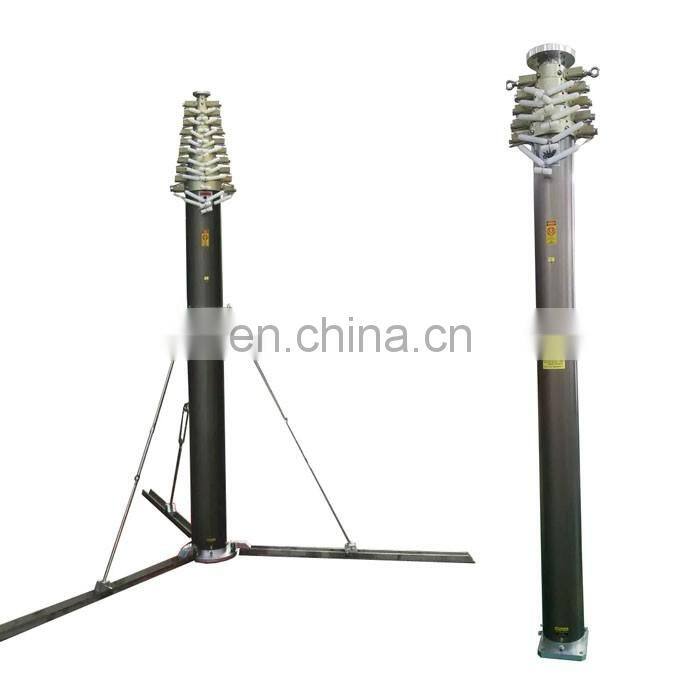

Telescopic hand operated lighting tower for vehicle mounted and tripod installation
Pneumatic telescopic mast

* Air compressor/foot pump/hand pump for lifting control.

* Provide convenient installation and use for communications, security, lighting...
* Portable, retractable, widely application

* Accept customerized request

* Specification range: extended height from 1m to 35m. max head-load from 5kg to 300kg...

* Based on different mount place, different accessories will be provided.

Detail

Telescopic hand operated lighting tower for vehicle mounted and tripod installation

Mast material is aluminum alloy 6063-T5

Tube surface treatment is Hard anodizing

Color:Bronze and origin silver color for choose.

Acessories for Telescopic hand operated lighting tower for vehicle mounted and tripod installation .

Operation steps

1.check the mast in good condition
2.fixed the mast on the ground. tripod fixed diameter is 3.4m,guy wire fixed diameter is 8m.
3.air inlet of control valve connect with air compressor.
4.air outlet of control valve connect wtih the mast.
5. once all mounted, you must keep the lifting control valve handle bar in middle location. (it make the air do not come into mast)
6.open the air compressor switch, at same time adjust the pessure regulating switch to reach 0.2MPa which the pressure gauge shows.
7.then pull up the lifting valve handle bar, mast will rise.
8.if you want to make the mast stop in some height, just make the handle bar in middle.

9. when lift down the mast, please pull down the lifting control valve handle bar..

Specification
Telescopic hand operated lighting tower for vehicle mounted and tripod installation
Model No.
TAL-P10.0-1.95-15
Extended height
10.0m
Retracted height
1.95m
Max head load
15kg
Sections Numbers
7 sections
each section tube OD& thickness
1# 140/5.0mm      2# 118/4.0mm
3#   98/4.0mm      4#    82/3.5mm
5#   66/3.0mm      6#    51/3.0mm
7#   36/3.0mm
Mast net weight
70kg( without  accessories)
Max wind load
100km/h ( with guy wire fixed)
Packing & Delivery



Telescopic hand operated lighting tower for vehicle mounted and tripod installation

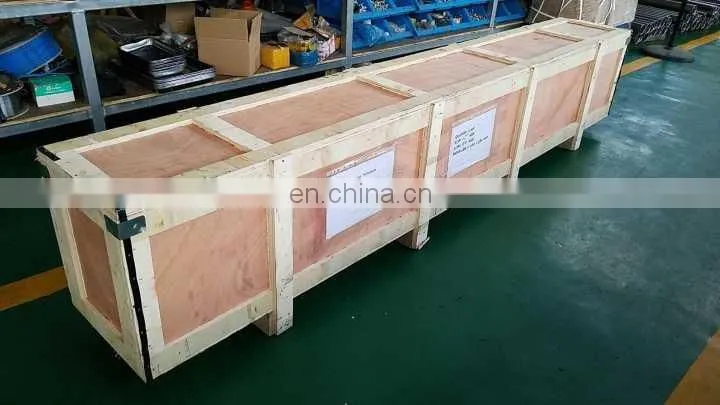

*one set mast with aceessories will be packed into a

  plywood case, inner space of case filled with the foam to

  protect the mast.
*Gross weight: around 160kg
*Package Meas: 210*40*50cm

Our Service

1.Reply inquiry within 24 hours by Alibaba, e-mail, whatsapp, wechat or Skype.
2.Based on clients' request, provide fittable design drawing and data sheet.
3.One year warranty after sale.
4.We have technicians to give use suggestions and solutions to problems in use.

Certifications
Other Specification
Pneumatic telescopic mast
MODEL No.
Extended
Height
(m)
Retracted
Height
(m)
Bottom
OD
(mm)
TOP
OD
(mm)
Section
NO.
Head-load
(KG)
TAL-2.0-1.3-150-AT8
2
1.3
118
98
2
150
TAL-3.0-1.5-50-AT8
3
1.5
98
66
3
50
TAL-4.0-1.3-20-AT8
4
1.3
87
43
4
20
TAL-4.5-1.65-50-AT9
4.5
1.65
118
66
4
50
TAL-5.0-1.7-40-AT8
5
1.7
98
51
4
40
TAL-5.0-1.75-30-AT9
5
1.75
98
51
4
30
TAL-6.0-1.7-30-AT8
6
1.7
118
51
5
30
TAL-6.0-1.75-12-AT8
6
1.75
87
28
5
12
TAL-6.0-2.0-50-AT9
6
2
118
66
4
50
TAL-6.0-1.95-30-AT8
6
1.95
87
43
4
30
TAL-6.0-1.5-25-AT9
6
1.5
118
51
5
25
TAL-7.0-1.95-40-AT8
7
1.95
118
51
5
40
TAL-8.0-1.8-50-AT9
8
1.8
160
51
7
50
TAL-8.0-2.2-60-AT7
8
2.2
140
66
5
60
TAL-8.0-2.0-25-AT8
8
2
118
36
6
25
TAL-9.0-2.15-30-AT8
9
2.15
140
51
6
30
TAL-10.0-2.4-30-AT7
10
2.4
140
51
6
30
TAL-12.0-2.7-250-AT8
12
2.7
279
140
7
250
TAL-15.0-3.5-150-AT9
15
3.5
229
98
6
150
TAL-16.0-3.0-30-AT8
16
3
180
51
8
30
TAL-18.0-3.0-100-AT8
18
3
279
66
10
100
TAL-20.0-3.3-55-AT8
20
3.3
229
66
9
55
TAL-30.0-4.0-30-AT8
30
4
316
51
13
30

NOTE:

above specification does not include all we can do.
