4m Locking Aluminum Lighting Mobile Pneumatic Telescopic Mast

4m Locking Aluminum Lighting Mobile Pneumatic Telescopic Mast thumbnail-1
4m Locking Aluminum Lighting Mobile Pneumatic Telescopic Mast thumbnail-2
4m Locking Aluminum Lighting Mobile Pneumatic Telescopic Mast thumbnail-3
4m Locking Aluminum Lighting Mobile Pneumatic Telescopic Mast thumbnail-4
4m Locking Aluminum Lighting Mobile Pneumatic Telescopic Mast photo-1

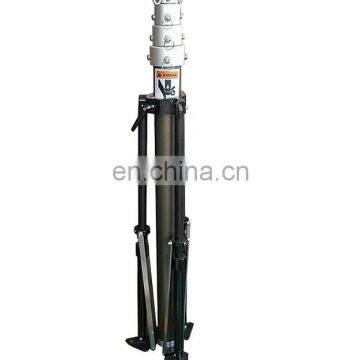

4m Locking Aluminum Lighting Mobile Pneumatic Telescopic Mast photo-2

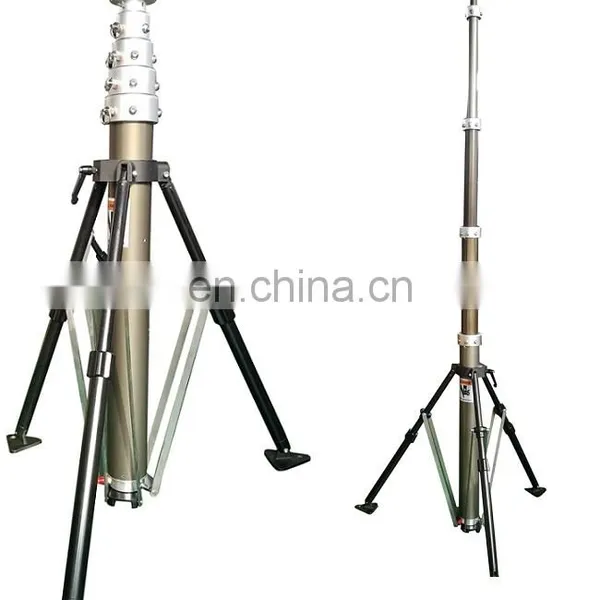

4m Locking Aluminum Lighting Mobile Pneumatic Telescopic Mast photo-3

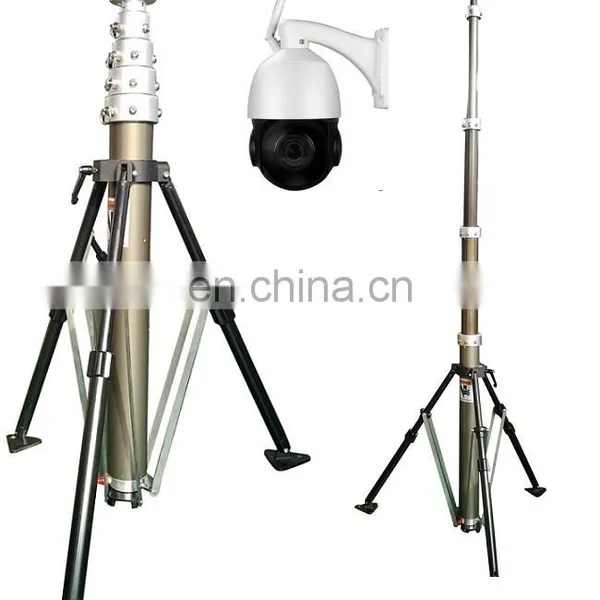

4m Locking Aluminum Lighting Mobile Pneumatic Telescopic Mast photo-4
US$ 259.9 - 345.99 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Talents
Place of Origin:
Tianjin, China
Model Number:
TAL-P4-1.4-30
Contact Supplier Request Quote Chat Now
Dingzhou City Great Wall Daily Chemical Factory
Payment & Shipping
Payment Methods:
Port of Shipment:
Port of Tianjin China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Talents
Place of Origin Tianjin, China
Model Number TAL-P4-1.4-30
Product Description

What is a Pneumatic Mast?

           Pneumatic masts are a type of elevation solution using compressed air to raise the central column to its extended height. The masts can either be locking, which each section locks into place once it reaches its maximum extension - designed for safety and long term use( do not lift down the mast), or non-locking where each section sits on cushion

of air- more appropriate for short time using.

Classification of masts

Model"AT8"---no cable and no lock, for Short time using and small head load.
Model"AT9"---with lock. for long time using and large head load.
Model"AT7"---with cable. for mounting camera, lights or antenna.

Common application

Telecommunications, Surveillance, Broadcasting, Disaster Recovery, Site Surveys, Energy Production,
Site Security...and so on.

Mast specification

Available Extended height:2m to 30m
Head load capacity:5kg to 500kg.


Lift operation choose
If no electricity and head load is not heavy, lift control could be foot pump or hand pump---manual lift.

If thers is electricity and head load is heavy, lift control should be air compressor, easily and quickly.

Data Sheet
Model
TAL-P4-1.4-30
extended height
4m
retracted height
1.4m
max. payload
30kg
No. of section
4
outer tube diameter
43-56-70-87mm
wind loading capaicty
110km/h with guy wires fixed
working air pressure
0.25Mpa
working temperature
-25 deg C to +60 deg C
accessories
DC12V/24V/AD220V/110V air compressor-------------------------------1pc
tripod or car clamp---------------------------------------------------------------------1pc
air hose--------------------------------------------------------------------------------------1pc
guy wires------------------------------------------------------------------------------------4pcs
ground anchors--------------------------------------------------------------------------4pcs
control valve-------------------------------------------------------------------------------1pc
top plate--------------------------------------------------------------------------------------1pc
bottom base---------------------------------------------------------------------------------1pc
Detail

4m locking aluminum lighting mobile pneumatic telescopic mast

Mast material is aluminum alloy 6063-T5

Tube surface treatment is Hard anodizing

Color:Bronze and origin silver color for choose.

Acessories

Operation steps

1.check the mast in good condition
2.fixed the mast on the ground. tripod fixed diameter is 3.4m,guy wire fixed diameter is 8m.
3.air inlet of control valve connect with air compressor.
4.air outlet of control valve connect wtih the mast.
5. once all mounted, you must keep the lifting control valve handle bar in middle location. (it make the air do not come into mast)
6.open the air compressor switch, at same time adjust the pessure regulating switch to reach 0.2MPa which the pressure gauge shows.
7.then pull up the lifting valve handle bar, mast will rise.
8.if you want to make the mast stop in some height, just make the handle bar in middle.

9. when lift down the mast, please pull down the lifting control valve handle bar..

Packing & Delivery

4m locking aluminum lighting mobile pneumatic telescopic mast

package
carton packed
normal package is carton for the extended height less than 9m, weight less than 70kg mast, also can be plywood case at customers request
plywood packed
normal package is plywood case for extended height more than 10m, weight more than
70kg mast
Certifications
Catalog
Pneumatic telescopic mast
MODEL No.
Extended
Height
(m)
Retracted
Height
(m)
Bottom
OD
(mm)
TOP
OD
(mm)
Section
NO.
Head-load
(KG)
TAL-2.0-1.3-150-AT8
2
1.3
118
98
2
150
TAL-3.0-1.5-50-AT8
3
1.5
98
66
3
50
TAL-4.0-1.3-20-AT8
4
1.3
87
43
4
20
TAL-4.5-1.65-50-AT9
4.5
1.65
118
66
4
50
TAL-5.0-1.7-40-AT8
5
1.7
98
51
4
40
TAL-5.0-1.75-30-AT9
5
1.75
98
51
4
30
TAL-6.0-1.7-30-AT8
6
1.7
118
51
5
30
TAL-6.0-1.75-12-AT8
6
1.75
87
28
5
12
TAL-6.0-2.0-50-AT9
6
2
118
66
4
50
TAL-6.0-1.95-30-AT8
6
1.95
87
43
4
30
TAL-6.0-1.5-25-AT9
6
1.5
118
51
5
25
TAL-7.0-1.95-40-AT8
7
1.95
118
51
5
40
TAL-8.0-1.8-50-AT9
8
1.8
160
51
7
50
TAL-8.0-2.2-60-AT7
8
2.2
140
66
5
60
TAL-8.0-2.0-25-AT8
8
2
118
36
6
25
TAL-9.0-2.15-30-AT8
9
2.15
140
51
6
30
TAL-10.0-2.4-30-AT7
10
2.4
140
51
6
30
TAL-12.0-2.7-250-AT8
12
2.7
279
140
7
250
TAL-15.0-3.5-150-AT9
15
3.5
229
98
6
150
TAL-16.0-3.0-30-AT8
16
3
180
51
8
30
TAL-18.0-3.0-100-AT8
18
3
279
66
10
100
TAL-20.0-3.3-55-AT8
20
3.3
229
66
9
55
TAL-30.0-4.0-30-AT8
30
4
316
51
13
30

NOTE:

above specification are standard model, customized size accepted

Our Service

OEM/ODM service available for the buyers
1 year free after-sale warranty after delivery
Professional team for consulation, solution and designing
Complete quality control system before delivery
Multi-way fast delivery channel at buyer's option

Welcome to contact

Company profile

About"Talents"
      Talents is a Chinese company that design, manufacture and supply a range of manual/electric/pneumatic/hydraulic operated telescopic masts and lifting devices that made of aluminum alloy tube, stainless steel tube, fiberglass tube and carbon fiber tube.

      Our masts are CE certified, we have been a golden supplier on Alibaba since 2007, we are keeping with our customers an one for one timely information feedback, we have organized an expert team for quality control and inspection system, we have built up Multi-way fast delivery channels and we are supplying one year free after-sale warranty to the buyer.

     We think outside the box and are continually developing new products to meet customer requirements, what you are asking for is our motive power of task, we wish one of our products will well-meet what you demand.

Any questions or inquiry, welcome to contact us at any time

Reply the inquiry by email within 24 hours
