Special electro-mechanical telescopic mast for Robot or UGV

Name: Special electro-mechanical telescopic mast for Robot or UGV
Brand: Talents
Price: USD $600 - 900 / Unit

FOB Price

USD $600 - $900 / Unit

1 Unit(Min.Order)

Supply Ability 200 Unit / Units per Month
Port China main port
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:

Talents

Place of Origin:

Tianjin, China

Model Number:

09-TA-TEM6

Product Description

Special electro-mechanical telescopic mast for Robot or UGV

model	telescopic poles
exteneded length	6m
closed length	1.5m
payload	100kg
OD	top 50-130mm
material	aluminum alloy
accessories	guy wire,ground anchor,handle bar
No. of section	8

we supply telescopic mast up to 35m,it can bear payload
not less than 10kg,usually used as antenna mast,communication tower,
light support,camera mast and so on
A.it can be adjusted to any length
B.it can be mounted on the vehicle or stand on the ground with tripod
C.high strenght can bear large payload
besides,there are 3 designs for choice
A.handlifting telescopic mast
B.electric lifting&hand lifting telescopic mast
C.pneumatic telescopic mast
material:usually aluminum alloy

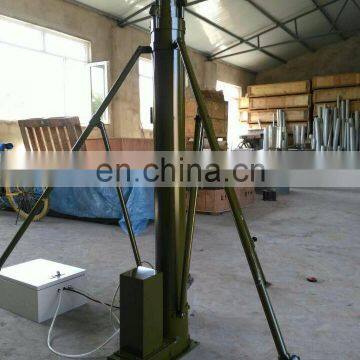

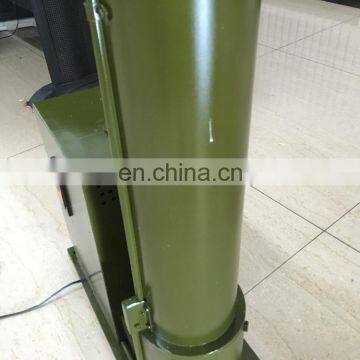

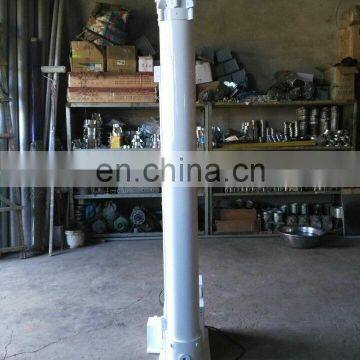

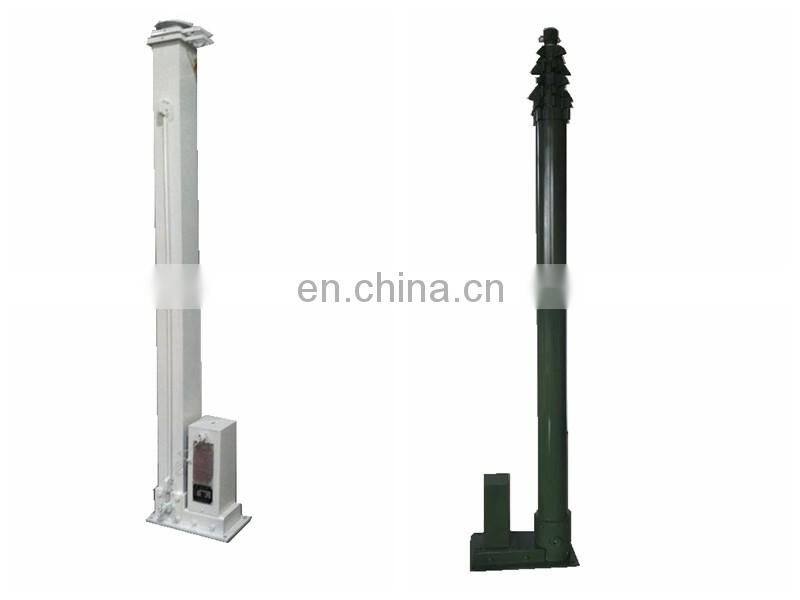

Detailed Images

Special electro-mechanical telescopic mast for Robot or UGV

accessories

model	unit
pulling cord box	3 units
ground anchor	3 units
handle bar	1 unit
tripod or car clamp	1 unit
top plate	1 unit
bottom base	1 unit
control box	1 unit

Packing & Delivery

Special electro-mechanical telescopic mast for Robot or UGV

After-sale service

Except the damages due to misuse,unauthorized modification and man-made sabotage,
the damaged of the telescopic mast will enjoyed free after-sales maintenance
within one year time from the date of delivery on the condition that the buyer
himself will bear the shipping cost back and forth and the said damage should be
confirmed by the seller through photos and description

Installation Instructions:
1）the manual mast can be installed on the ground, or on the vehicle. No matter where to install, its installation shall keep vertical with the ground.Tilted telescopic antenna mast will affect the rise and fall of itself, and if the lifting rod tilts seriously or maintain a long time, damage and danger could not be avoided.

2）the manual mast needs to be installed on a fixed object, without any shaking, such as walls, car body, or pile. At least two fixed points will be installed, and one point must be installed on the body of the telescopic antenna mast. And the distance between two points should be longer than 2/3 of the height of telescopic antenna mast. Its connection must be solid and reliable.

Workshop

Our Service

we supply telescopic mast up to 35m,usually used as antenna mast,communication tower,light support,camera mast and so on,custom-made payload to 400kg,customized length,retracted,payload etc. accepted.

catalog of some common grade pneuamtic mast as follows

extended height (m)	No. of section	retracted height (m)	outer tube range (mm)	max. head loads(kg)	self weight (kg)
2	2	1.3	118-98	150	22
3	4	1.1	87-43	30	25
6	5	1.7	118-51	30	42
8	7	1.8	140-36	30	65
10	7	2.20	140-36	30	72
12	7	2.6	140-36	15	85
15	7	3.0	140-36	20	90
16	8	3	180-51	30	175
18	10	3	279-66	100	330
20	9	3.3	229-66	55	300
30	13	4	316-51	30	630
