18m High Electric Telescopic Mast for Weather Equipment Lightning Conductor

Name: 18m High Electric Telescopic Mast for Weather Equipment Lightning Conductor
Brand: Talents
Availability: InStock

FOB Price

US$ 4,100 - 4,300 / Unit

1 Unit(Min. Order)

Port China main port
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Talents		Place of Origin	Tianjin, China
Model Number	09-Tal-mast

Product Description

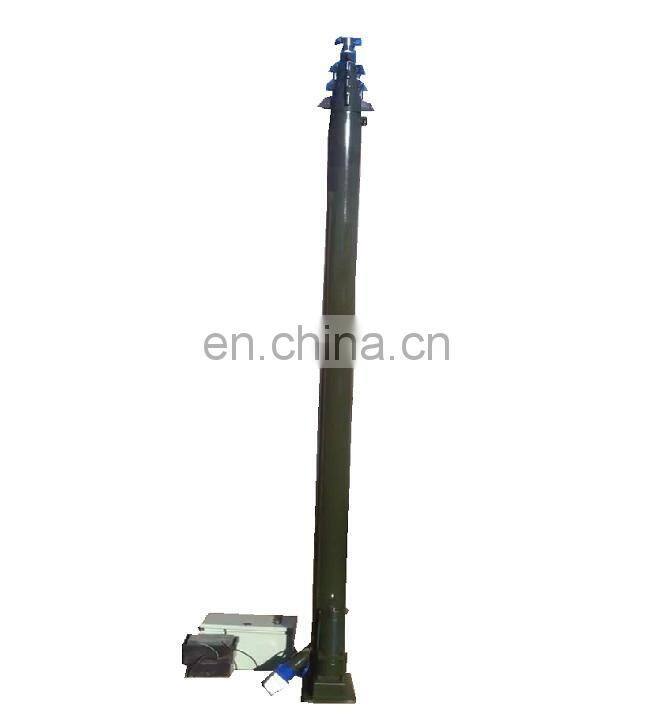

18m high electric telescopic mast for Weather Equipment lightning conductor

technical data
main spec.	Closed length:3m (Bottom base included) Extended length: 18m (Bottom base included) Self weight:around 89kg Max loading:10kg Temperature: working temp:-40--+50C Storage Temp:-55--+70C
main pole in sections	Section No. OD Thickness 1#： 50mm 2mm 2#： 60mm 2mm 3#： 70mm 2mm 4#： 80mm 2mm 5#： 90mm 2mm 6#： 105mm 2.5mm 7#： 130mm 3mm 8#： 150mm 4mm
Bottom base	lengthwidth:450210mm Thickness: 10mm
Accessories	Motor: (AC220v 300w)---------------------------------1 piece Handle lifting bar----------------------------------------1 piece Electrical equipment control box---------------------1 unit Remote-controller----------------------------------------2 pieces
Material	Main Pole: aluminum alloy Bottom base and accessories(except the stakes): iron steel Pulling cord: stainless steel wire(OD:2mm)
Color	the whole unit will be in army green when closed, but when extended, the main pole will be in origin color of aluminum alloy only with top 4cm of each pole section in army green color.Technology: painting

Detailed Images

18m high electric telescopic mast for Weather Equipment lightning conductor

accessories

model	unit
pulling cord box	3 units
ground anchor	3 units
handle bar	1 unit
tripod or car clamp	1 unit
top plate	1 unit
bottom base	1 unit
control box	1 unit

Packing & Delivery

18m high electric telescopic mast for Weather Equipment lightning conductor

Packing details
C/NO.	DESCRIPTION	QTY (UNIT)	N.W. (KG)	G.W. (KG)	MEAS (CM)
1	Pole and Motor Unit: ------1 piece Pulling cord box ------------3 units Handle bars-----------------3 pieces Ground anchor------------3 pieces Handle lifting bar-----------1 piece	1	130.00	182.00	3284830

Our Service

we supply telescopic mast up to 35m,usually used as antenna mast,communication tower,light support,camera mast and so on,custom-made payload to 400kg,customized length,retracted,payload etc. accepted.

catalog of some common grade motorized mast as follows-

extended height (m)	No. of section	retracted height (m)	outer tube range (mm)	self weight (kg)
4	3	1.6	60-80	34
5	4	1.65	50-80	38
6	5	1.7	50-90	42
8	6	1.8	40-90	54
10	7	1.95	30-90	58
12	7	2.2	30-90	65
15	8	2.45	30-105	78
18	9	2.7	30-130	102
20	9	2.95	30-130	110
22	9	3.15	30-130	130
25	10	3.4	30-150	154
30	10	3.85	30-150	170

After-sale service

Except the damages due to misuse,unauthorized modification and man-made sabotage,
the damaged of the telescopic mast will enjoyed free after-sales maintenance
within one year time from the date of delivery on the condition that the buyer
himself will bear the shipping cost back and forth and the said damage should be
confirmed by the seller through photos and description

Installation Instructions:
1）the mast can be installed on the ground, or on the vehicle. No matter where to install, its installation shall keep vertical with the ground.Tilted telescopic mast will affect the rise and fall of itself, and if the lifting rod tilts seriously or maintain a long time, damage and danger could not be avoided.

2）the mast needs to be installed on a fixed object, without any shaking, such as walls, car body, or pile. At least two fixed points will be installed, and one point must be installed on the body of the telescopic antenna mast. And the distance between two points should be longer than 2/3 of the height of telescopic mast. Its connection must be solid and reliable.
