4-18meter Motorized Telescopic Winch Hand Mast for Antenna Mobile

Name: 4-18meter Motorized Telescopic Winch Hand Mast for Antenna Mobile
Brand: Talents
Availability: InStock

FOB Price

US$ 500 - 1,000 / Unit

1 Unit(Min. Order)

Port China main port
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name

Talents

Model Number

06-Tal-mast 4-18

Product Description

model	motorized and winch telescopic mast
exteneded length	4-18m
closed length	1.6-2.7m
payload	no less than 30kg
OD	top 90-130mm
material	aluminum alloy
accessories	guy wire,ground anchor,handle bar
No. of section	3-9

we supply telescopic mast up to 35m,it can bear payload
not less than 10kg,usually used as antenna mast,communication tower,
light support,camera mast and so on
A.it can be adjusted to any length
B.it can be mounted on the vehicle or stand on the ground with tripod
C.high strenght can bear large payload
besides,there are 3 designs for choice
A.handlifting telescopic mast
B.electric lifting&hand lifting telescopic mast
C.pneumatic telescopic mast
material:usually aluminum alloy

accessories

Motor: (AC220V 250W)-------------------------------1 set
Pulling cord box with handle bars-------------------3 units
Ground anchor-------------------------------------------3 pieces
Handle lifting bar----------------------------------------1 piece
Electrical equipment control box---------------------1 unit
Remote-controller ---------------------------------------2 pieces
Clamp-------------------------------------------------------1 unit

Detailed Images

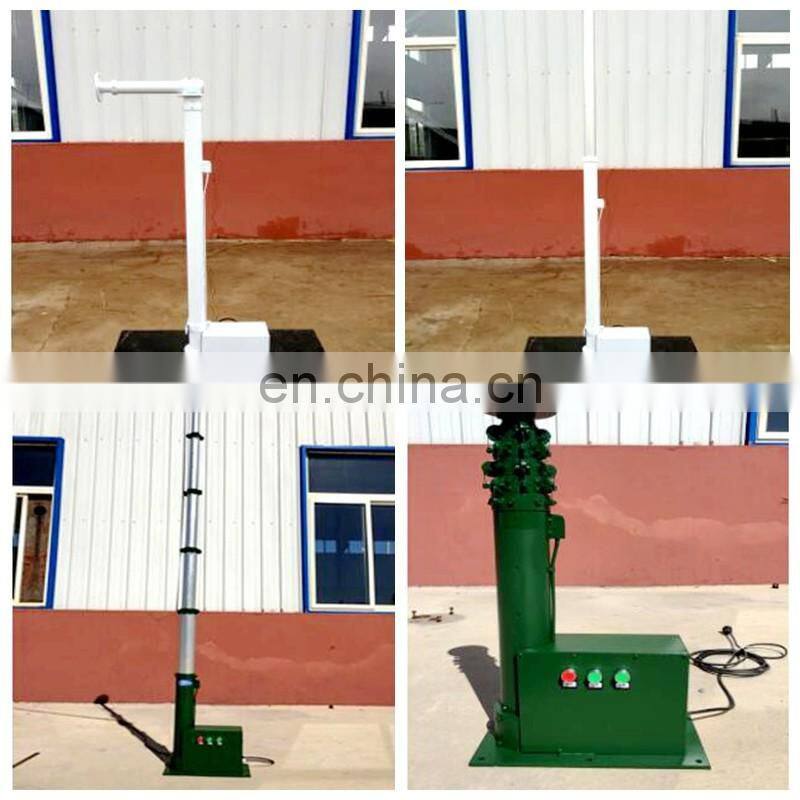

4-18meter motorized telescopic winch hand mast for antenna mobile

Motor and remote controller

The remote controller can control lifting remotely

Hand winch

It can be operated manually by using a hand winch

Bottom plate

Packing & Delivery

4-18meter motorized telescopic winch hand mast for antenna mobile

Packing details
C/NO.	DESCRIPTION	QTY (UNIT)	N.W. (KG)	G.W. (KG)	MEAS (CM)
1	Pole : ------------------1 unit accessories---------1 set	1	50.00	70.00	2303040

After-sale service

Except the damages due to misuse,unauthorized modification and man-made sabotage,
the damaged of the telescopic mast will enjoyed free after-sales maintenance
within one year time from the date of delivery on the condition that the buyer
himself will bear the shipping cost back and forth and the said damage should be
confirmed by the seller through photos and description

Installation Instructions:
1.if mount mast on vehicle,just need car clamps to fix. If mount on ground,fix the base and tripod with stainless steel stakes,
2.Determine the mounting position of telescopic mast if manual and motorized mast hitting one ground anchor per 120 degrees. If pneumatic mast in 90 degree to fix the Guy rope.
3.Mount lifting handle bar to raise up manual mast. If pneumatic or motorized, use air compressors/foot pump and motor. But if motorized one, hand crank also work.

Maintenance
1.Waterproof and dust proof cover should be put into outdoor storage
2.If there is a situation that is not smooth or obvious noise during lifting mast,add lubricating
oil to make sure inner Mechanical parts work well. Suggest to add oil to the mast every 2-3 month.

it’s better mobil 0W-20 oil
3.Regularly check the connection parts in normal condition.
4.Change seals easily on regular time can make mast in good using conditions after
using 10 thousand times.

Workshop

Our Service

we supply telescopic mast up to 35m,usually used as antenna mast,communication tower,light support,camera mast and so on,custom-made payload to 400kg,customized length,retracted,payload etc. accepted.

catalog of some common grade motorized mast as follows

extended height (m)	No. of section	retracted height (m)	outer tube range (mm)	self weight (kg)
4	3	1.6	60-80	34
5	4	1.65	50-80	38
6	5	1.7	50-90	42
8	6	1.8	40-90	54
10	7	1.95	30-90	58
12	7	2.2	30-90	65
15	8	2.45	30-105	78
18	9	2.7	30-130	102
20	9	2.95	30-130	110
22	9	3.15	30-130	130
25	10	3.4	30-150	154
30	10	3.85	30-150	170

Welcome to contact

contact person: Ms.Grace Wang

Talents Enterprise Company Limited

T: 86 22 28376666 | F: 86 22 28376667 |
Skype:talents106

whatsapp:0086 18222428293
