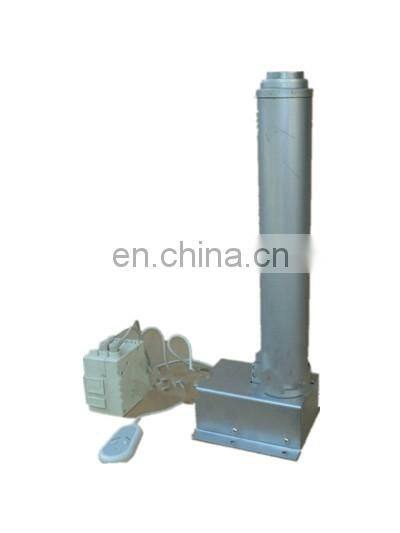

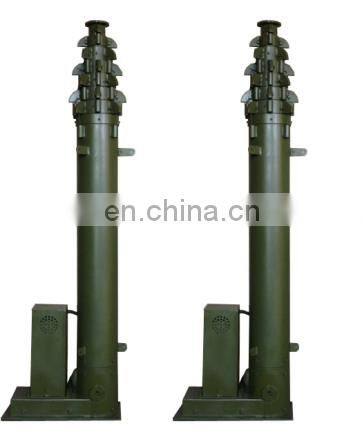

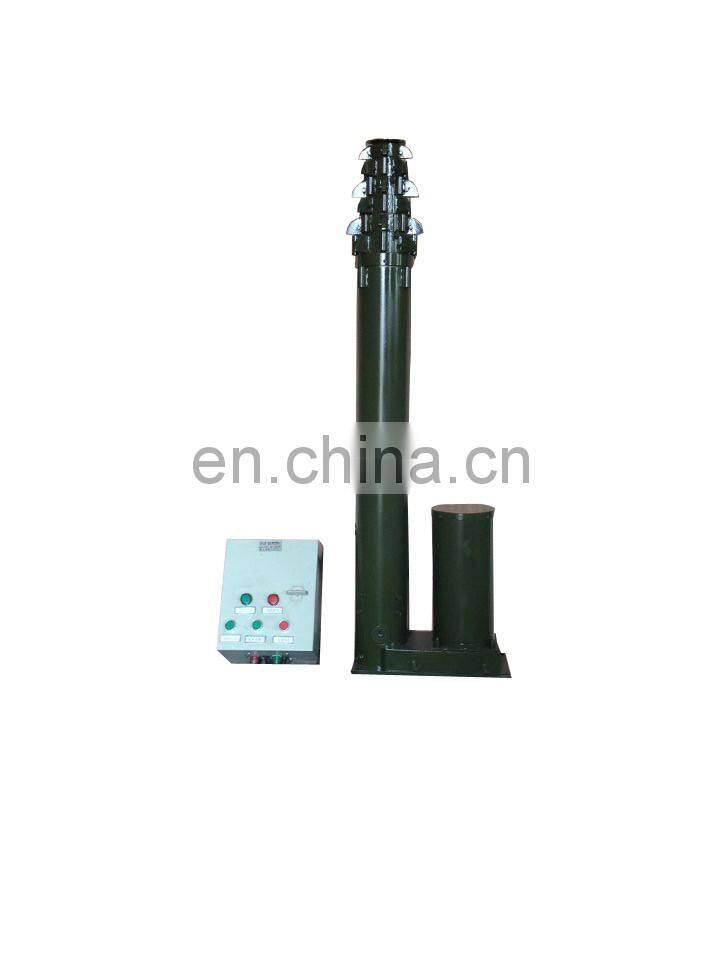

15m communication motorized aluminum telescopic antenna tower
Overview
The telescopic antenna tower can be used on the ground or on the vehicle. With two kinds of lifting mode,electric and manual, it possesses many advantages.the unique technology has made our products directed better, lifting faster, operated easier and safer than ever before.
Material:
Main Pole: aluminum alloy
Bottom base and accessories
(except the stakes): iron steel
Pulling cord: galvanized steel wire
(OD:2mm)
Color:
painting into any color,
Depends on final buyer's confirmation
Note:
Power connecting method:original
plug-without wire
Accessories of motorized telescopic antenna tower
Motor: (DC 12V)-----------------------------------------1 piece
Ground anchor-------------------------------------------3 pieces
Electrical equipment control box---------------------1 unit
Remote-controller----------------------------------------2 pieces
Tripod------------------------------------------------------1 unit
Remote-controller
Control box
Control box
Specifications
Closed length:
2.4m (Bottom base included)
Extended length:
15m (Bottom base included)
Wind load:
working rate:25m/s Max rate:35m/s
Temperature: working temp:-40--+50C
Storage Temp:-55--+70C
Bottom plate:
Length:400mm
width:190mm Thickness: 10mm
Bottom base tube:
140mm 5.0mm 130mm
PACKING:
Each unit of telescopic antenna tower (main pole and all accessories)to be wrapped with Poly tapes and then into a wooden case. The Control box to be packed into a separate wooden case.
Installation Instructions:
1)The telescopic antenna tower can be installed on the ground, or on the vehicle. No matter where to install, its installation shall keep vertical with the ground.Tilted telescopic antenna mast will affect the rise and fall of itself, and if the lifting rod tilts seriously or maintain a long time, damage and danger could not be avoided.
2)The telescopic antenna tower needs to be installed on a fixed object, without any shaking, such as walls, car body, or pile. At least two fixed points will be installed, and one point must be installed on the body of the telescopic antenna mast. And the distance between two points should be longer than 2/3 of the height of telescopic antenna mast. Its connection must be solid and reliable.
warranty period
Except the damages due to misuse, unauthorized modification and man-made sabotage, the damaged parts will enjoyed free after-sales maintenance within one year's time from the date of delivery on the condition that the buyer himself will bear the
shipping cost back and forth and the said damage should be confirmed by the seller through photos and description.
