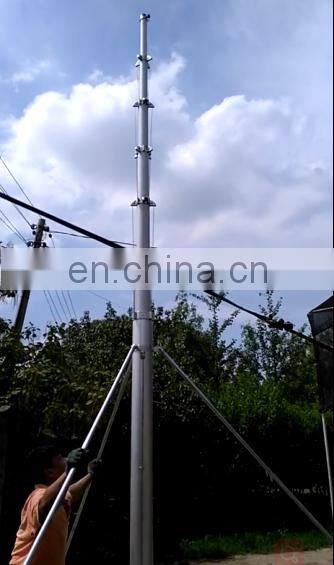

22m electric CCTV lighting mast tower telescoping tv antenna mast electric telescopic lifting rod
22m electric CCTV lighting mast tower telescoping tv antenna mast electric telescopic lifting rod
Basic specifications
| Product name | 22m electric CCTV lighting mast tower telescoping tv antenna mast electric telescopic lifting rod |
| Closed length | 3.25m (Bottom base included) |
| Extended length | 22.0m (Bottom base included) |
| Max.payload | 15kgs |
| Lifting method | motorized lifting |
| OD | 30-130mm |
| Material | aluminum alloy |
| Section | 9 |
Detailed information
(1) Main pole in 9 sections:
Section No. OD Thickness Length
1# 30mm 2.0mm 2.3mm
2# 40mm 2.0mm 2.3mm
3# 50mm 2.0mm 2.3mm
4# 60mm 2.0mm 2.3mm
5# 70mm 2.0mm 2.3mm
6# 80mm 2.0mm 2.3mm
7# 90mm 2.0mm 2.3mm
8# 105mm 2.5mm 2.3mm
9# 130mm 4.0mm 2.3mm
(2) Other parts of the mast body
Top plate Thickness: 8 mm Diameter:180 mm Screw:4pcs of dia.10mm
Bottom base(include motor): size:220*550mm
(3)Accessories
Motor: (AC220V 550W)------------------------------- 1 set
Pulling cord box with handle bars-------------------3 units
Ground anchor------------------------------------------- 3 pieces
Handle lifting bar---------------------------------------- 1 piece
Remote-controller --------------------------------------2 pieces
Tripod-------------------------------------------------------1 unit
Material:
Main Pole: Section 1-7 aluminum 2A12T4, section 8-9 aluminum 6063
Bottom base and accessories (except the ground anchor): iron steel
Ground anchor:galv stainless steel
Pulling cord: stainless steel wire(OD:2mm)
Color: the whole unit will be in silver when closed, but when extended, the main pole will be in origin color of aluminum alloy only with top 4cm of each pole section in silver color
Color Technology: painting
Accessories
1.Pulling cord
3.Control box
4.Handle lifting bar for lifting the mast
5. Handle bar for Pulling cord box
One unit of 18m high lighting mast to be wrapped with Poly tapes then to be packed into a plywood case
Specification table of masts
No. |
Model |
Closed Length |
Extended Length |
OD |
Section |
Payload |
002 |
TAL-2M-30 |
1.0m |
2m |
40mm~60mm |
3 |
30kg |
002 |
TAL-2M-30 |
0.75m |
2m |
40mm~90mm |
6 |
20kg |
002 |
TAL-2M-100 |
1.2m |
2m |
105mm~130mm |
2 |
100kg |
003 |
TAL-3M-250 |
1.75m |
3m |
90mm~130mm |
3 |
250kg |
004 |
TAL-4M-250 |
1.8m |
4m |
90mm~130mm |
3 |
250kg |
004 |
TAL-4M-10 |
1.55m |
4m |
40mm~80mm |
4 |
10kg |
004 |
TAL-4M-50 |
1.2m |
4m |
60mm~130mm |
6 |
50kg |
005 |
TAL-5M-150 |
1.4m |
5m |
60mm~160mm |
6 |
150kg |
005 |
TAL-5M-600 |
1.6m |
5m |
60mm~150mm |
5 |
600kg |
006 |
TAL-6M-10 |
1.7m |
6m |
40mm~90mm |
6 |
10kg |
006 |
TAL-6M-50 |
1.7m |
6m |
50mm~105mm |
6 |
50kg |
008 |
TAL-8M-30 |
2.2m |
8m |
40mm~105mm |
6 |
30kg |
010 |
TAL-10M-30 |
2.45m |
10m |
40mm~105mm |
7 |
30kg |
012 |
TAL-12M-200 |
2.45m |
12m |
70mm~160mm |
7 |
200kg |
012 |
TAL-12M-35 |
2.3m |
12m |
40mm~130mm |
7 |
35kg |
012 |
TAL-12M-100 |
2.7m |
12m |
50mm~130mm |
7 |
100kg |
012 |
TAL-12M-20 |
2.4m |
12m |
40mm~150mm |
7 |
20kg |
015 |
TAL-15M-20 |
2.8m |
15m |
40mm~105mm |
7 |
20kg |
015 |
TAL-15M-30 |
2.8m |
15m |
50mm~130mm |
7 |
30kg |
015 |
TAL-15M-300 |
2.7m |
15m |
60mm~155mm |
7 |
300kg |
020 |
TAL-20M-200 |
3.7m |
20m |
70mm~230mm |
7 |
200kg |
025 |
TAL-25M-80 |
3.4m |
25m |
60mm~230mm |
10 |
80kg |
025 |
TAL-25M-60 |
3.4m |
25m |
60mm~210mm |
10 |
60kg |
028 |
TAL-28M-15 |
3.7m |
28.5m |
30mm~130mm |
10 |
15kg |
035 |
TAL-35M-10 |
3.9m |
35m |
30mm~180mm |
11 |
10kg |
Installation

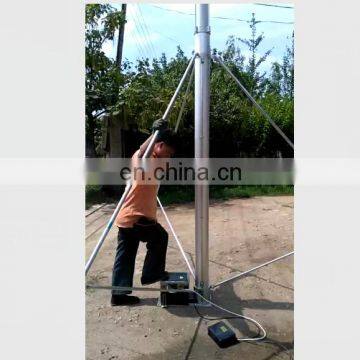

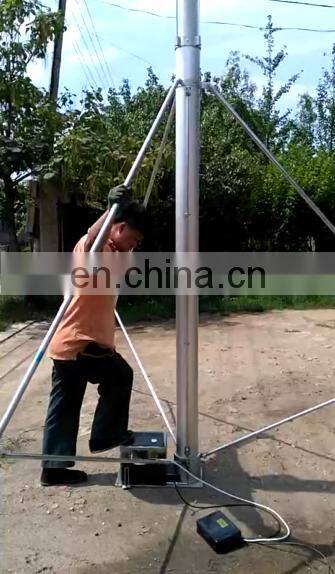

A. Fixed mode: achieved by tripod; vehicle mode: fixed by car clamps
B. The telescopic mast should be mounted on a flat and solid foundation. If the mast is tilted or tilted for a long time, its speed will be affected and it will cause damage to the mast itself.
C. The top load of mast should not exceed its conventional bearing so as not to tilt or damage the mast
D. Telescopic mast above 10m or less than 10m (including 10m) carrying more than 5kg must be fitted with pulling cords.
E. And the mast need be fitted with pulling cords when the wind speed exceeds 14m/s.
F. Method for erecting a mast with pulling cord (take a three layer pulling cord mounted on the ground as an example):
a. The telescopic mast should be vertically fixed on the horizontal base.
b. The position selection of ground anchors. The distance between ground anchor and the bottom center of mast is greater than 2/3 of the height of the mast, and nails shall be driven into ground every 120 degrees.
