15m Aluminum Mobile Motorized Antenna Telescopic Mast

FOB Price

US$ 2,150 - 2,184 / Unit

1 Unit(Min. Order)

Port Xingang port China
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Talents motorized mast		Place of Origin	Tianjin, China
Model Number	TAL-E15-2.4-20

Product Description

15m aluminum mobile motorized antenna telescopic mast

technical data
main spec.	Closed length:2.4m (Bottom base included) Extended length: 15m (Bottom base included) Max. payload: 20kg Temperature: working temp:-40--+50C Storage Temp:-55--+70C
main pole in sections	Section No. OD Thickness 1# 42mm 3.0mm 2# 55mm 3.0mm 3# 69mm 3.0mm 4# 83mm 3.0mm 5# 98mm 3.0mm 6# 114mm 3.0mm 7# 132mm 3.0mm 8# 148mm 3.0mm
Bottom base	lengthwidth:620220mm Thickness: 12mm
Accessories	Motor: (AC220v 300w)---------------------------------1 piece Handle lifting bar----------------------------------------1 piece Electrical equipment control box---------------------1 unit Remote-controller----------------------------------------2 pieces
Material	Main Pole: aluminum alloy Bottom base and accessories(except the stakes): iron steel Pulling cord: stainless steel wire(OD:2mm)
Color	the whole unit will be in army green when closed, but when extended, the main pole will be in origin color of aluminum alloy only with top 4cm of each pole section in army green color.Technology: painting

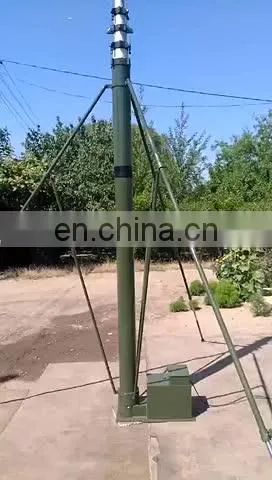

Product picture

15m aluminum mobile motorized antenna telescopic mast

Accessories example

15m aluminum mobile motorized antenna telescopic mast

Packing & Delivery

package
plywood packed	one set mast with accessories wrapped by polyester tapes, then packed into a plywood case

Catalog

we supply telescopic mast up to 35m,usually used as antenna mast,communication tower,light support,camera mast and so on,custom-made payload to 400kg,customized length,retracted,payload etc. accepted.

catalog of some common grade motorized mast as follows

extended height (m)	No. of section	retracted height (m)	outer tube range (mm)	self weight (kg)
4	3	1.6	60-80	34
5	4	1.65	50-80	38
6	5	1.7	50-90	42
8	6	1.8	40-90	54
10	7	1.95	30-90	58
12	7	2.2	30-90	65
15	8	2.45	30-105	78
18	9	2.7	30-130	102
20	9	2.95	30-130	110
22	9	3.15	30-130	130
25	10	3.4	30-150	154
30	10	3.85	30-150	170

About us

1. we develop and manufacture telescopic masts,

material is aluminum allo or steel,for nearly unlimited

applications, it's used in radio facilities,for monitoring and illumination systems in public works and military

installations, for radio amateurs, in metrology and other

fields. In addition, we are able to offer special solutions for non-standard applications.

2.especially our motorized mast has same advantages as

manual telescopic mast, it can be operated electrically

or manually, and it can be self-locking at any position.

Our Service

OEM/ODM service available for the buyers
Professional team for consulation, solution and designing
Complete quality control system before delivery
Multi-way fast delivery channel at buyer's option

One year free after-sale warranty after delivery

Our Company

Talents is a Chinese company that design, manufacture and supply a range of manual/electric/pneumatic/hydraulic operated telescopic masts and lifting devices that made of aluminum alloy tube, stainless steel tube, fiberglass tube and carbon fiber tube.

Talents was founded in 1995, since then we focus on offering customers high quality, durable, applied and economic masts. 23 years of our specialized knowledge and experience of the telescopic mast technology allows us to effectively supply the solutions and designing for the OEM/ODM and after-sale services of the mast to meet our customer's needs, whilst ensuring that we are achieving maximum efficiency and output at the same time. We are serving our long-term customers from the five Continents and the four Oceans

Our masts are CE certified, we have been a golden supplier on Alibaba since 2007, we are keeping with our customers

an one for one timely information feedback, we have organized an expert team for quality control and inspection system,

we have built up Multi-way fast delivery channels and we are supplying one year free after-sale warranty to the buyer. We

think outside the box and are continually developing new products to meet customer requirements, what you are asking

for is our motive power of task, we wish one of our products will well-meet what you demand.
