35m Aluminum Manual Telescopic Antenna Communication Mast

35m Aluminum Manual Telescopic Antenna Communication Mast thumbnail-1
35m Aluminum Manual Telescopic Antenna Communication Mast thumbnail-2
35m Aluminum Manual Telescopic Antenna Communication Mast thumbnail-3
35m Aluminum Manual Telescopic Antenna Communication Mast thumbnail-4
35m Aluminum Manual Telescopic Antenna Communication Mast thumbnail-5
35m Aluminum Manual Telescopic Antenna Communication Mast photo-1
35m Aluminum Manual Telescopic Antenna Communication Mast photo-2
35m Aluminum Manual Telescopic Antenna Communication Mast photo-3
35m Aluminum Manual Telescopic Antenna Communication Mast photo-4
35m Aluminum Manual Telescopic Antenna Communication Mast photo-5
US$ 2,300 - 4,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
talents telescopic mast
Place of Origin:
Tianjin, China
Model Number:
TAL-H-035
Contact Supplier Request Quote Chat Now
Dingzhou City Great Wall Daily Chemical Factory
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name talents telescopic mast
Place of Origin Tianjin, China
Model Number TAL-H-035
Product Description

                           35m aluminum manual telescopic antenna communication mast


Specifications of telescopic antenna communication mast
extended length
35.0m
retracted length
3.9m
max loading
7kg
max diameter
180mm
material
aluminum alloy
color
army green
section number
11
Temperature
-40C-+40C
Wind load
25-35m/s
accessories
tripod, pulling rope, ground anchor, top/bottom plate,handle bar
application
The telescopic antenna communication mast is suitable for car,ship or land.It can help light transmission and camera and other equipment rise and drop to a predetermined height after its work.The company's products are also widely used in golf, soccer stadium lighting at night.

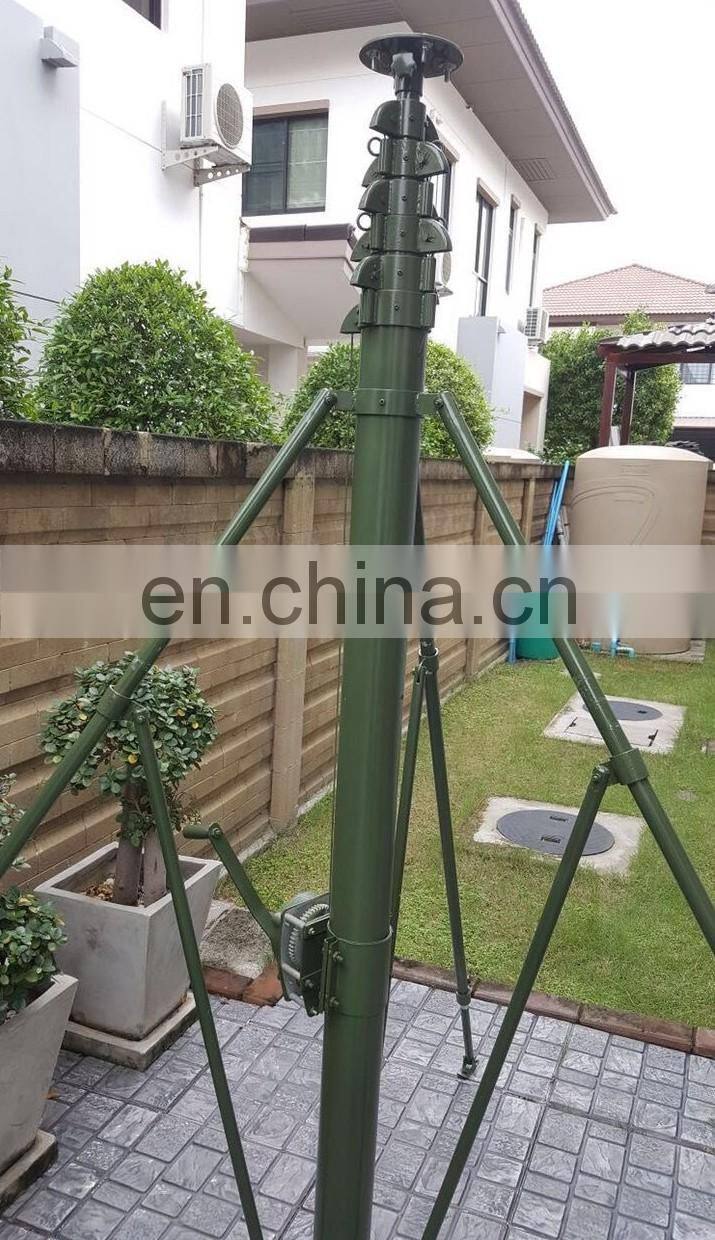

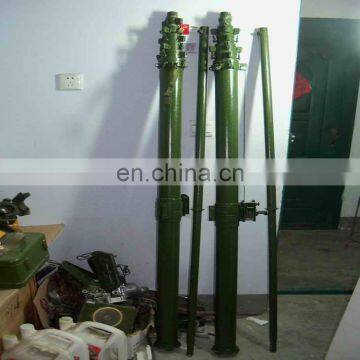

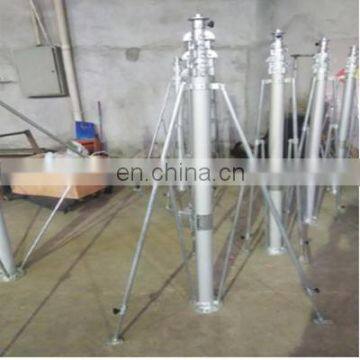

Detailed Images
Packing & Delivery

PACKING:
One unit of telescopic antenna communication mast to be wrapped with Poly tapes and then put into carto.

Installation Instructions:

1)The telescopic antenna communication mast can be installed on the ground, or on the vehicle. No matter where to install, its installation shall keep vertical with the ground.Tilted telescopic antenna mast will affect the rise and fall of itself, and if the lifting rod tilts seriously or maintain a long time, damage and danger could not be avoided.
2)The telescopic antenna communication mast needs to be installed on a fixed object, without any shaking, such as walls, car body, or pile. At least two fixed points will be installed, and one point must be installed on the body of the telescopic antenna mast. And the distance between two points should be longer than 2/3 of the height of telescopic antenna mast. Its connection must be solid and reliable.

Warranty period

Except the damages due to misuse, unauthorized modification and man-made sabotage, the damaged parts will enjoyed free after-sales maintenance within one year's time from the date of delivery on the condition that the buyer himself will bear the

shipping cost back and forth and the said damage should be confirmed by the seller through photos and description.

Catalogue

we produce telescopic mast manual lifting from 2m to 45m,for payload lights,camear,ham radio,yagi ,lightning rod,or telecommunication devices.Bellow is our catalogue of usual models for your reference.

Besides,we can design different of models for ODM and OEM.

Extended  height
(m)
No. Of section
Retracted height(m)
Outer tube range(mm)
Self weight
(kg)
Max.payload
(kg)
3
3
1.0
70-90
15
20
4
3
1.5
50-80
15
30
4
3
1.0
70-90
16
20
4
3
1.6
60-80
14
10
5
4
1.65
50-80
17
10
5
5
1.2
40-90
20
15
5
5
1.5
50-90
20
60
5
6
1.7
60-130
35
100
6
5
1.7
50-90
21
10
6
6
1.5
60-130
40
100
6
7
1.3
40-130
32
60
7
7
1.8
40-105
23
30
8
8
1.5
40-130
34
20
9
7
1.8
40-105
25
40
9
7
1.8
40-105
25
30
9
7
1.8
60-160
43
100
9
7
1.9
30-90
25
5
10
7
1.95
30-90
26
10
10
7
2
30-105
31
40
12
7
2.2
30-90
28
10
12
7
2.1
30-90
28
15
12
8
2.2
40-130
44
40
15
8
2.45
30-105
33
10
15
9
2.6
30-130
40
35
15
7
2.5
70-200
200
70
16
8
2.6
30-105
35
10
18
9
2.7
30-130
47
10
18
9
3.2
30-130
48
30
18
7
3.7
50-130
47
100
20
9
2.95
30-130
55
10
20
8
3.20
40-130
58
20
22
9
3.15
30-130
58
10
25
10
3.4
30-150
72
10
25
10
3.5
80-280
90
250
25
9
3.6
40-150
71
20
30
10
3.85
30-150
84
10
35
10
4.5
40-180
130
25
Workshop
Our Service

OEM/ODM service available for the buyers
Professional team for consulation, solution and designing
Complete quality control system before delivery
Multi-way fast delivery channel at buyer's option

One year free after-sale warranty after delivery

Our Company
Talents is a Chinese company that design, manufacture and supply a range of manual/electric/pneumatic/hydraulic operated telescopic masts and lifting devices that made of aluminum alloy tube, stainless steel tube, fiberglass tube and carbon fiber tube.
Our masts are CE certified, we are providing customers an one for one timely information feedback.We are continually developing new products to meet customer requirements, what you are asking for is our motive power of task, we wish one of our products will well-meet what you demand.
