12m winch telescopic mast mounted on vehicle or ground
- 1000 Set / Sets per Month
- Port of Tianjin China
- T/T Credit Card
- mounted vehicle or on the ground 4m winch telescopic mast
- 10m to 20 meter aluminum telescopic tv antenna mast with tripod
- mounted vehicle hand crank push up telescopic mast 3.5m
- manually push up mast telescopic communications mast to 12m for trailer
- directive antenna 15m 18m hand lifting manual telescopic mast for ground
- 10m hand winch pole hand raised telescopic mast manual tower mast
Product Details
Brand Name: | talents | Place of Origin: | Tianjin, China | Model Number: | TAL-M12-2.2-15 |
Product Description

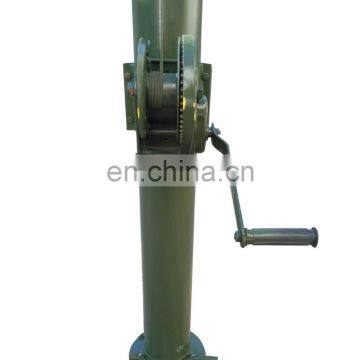

12m winch telescopic mast mounted on vehicle or ground
12m winch telescopic mast mounted on vehicle or ground
Specification list
Article number: | TAL-M12-2.2-15 |
Max top payload: | 15kgs |
Closed length: | 2200mm |
Extended length: | 12000mm |
Main poles' sections: | 7 sections |
sec.1#(OD/ID/thickness): | 30/26/2mm |
sec.2#(OD/ID/thickness): | 40/36/2mm |
sec.3#(OD/ID/thickness): | 50/46/2mm |
sec.4#(OD/ID/thickness): | 60/56/2mm |
sec.5#(OD/ID/thickness): | 70/66/2mm |
sec.6#(OD/ID/thickness): | 80/76/2mm |
sec.7#(OD/ID/thickness): | 90/86/2mm |
Bottom base size (dia.thickness): | 150mm/10mm |
Top plate size (dia./thickness): | 130mm/10mm |
Working temperature: | -40--+50C |
Lifting method: | manual listing |
Wind load: | 80km/h |
Pulling cord's OD: | 2mm |
Material for main pole: | aluminum alloy 6063B |
Material for bottom base: | iron steel |
Material for accessories: | iron steel |
Material for pulling cord: | stainless steel |
Material for other asscessaires | iron steel |
Packing list:
Mian pole in 7 sections: | 1 set |
Handle lifting bar: | 2 piece |
Bottom base: | 1 piece |
top plate: | 1 piece |
Pulling cord box with handle bars: | 3 sets |
Ground anchor: | 3 pieces |
Clamp: | 1 piece |
tripal: | 1 set |
Surface color Technology: | Painting in army green, the whole unit will be in army green when closed, but when extended, the main pole will be in origin color of the aluminum alloy only with top 4cm of each section in army green color. |
Packing method: | the main pole and the accessories are wrapped with foamed membrane and then to be packed into a polywood case |
12m winch telescopic mast mounted on vehicle or ground
1. The telescopic mast is made of aluminum alloy or stainless steel tube.
2. It can help lamplight, camera, Antenna, mobile and military, emergency, illumination,
photography, meteorological measurement equipments rise and drop to a certain
height after its work.
3. It can be mounted on the vehicle or stand on the ground with tripod.
4. It has manual, motorized and pneumatic lifting method, the extended length up to 35m
and closed length to 1.3m.
5. The top payload up to 400kgs, wind load: 80 km/h., working temperature: -15--+60℃.
Except the manual lifting telescopic mast, we still have motorized lifting and pneumatic lifting
telescopic masts available for supply as follows, please refer to the catalogue attached below:
Manual lifting telescopic mast
Article No. | Retracted height (mm) | Extended height (mm) | Diameter range (mm) | Section No.s | top payload (kgs) |
TAL-M3-1-20 | 1000 | 3000 | 70-90 | 3 | 20 |
TAL-M4-1.5-30 | 1500 | 4000 | 50-80 | 3 | 30 |
TAL-M4-1-20 | 1000 | 4000 | 70-90 | 3 | 20 |
TAL-M4-1.6-10 | 1600 | 4000 | 60-80 | 3 | 10 |
TAL-M5-1.65-10 | 1650 | 5000 | 50-80 | 4 | 10 |
TAL-M5-1.2-15 | 1200 | 5000 | 40-90 | 5 | 15 |
TAL-M5-1.5-60 | 1500 | 5000 | 50-90 | 5 | 60 |
TAL-M5-1.7-100 | 1700 | 5000 | 60-130 | 6 | 100 |
TAL-M6-1.7-10 | 1700 | 6000 | 50-90 | 5 | 10 |
TAL-M6-1.5-100 | 1500 | 6000 | 60-130 | 6 | 100 |
TAL-M6-1.3-60 | 1300 | 6000 | 40-130 | 7 | 60 |
TAL-M7-1.8-30 | 1800 | 7000 | 40-105 | 7 | 30 |
TAL-M8-1.5-20 | 1500 | 8000 | 40-130 | 8 | 20 |
TAL-M9-1.8-40 | 1800 | 9000 | 40-105 | 7 | 40 |
TAL-M9-1.8-30 | 1800 | 9000 | 40-105 | 7 | 30 |
TAL-M9-1.8-100 | 1800 | 9000 | 60-160 | 7 | 100 |
TAL-M9-1.9-5 | 1900 | 9000 | 30-90 | 7 | 5 |
TAL-M10-1.95-10 | 1950 | 10000 | 30-90 | 7 | 10 |
TAL-M10-2-40 | 2000 | 10000 | 30-105 | 7 | 40 |
TAL-M12-2.2-10 | 2200 | 12000 | 30-90 | 7 | 10 |
TAL-M12-2.1-15 | 2100 | 12000 | 30-90 | 7 | 15 |
TAL-M12-2-40 | 2000 | 12000 | 40-130 | 8 | 40 |
TAL-M15-2.45-10 | 2450 | 15000 | 30-105 | 8 | 10 |
TAL-M15-2.6-35 | 2600 | 15000 | 30-130 | 9 | 35 |
TAL-M15-2.5-200 | 2500 | 15000 | 70-200 | 7 | 200 |
TAL-M16-2.6-10 | 2600 | 16000 | 30-105 | 8 | 10 |
TAL-M18-2.7-10 | 2700 | 18000 | 30-130 | 9 | 10 |
TAL-M18-3.2-30 | 3200 | 18000 | 30-130 | 9 | 30 |
TAL-M18-3.7-100 | 3700 | 18000 | 50-130 | 7 | 100 |
TAL-M20-2.95-10 | 2950 | 20000 | 30-130 | 9 | 10 |
TAL-M22-3.15-10 | 3150 | 22000 | 30-130 | 9 | 10 |
TAL-M25-3.4-10 | 3400 | 25000 | 30-150 | 10 | 10 |
TAL-M25-3.5-250 | 3500 | 25000 | 80-280 | 10 | 250 |
TAL-M25-3.6-20 | 3600 | 25000 | 40-150 | 9 | 20 |
TAL-M-30-3.85-10 | 3850 | 30000 | 30-150 | 10 | 10 |
TAL-M35-4.5-25 | 4500 | 35000 | 40-180 | 10 | 25 |
