Manually Push up Mast Telescopic Communications Mast to 12m for Trailer

Dingzhou City Great Wall Daily Chemical Factory
Manually Push up Mast Telescopic Communications Mast to 12m for Trailer thumbnail-1
Manually Push up Mast Telescopic Communications Mast to 12m for Trailer thumbnail-2
Manually Push up Mast Telescopic Communications Mast to 12m for Trailer thumbnail-3
Manually Push up Mast Telescopic Communications Mast to 12m for Trailer thumbnail-4
Manually Push up Mast Telescopic Communications Mast to 12m for Trailer photo-1
Manually Push up Mast Telescopic Communications Mast to 12m for Trailer photo-2
Manually Push up Mast Telescopic Communications Mast to 12m for Trailer photo-3
Manually Push up Mast Telescopic Communications Mast to 12m for Trailer photo-4
US$ 960 - 985 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Talents
Place of Origin:
Tianjin, China
Model Number:
TAL-M12--2.2-20
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Port of Tianjin China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Talents
Place of Origin Tianjin, China
Model Number TAL-M12--2.2-20
Product Description

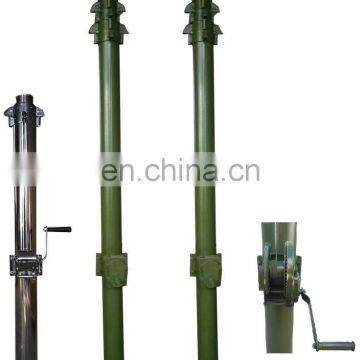

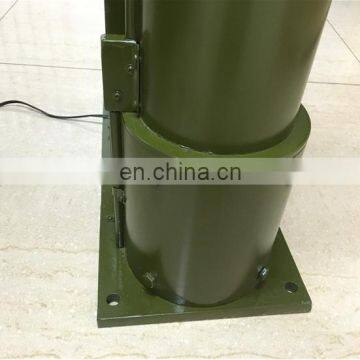

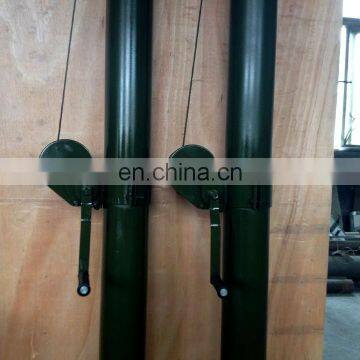

Telescopic crank mast, light weight, for payload up to 30kg

Telescopic crank masts is characterised by the lightweight construction and in addition
a superior stability, reliability and a long economic lifetime.
The masts are designed for field installation as well as vehicle installation or on a trailer.
Advantages:
1) no power supply needed - easy manual crank up
2)automatic locking collars - locks at any height desired
3) maintenance free
Common applications
our cranks masts are in use for military as well as civil purposes like communication,
monitoring, lighting and measurement techniques.
Essential features
Specification
Article number
TAL-M13-2.2-40
Lifting method
manual crank lifting
Closed length and extended length
2.2m to 13m
73material
for main tube: aluminum alloy
net wieght
58kg for mast
Max payload
40kgs
wind load
120km/h
temperature
-50 deg C to +60
sections
7
outer tube diameter
42mm-132mm
Packing & Delivery

one set of mast and accessories put into a plywood case

Details

 Accessories.

Usually the pulling rope used on less than 15m mast;The pulling cord box used on above 15m mast;The tripod used in the flat ground;Clamps used in vehicle mounted;The wheels used to help mobile

If you have other accessories requirement, please contact us separately.

Surface treatment .

Painting or Anodizing

Color :

army green, yellow, white, bronze... ...any color OEM is available.

Certifications
Installation

1) If extended height below 8m, the mast to be fixed with 3 layers nylon guy wires.

2)If the extended height between 8m-15m, the mast to be fixed with 3 layers pulling cord box .
3)If the extended height over 15m, the mast to be fixed with 4 layers pulling cord box.

Other Specification
Model No.
Extended height(m)
No. Of section
Retracted height(m)
Outer tube range(mm)
Self weight
(kg)
Max.payload
(kg)
TAL-M3-1-20
3
3
1.0
70-90
15
20
TAL-M4-1.5-30
4
3
1.5
50-80
15
30
TAL-M4-1-20
4
3
1.0
70-90
16
20
TAL-M4-1.6-10
4
3
1.6
60-80
14
10
TAL-M5-1.65-10
5
4
1.65
50-80
17
10
TAL-M5-1.2-15
5
5
1.2
40-90
20
15
TAL-M5-1.5-60
5
5
1.5
50-90
20
60
TAL-M5-1.7-100
5
6
1.7
60-130
35
100
TAL-M6-1.7-10
6
5
1.7
50-90
21
10
TAL-M6-1.5-100
6
6
1.5
60-130
40
100
TAL-M6-1.3-60
6
7
1.3
40-130
32
60
TAL-M7-1.8-30
7
7
1.8
40-105
23
30
TAL-M8-1.5-20
8
8
1.5
40-130
34
20
TAL-M9-1.8-40
9
7
1.8
40-105
25
40
TAL-M9-1.8-100
9
7
1.8
60-160
43
100
TAL-M9-1.9-5
9
7
1.9
30-90
25
5
TAL-M10-1.95-10
10
7
1.95
30-90
26
10
TAL-M10-2-40
10
7
2
30-105
31
40
TAL-M12-2.2-10
12
7
2.2
30-90
28
10
TAL-M12-2.1-15
12
7
2.1
30-90
28
15
TAL-M12-2-40
12
8
2.2
40-130
44
40
TAL-M15-2.45-10
15
8
2.45
30-105
33
10
TAL-M15-2.6-35
15
9
2.6
30-130
40
35
TAL-M15-2.5-200
15
7
2.5
70-200
200
70
TAL-M16-2.6-10
16
8
2.6
30-105
35
10
TAL-M18-2.7-10
18
9
2.7
30-130
47
10
TAL-M18-3.2-30
18
9
3.2
30-130
48
30
TAL-M18-3.7-100
18
7
3.7
50-130
47
100
TAL-M20-2.95-10
20
9
2.95
30-130
55
10
TAL-M20-3.20-20
20
8
3.20
40-130
58
20
TAL-M22-3.15-10
22
9
3.15
30-130
58
10
TAL-M25-3.4-10
25
10
3.4
30-150
72
10
TAL-M25-3.5-250
25
10
3.5
80-280
90
250
TAL-25-3.6-20
25
9
3.6
40-150
71
20
TAL-M30-3.85-10
30
10
3.85
30-150
84
10
TAL-M35-4.5-25
35
10
4.5
40-180
130
25
Welcome to contact

Company profile

About"Talents"
Talents is a Chinese company that design, manufacture mast system from 1m to 45m for nearly unlimited use,

that can deploy loads from 1kg to 600kg with height selected,

Our products are used worldwide by rescue and secuirty services, fire departments as weel as armed forces.

some  popular masts are in great demand for referentc
6m pneumatic mast 30kg payload
click the pictures for viewing more info

10m manual winch mast 15kg payload

15m motorized mast 80kg payload

Any questions or inquiry, welcome to contact us at any time

Reply the inquiry by email within 24 hours
