Telescoping tv hand winch aluminum telescopic antenna mast with guy wire

FOB Price

USD $920.28 - $967.69 / Set

1 Set(Min.Order)

Supply Ability 2000 Set / Sets per Month
Port Shanghai port China
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	talents, tv antenna mast		Place of Origin	Tianjin, China
Model Number	TAL-M10-1.95-15-A

Product Description

Manual telescopic mast

* handle lifting bar for lifting control. ( with winch system)

* Provide convenient installation and use for communications, security, lighting...
* Portable, retractable, widely application

* Accept customerized request

* Specification range: extended height from 1m to 35m. max head-load from 5kg to 200kg...

* Based on different mount place, different accessories will be provided.

Specification

Specification Telescoping tv hand winch aluminum telescopic antenna mast with guy wire
Model No.	TAL-M10-1.95-15-A
Extended height	10.0m
Retracted height	1.95m
Max head-load	15kg
Mast self weight( without tripod)	around 35kg
Mast sections No.	7 sections
Section No.& tube OD*Wall thickness	1# 90/2.0mm 2# 80/2.0mm 3# 70/2.0mm 4# 60/2.0mm 5# 50/2.0mm 6# 40/2.0mm 7# 30/2.0mm

Acessories
Mount model	ground fixed type---with tripod

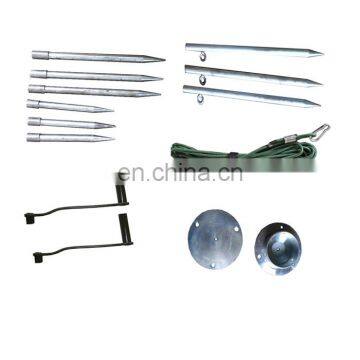

Accessories	handle lifting bar----------------------------------------1p Top flange--------------------------------------------------1pc Guy wire-----------------------------------------------------3pcs Guy stakes--------------------------------------------------3pcs Ground anchors-------------------------------------------3pcs Tripod----------------------------------------------------------1pc

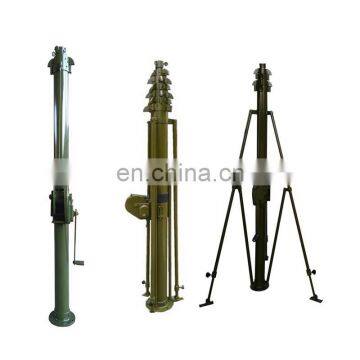

Detailed Images

Telescoping tv hand winch aluminum telescopic antenna mast with guy wire

Application pictures

antenna mast

camera/lightning tripod

Vehicle mounted mast

Packing & Delivery

Telescoping tv hand winch aluminum telescopic antenna mast with guy wire

Packed into a Plywood case.

Mast and accessories will be packed into a plywood case.

inner matainnig parts will be filled with foam.

Gross weight is around 90kg

Measurement:210*45*50cm

if special request on the packge, we can do it for you.

Our Service

Pre-sale

Reply within 24 hours by e-mail/whatsapp/Wechat/Skype.

Profession advice and design based on customers request.

After-sales

One year warranty for the conditions except the damage caused by Artificial operation, extreme weather conditions.

Other Specification

Model No.	Extended height(m)	No. Of section	Retracted height(m)	Outer tube OD(mm)	Head-load (KG)
TAL-M3-1-20	3	3	1.0	70-90	20
TAL-M4-1.5-30	4	3	1.5	50-80	30
TAL-M5-1.65-10	5	4	1.65	50-80	10
TAL-M5-1.2-15	5	5	1.2	40-90	15
TAL-M5-1.2-10	5	6	1.2	40-90	10
TAL-M5-1.7-100	5	6	1.7	60-130	100
TAL-M6-1.7-10	6	5	1.7	50-90	10
TAL-M6-1.5-100	6	6	1.5	60-130	100
TAL-M6-1.3-60	6	7	1.3	40-130	60
TAL-M7-1.8-30	7	7	1.8	40-105	30
TAL-M8-1.8-10	8	6	1.8	40-90	10
TAL-M8-1.5-20	8	8	1.5	40-130	20
TAL-M9-1.8-30	9	7	1.8	40-105	30
TAL-M9-1.8-100	9	7	1.8	60-160	100
TAL-M9-1.9-5	9	7	1.9	30-90	5
TAL-M10-1.95-10	10	7	1.95	30-90	10
TAL-M10-2-40	10	7	2	30-105	40
TAL-M12-2.1-15	12	7	2.1	30-90	15
TAL-M12-2-40	12	8	2.2	40-130	40
TAL-M15-2.45-10	15	8	2.45	30-105	10
TAL-M15-2.6-35	15	9	2.6	30-130	35
TAL-M15-2.5-200	15	7	2.5	70-200	70
TAL-M16-2.6-10	16	8	2.6	30-105	10
TAL-M18-2.7-10	18	9	2.7	30-130	10
TAL-M18-3.2-30	18	9	3.2	30-130	30
TAL-M18-3.7-100	18	7	3.7	50-130	100
TAL-M20-2.95-10	20	9	2.95	30-130	10
TAL-M22-3.15-10	22	9	3.15	30-130	10
TAL-M25-3.4-10	25	10	3.4	30-150	10
TAL-M25-3.5-250	25	10	3.5	80-280	250
TAL-25-3.6-20	25	9	3.6	40-150	20
TAL-M30-3.85-10	30	10	3.85	30-150	10
TAL-M35-4.5-25	35	10	4.5	40-180	25
