10m Masts and Mobile Antenna Telescopic Mast

Dingzhou City Great Wall Daily Chemical Factory
10m Masts and Mobile Antenna Telescopic Mast thumbnail-1
10m Masts and Mobile Antenna Telescopic Mast thumbnail-2
10m Masts and Mobile Antenna Telescopic Mast thumbnail-3
10m Masts and Mobile Antenna Telescopic Mast thumbnail-4
10m Masts and Mobile Antenna Telescopic Mast thumbnail-5
10m Masts and Mobile Antenna Telescopic Mast thumbnail-6
10m Masts and Mobile Antenna Telescopic Mast photo-1
10m Masts and Mobile Antenna Telescopic Mast photo-2
10m Masts and Mobile Antenna Telescopic Mast photo-3
10m Masts and Mobile Antenna Telescopic Mast photo-4
10m Masts and Mobile Antenna Telescopic Mast photo-5
10m Masts and Mobile Antenna Telescopic Mast photo-6
US$ 920.28 - 967.69 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Talents,10m masts and mobile antenna telescopic mast
Place of Origin:
Tianjin, China
Model Number:
TAL-M10-1.95-15-A
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai port China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Talents,10m masts and mobile antenna telescopic mast
Place of Origin Tianjin, China
Model Number TAL-M10-1.95-15-A
Product Description

10m masts and mobile antenna telescopic mast

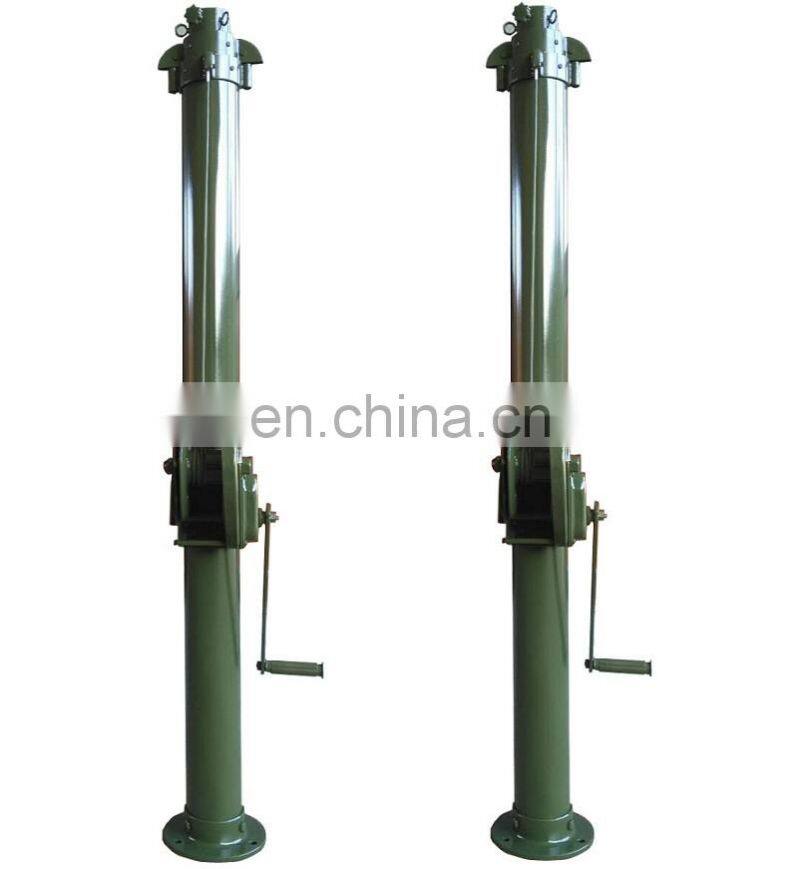

Manual telescopic mast

* handle lifting bar for lifting control. ( with winch system)

* Provide convenient installation and use for communications, security, lighting...
* Portable, retractable, widely application

* Accept customerized request

* Specification range: extended height from 1m to 35m. max head-load from 5kg to 200kg...

* Based on different mount place, different accessories will be provided.

Specification
10m masts and mobile antenna telescopic mast
10m masts and mobile antenna telescopic mast
Specification
10m masts and mobile antenna telescopic mast
Model No.
TAL-M10-1.95-15-A
Extended height
10.0m
Retracted height
1.95m
Max head-load
15kg
Mast self weight( without tripod)
around 35kg
Mast sections No.
7 sections
Section No.& tube OD*Wall thickness
1# 90/2.0mm 2# 80/2.0mm
3# 70/2.0mm 4# 60/2.0mm
5# 50/2.0mm 6# 40/2.0mm
7# 30/2.0mm
Acessories
Mount model

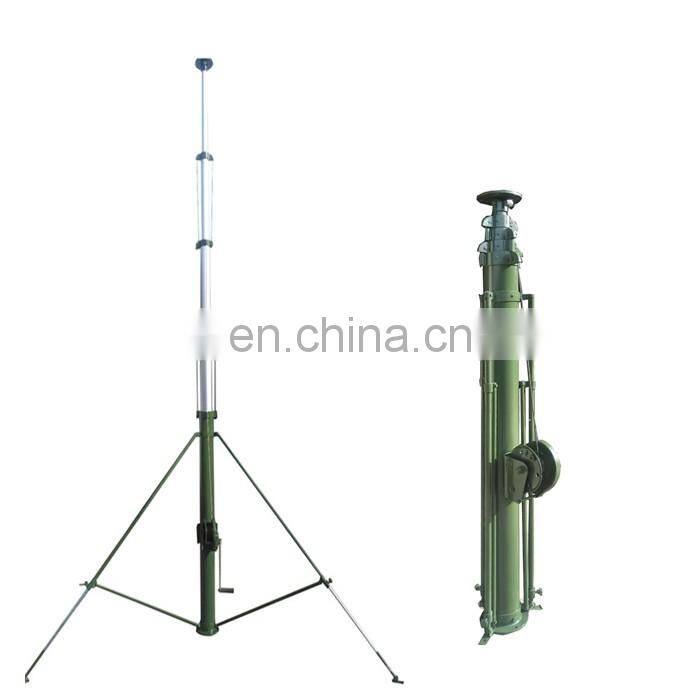

ground fixed type---with tripod

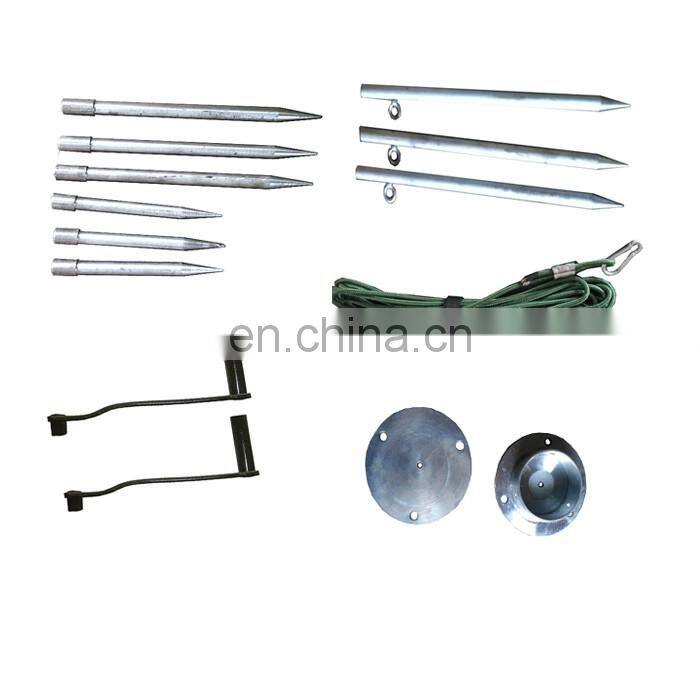

Accessories
handle lifting bar----------------------------------------1p
Top flange--------------------------------------------------1pc
Guy wire-----------------------------------------------------3pcs
Guy stakes--------------------------------------------------3pcs
Ground anchors-------------------------------------------3pcs
Tripod----------------------------------------------------------1pc
Detailed Images

10m masts and mobile antenna telescopic mast

10m masts and mobile antenna telescopic mast
10m masts and mobile antenna telescopic mast
10m masts and mobile antenna telescopic mast

Application pictures

10m masts and mobile antenna telescopic mast
10m masts and mobile antenna telescopic mast
10m masts and mobile antenna telescopic mast

antenna mast

camera/lightning tripod

Vehicle mountedmast

Packing & Delivery
10m masts and mobile antenna telescopic mast



10m masts and mobile antenna telescopic mast

Packed into a Plywood case.

Mast and accessories will be packed into a plywood case.

inner matainnig parts will be filled with foam.

Gross weight is around 90kg

Measurement:210*45*50cm

if special request on the packge, we can do it for you.



Our Service

Pre-sale

Reply within 24 hours by e-mail/whatsapp/Wechat/Skype.

Profession advice and design based on customers request.

After-sales

One year warranty for the conditions except the damage caused by Artificial operation, extreme weather conditions.

Other Specification
Model No.
Extended height(m)
No. Of section
Retracted height(m)
Outer tube OD(mm)
Head-load
(KG)
TAL-M3-1-20
3
3
1.0
70-90
20
TAL-M4-1.5-30
4
3
1.5
50-80
30
TAL-M5-1.65-10
5
4
1.65
50-80
10
TAL-M5-1.2-15
5
5
1.2
40-90
15
TAL-M5-1.2-10
5
6
1.2
40-90
10
TAL-M5-1.7-100
5
6
1.7
60-130
100
TAL-M6-1.7-10
6
5
1.7
50-90
10
TAL-M6-1.5-100
6
6
1.5
60-130
100
TAL-M6-1.3-60
6
7
1.3
40-130
60
TAL-M7-1.8-30
7
7
1.8
40-105
30
TAL-M8-1.8-10
8
6
1.8
40-90
10
TAL-M8-1.5-20
8
8
1.5
40-130
20
TAL-M9-1.8-30
9
7
1.8
40-105
30
TAL-M9-1.8-100
9
7
1.8
60-160
100
TAL-M9-1.9-5
9
7
1.9
30-90
5
TAL-M10-1.95-10
10
7
1.95
30-90
10
TAL-M10-2-40
10
7
2
30-105
40
TAL-M12-2.1-15
12
7
2.1
30-90
15
TAL-M12-2-40
12
8
2.2
40-130
40
TAL-M15-2.45-10
15
8
2.45
30-105
10
TAL-M15-2.6-35
15
9
2.6
30-130
35
TAL-M15-2.5-200
15
7
2.5
70-200
70
TAL-M16-2.6-10
16
8
2.6
30-105
10
TAL-M18-2.7-10
18
9
2.7
30-130
10
TAL-M18-3.2-30
18
9
3.2
30-130
30
TAL-M18-3.7-100
18
7
3.7
50-130
100
TAL-M20-2.95-10
20
9
2.95
30-130
10
TAL-M22-3.15-10
22
9
3.15
30-130
10
TAL-M25-3.4-10
25
10
3.4
30-150
10
TAL-M25-3.5-250
25
10
3.5
80-280
250
TAL-25-3.6-20
25
9
3.6
40-150
20
TAL-M30-3.85-10
30
10
3.85
30-150
10
TAL-M35-4.5-25
35
10
4.5
40-180
25
Our Company

TJTALENTS ENTERPRISE CO.,LTD

* Professional design and supplier for the telescopic mast since 1995---manaul/motorized/pneumatic model.

* Have own technician team for providing proffestional ODM help.
* Golden supplier since 2007 on Alibaba, provide professional export help.

* Our products are widely used all over the world, in places such as Australia, Singapore, Brazil, Chile, UK, Germany, Netherlands, Spain,USA, India, Malaysia and more.

* Our mast are widely used in Military, Emergency, Illumination, Photography,Meteorologic Measurement, etc.

* We just do the good quality mast in long service time.
