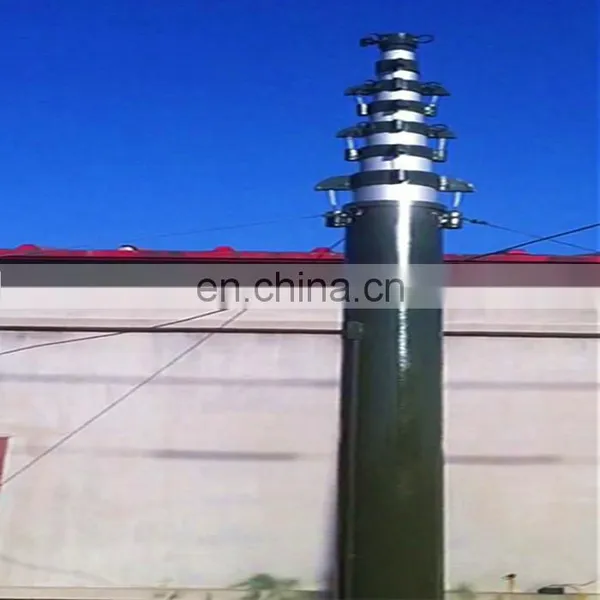

35m High Mast Lighting Pole Telescopic Camera Extendable and Retracted Aluminum Adjustable Manual Hand Motorizedwinch Tower

FOB Price

US$ 3,500 - 3,600 / Unit

1 Unit(Min. Order)

Port Port of Tianjin China
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	talent sailing mast		Place of Origin	Tianjin, China
Model Number	TAL-H-010

Product Description

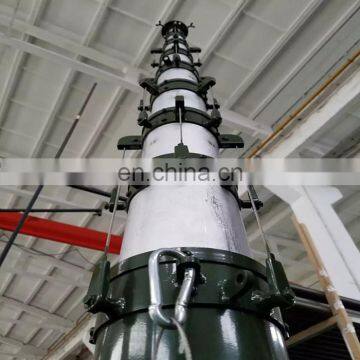

Product picture

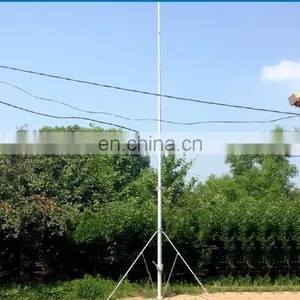

mobile tripod communication telescopic mast

Details 1

Accessories.

Usually the pulling rope used on less than 15m mast;The pulling cord box used on above 15m mast;The tripod used in the flat ground;Clamps used in vehicle mounted;The wheels used to help mobile.Rotary bearing for whirling.

If you have other accessories requirement, please contact us separately.

Surface treatment .

Painting or Anodizing

Color :

army green, yellow, white, bronze... ...any color OEM is available.

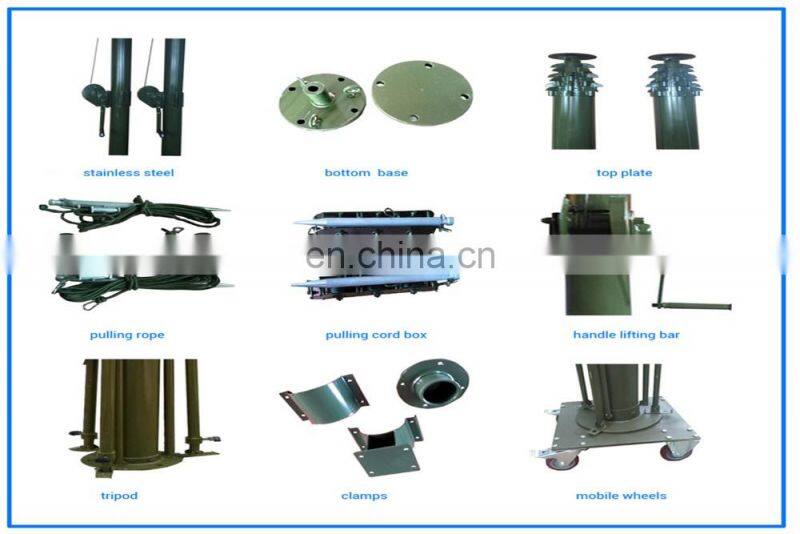

Accessories example

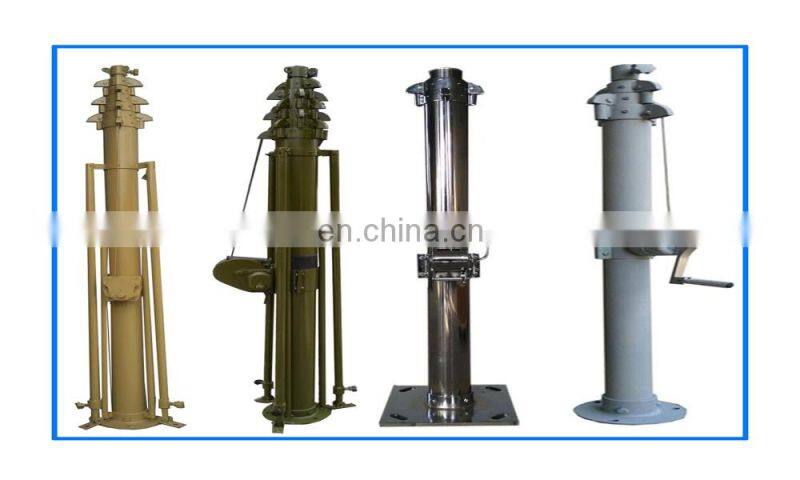

mobile tripod communication telescopic mast

Specification

Specification 15m hand lifting telescopic mobile satellite antenna mast
Model No.	TAL-M15-2.45-10-A
Extended height	15.0m
Retracted height	2.45m
Max head-load	10kg
Mast self weight( without tripod)	around 63kg
Mast sections No.	7sections
Material	Main Pole: aluminum alloy Bottom base and accessories(except the stakes): iron steel Pulling cord: stainless steel wire(OD:2mm)
Color	the whole unit will be in army green when closed, but when extended, the main pole will be in origin color of aluminum alloy only with top 4cm of each pole section in army green color.Technology: painting
main pole in sections	SectionNo. OD Thickness 1# 42mm 3.0mm 2# 55mm 3.0mm 3# 69mm 3.0mm 4# 83mm 3.0mm 5# 98mm 3.0mm 6# 114mm 3.0mm 7# 132mm 3.0mm

Acessories
Mount model	Ground fixed type---without tripod
Accessories	handle lifting bar----------------------------------------1p Top flange--------------------------------------------------1pc Guy wire-----------------------------------------------------3pcs Guy stakes--------------------------------------------------3pcs stainless steel stakes------------------------------------3pc Ground anchors-------------------------------------------3pcs tripod-----------------------------------------------------------1pc

Detail for pneumatic

12m portable field locking telescopic pneumatic mast

Mast material is aluminum alloy 6063-T5

Tube surface treatment is Hard anodizing

Color:Bronze and origin silver color for choose.

Acessories for 12m portable field locking telescopic pneumatic mast .

Operation steps

1.check the mast in good condition
2.fixed the mast on the ground. tripod fixed diameter is 3.4m,guy wire fixed diameter is 8m.
3.air inlet of control valve connect with air compressor.
4.air outlet of control valve connect wtih the mast.
5. once all mounted, you must keep the lifting control valve handle bar in middle location. (it make the air do not come into mast)
6.open the air compressor switch, at same time adjust the pessure regulating switch to reach 0.2MPa which the pressure gauge shows.
7.then pull up the lifting valve handle bar, mast will rise.
8.if you want to make the mast stop in some height, just make the handle bar in middle.

9. when lift down the mast, please pull down the lifting control valve handle bar..

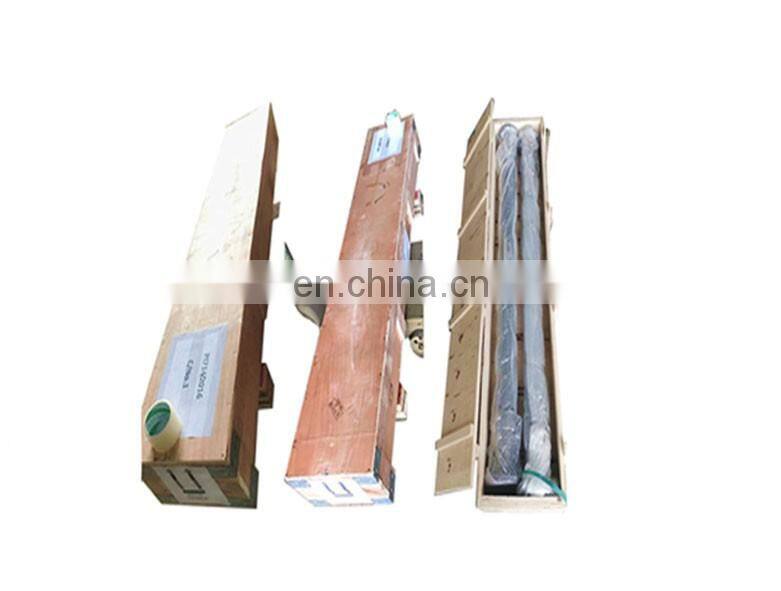

Packing & Delivery

15m hand lifting telescopic mobile satellite antenna mast.

Packing meterial: one unit of satellite antenna mast(main pole and all accessories)to be wrapped with EPE and then to be packed into a plywood case.

Gross weight:90kgs

Package meas:255*30*27

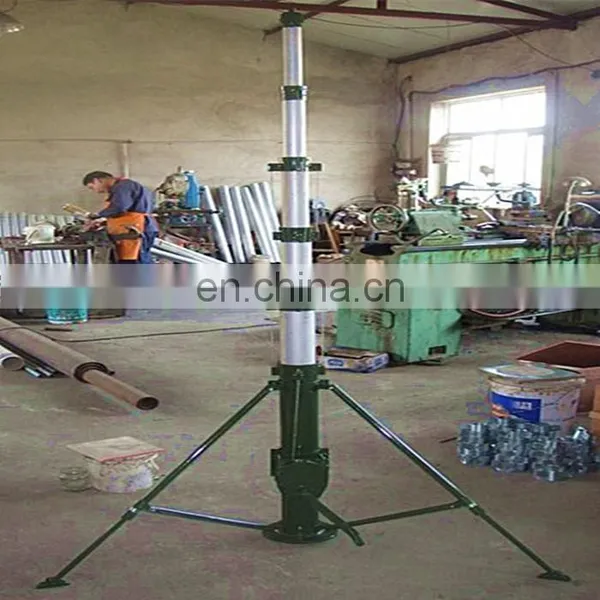

Workshop

Our Company

Talents is a Chinese company that design, manufacture and supply a range of manual/electric/pneumatic/hydraulic operated telescopic masts and lifting devices that made of aluminum alloy tube, stainless steel tube, fiberglass tube and carbon fiber tube.
Our masts are CE certified, we are providing customers an one for one timely information feedback.We are continually developing new products to meet customer requirements, what you are asking for is our motive power of task, we wish one of our products will well-meet what you demand.
