6m Steel Tripod Manual Telescopic Mast for CCTV Camera

6m Steel Tripod Manual Telescopic Mast for CCTV Camera thumbnail-1
6m Steel Tripod Manual Telescopic Mast for CCTV Camera thumbnail-2
6m Steel Tripod Manual Telescopic Mast for CCTV Camera thumbnail-3
6m Steel Tripod Manual Telescopic Mast for CCTV Camera thumbnail-4
6m Steel Tripod Manual Telescopic Mast for CCTV Camera thumbnail-5
6m Steel Tripod Manual Telescopic Mast for CCTV Camera photo-1
6m Steel Tripod Manual Telescopic Mast for CCTV Camera photo-2
6m Steel Tripod Manual Telescopic Mast for CCTV Camera photo-3
6m Steel Tripod Manual Telescopic Mast for CCTV Camera photo-4
6m Steel Tripod Manual Telescopic Mast for CCTV Camera photo-5
US$ 550 - 800 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
talents
Place of Origin:
Tianjin, China
Model Number:
TAL-M6
Contact Supplier Request Quote Chat Now
Dingzhou City Great Wall Daily Chemical Factory
Payment & Shipping
Payment Methods:
Port of Shipment:
Port of Tianjin China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name talents
Place of Origin Tianjin, China
Model Number TAL-M6
Product Description

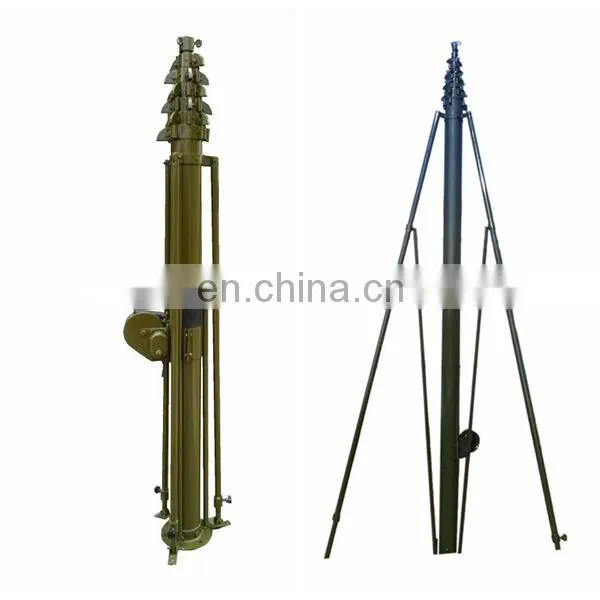

manual telescopic mast is composed of three sections,the main pole,manual lifting power,connection wire

rope.Hand lifting and screw nut power systerm generate upward momentume.The max payload mainly
depends on sections,height, diameter ,the bottom base,and the tripod,pulling cord ,as well the ground or vehicle
situation.

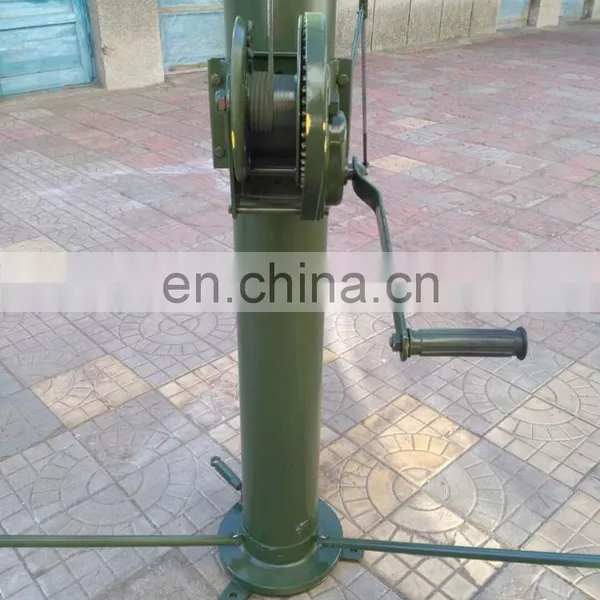

Screw nut transmission systerm utilizing transformation of force,make a small hand power produce great
upward momentum. Combination part tightness and aluminum alloy material of the mast let no water retention ,
no rain go in.
The mast available extended height is 2m to 45m.The payload up to 300kg from 5kg.
It can help lamplight,camera,ham radio,photography,antenna.......
It can be used on the ground or vehicle mounted or the wall......
Specs list
Specification for 6m mast
Article number
TAL-M6-1.7-30
Lifting method
manual lifting
Closed length and extended length
1.7m to 6m
material
for main tube:alluminun alloy
net wieght
23kgs( include tripod and other accessories)
Max payload
30kgs
wind load
120km/h
temperature
-50 deg C to +60
sections
5
outer tube diameter
98-83-69-55-42mm
reference bottom base
Diameter:190mm Thickness: 12mm
Details



Accessories.

Usually the pulling rope used on less than 15m mast;The pulling cord box used on above 15m mast;The tripod used in the flat ground;Clamps used in vehicle mounted;The wheels used to help mobile

If you have other accessories requirement, please contact us separately.

Surface treatment .

Painting or Anodizing

Color :

army green, yellow, white, bronze... ...any color OEM is available.

Packing & Delivery

one set of mast and accessories put into a plywood case

Other Specification
Model No.
Extended height(m)
No. Of section
Retracted height(m)
Outer tube range(mm)
Self weight
(kg)
Max.payload
(kg)
TAL-M3-1-20
3
3
1.0
70-90
15
20
TAL-M4-1.5-30
4
3
1.5
50-80
15
30
TAL-M4-1-20
4
3
1.0
70-90
16
20
TAL-M4-1.6-10
4
3
1.6
60-80
14
10
TAL-M5-1.65-10
5
4
1.65
50-80
17
10
TAL-M5-1.2-15
5
5
1.2
40-90
20
15
TAL-M5-1.5-60
5
5
1.5
50-90
20
60
TAL-M5-1.7-100
5
6
1.7
60-130
35
100
TAL-M6-1.7-10
6
5
1.7
50-90
21
10
TAL-M6-1.5-100
6
6
1.5
60-130
40
100
TAL-M6-1.3-60
6
7
1.3
40-130
32
60
TAL-M7-1.8-30
7
7
1.8
40-105
23
30
TAL-M8-1.5-20
8
8
1.5
40-130
34
20
TAL-M9-1.8-40
9
7
1.8
40-105
25
40
TAL-M9-1.8-30
9
7
1.8
40-105
25
30
TAL-M9-1.8-100
9
7
1.8
60-160
43
100
TAL-M9-1.9-5
9
7
1.9
30-90
25
5
TAL-M10-1.95-10
10
7
1.95
30-90
26
10
TAL-M10-2-40
10
7
2
30-105
31
40
TAL-M12-2.2-10
12
7
2.2
30-90
28
10
TAL-M12-2.1-15
12
7
2.1
30-90
28
15
TAL-M12-2-40
12
8
2.2
40-130
44
40
TAL-M15-2.45-10
15
8
2.45
30-105
33
10
TAL-M15-2.6-35
15
9
2.6
30-130
40
35
TAL-M15-2.5-200
15
7
2.5
70-200
200
70
TAL-M16-2.6-10
16
8
2.6
30-105
35
10
TAL-M18-2.7-10
18
9
2.7
30-130
47
10
TAL-M18-3.2-30
18
9
3.2
30-130
48
30
TAL-M18-3.7-100
18
7
3.7
50-130
47
100
TAL-M20-2.95-10
20
9
2.95
30-130
55
10
TAL-M20-3.20-20
20
8
3.20
40-130
58
20
TAL-M22-3.15-10
22
9
3.15
30-130
58
10
TAL-M25-3.4-10
25
10
3.4
30-150
72
10
TAL-M25-3.5-250
25
10
3.5
80-280
90
250
TAL-25-3.6-20
25
9
3.6
40-150
71
20
TAL-M30-3.85-10
30
10
3.85
30-150
84
10
TAL-M35-4.5-25
35
10
4.5
40-180
130
25
