20m Aluminum Manual Telescopic Mast For Antenna Radio Broadcasting

20m Aluminum Manual Telescopic Mast For Antenna Radio Broadcasting thumbnail-1
20m Aluminum Manual Telescopic Mast For Antenna Radio Broadcasting thumbnail-2
20m Aluminum Manual Telescopic Mast For Antenna Radio Broadcasting thumbnail-3
20m Aluminum Manual Telescopic Mast For Antenna Radio Broadcasting thumbnail-4
20m Aluminum Manual Telescopic Mast For Antenna Radio Broadcasting thumbnail-5
20m Aluminum Manual Telescopic Mast For Antenna Radio Broadcasting thumbnail-6
20m Aluminum Manual Telescopic Mast For Antenna Radio Broadcasting photo-1
20m Aluminum Manual Telescopic Mast For Antenna Radio Broadcasting photo-2
20m Aluminum Manual Telescopic Mast For Antenna Radio Broadcasting photo-3
20m Aluminum Manual Telescopic Mast For Antenna Radio Broadcasting photo-4
20m Aluminum Manual Telescopic Mast For Antenna Radio Broadcasting photo-5
20m Aluminum Manual Telescopic Mast For Antenna Radio Broadcasting photo-6
US$ 2,418 - 2,418 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Talents
Place of Origin:
Tianjin, China
Model Number:
TAL-M20-3.2-10
Contact Supplier Request Quote Chat Now
Dingzhou City Great Wall Daily Chemical Factory
Payment & Shipping
Payment Methods:
Port of Shipment:
China main port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Talents
Place of Origin Tianjin, China
Model Number TAL-M20-3.2-10
Detail Image

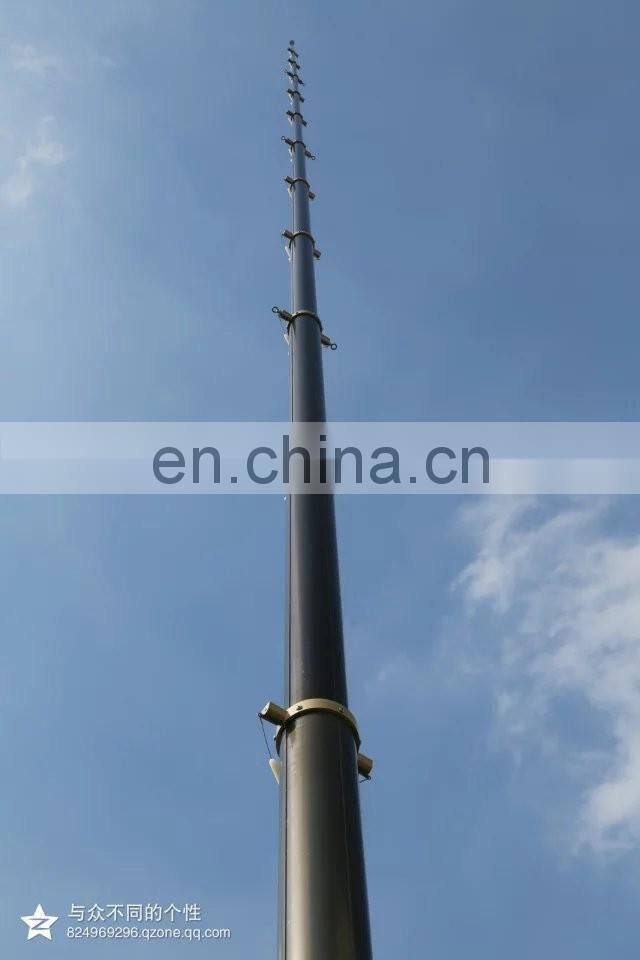

20m telescopic mast for ham radio antenna

Surface treatment .

Painting or Anodizing

Color :

army green, yellow, white, bronze... ...any color OEM is available.

Specification

6m telescoping tv antenna mast

technical data
Model No.
TAL-M20-3.2-10
main spec.
Closed length: 3.2m (Bottom base included)
Extended length: 20m (Bottom base included)
Max loading:10kg
Temperature: working temp:-40--+50C Storage Temp:-55--+70C
Material
Main Pole: aluminum alloy
Bottom base and accessories(except the stakes): iron steel
Pulling cord: stainless steel wire(OD:2mm)
Color
the whole unit will be in army green when closed, but when extended, the main pole will be in origin color of aluminum alloy only with top 4cm of each pole section in army green color.Technology: painting
main pole in sections
SectionNo.     OD                  Thickness
1#                      42mm             3.0mm
2#                      55mm             3.0mm
3#                      69mm             3.0mm
4#                      83mm             3.0mm
5#                      98mm             3.0mm
6#                      114mm           3.0mm
7#                      132mm           3.0mm
8#                      150mm           3.0mm
Bottom base
diameter: 180mm Thickness: 12mm
Acessories
Mount model
Ground fixed type---without tripod
Accessories

handle lifting bar----------------------------------------1p
Top flange--------------------------------------------------1pc
Guy wire-----------------------------------------------------3pcs
Guy stakes--------------------------------------------------3pcs
stainless steel stakes------------------------------------3pc
Ground anchors-------------------------------------------3pcs
tripod-----------------------------------------------------------1pc

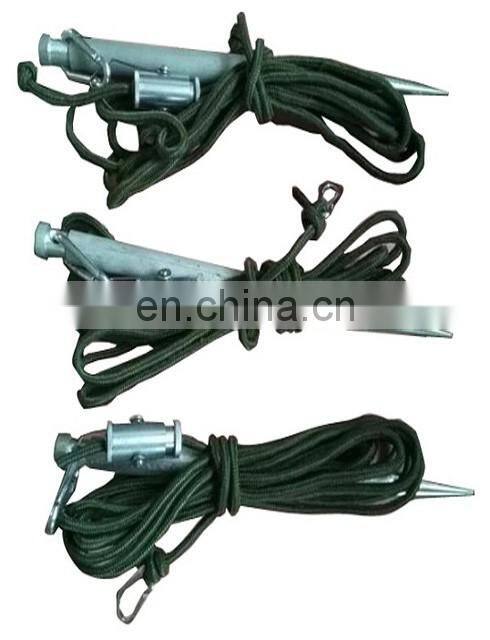

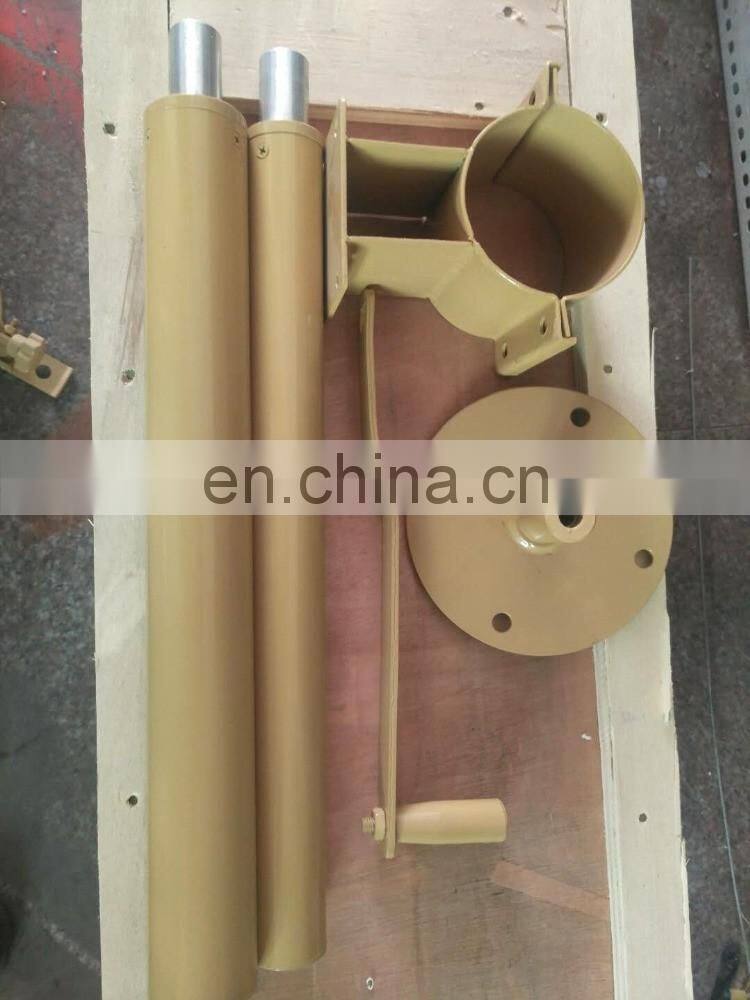

Accessorie photots

Usually the pulling rope used on less than 15m mast;The pulling cord box used on above 15m mast;The tripod used in the flat ground;Clamps used in vehicle mounted;The wheels used to help mobile.Rotary bearing for whirling.
If you have other accessories requirement, please contact us separately.

Packing & Delivery

Packing meterial: one unit of 6m antenna mast(main pole and all accessories)to be wrapped with EPE and then to be packed into a plywood case.

Catalogue

we produce telescopic mast manual lifting from 2m to 45m,for payload lights,camear,ham radio,yagi ,lightning rod,or telecommunication devices.Bellow is our catalogue of usual models for your reference.

Besides,we can design different of models for ODM and OEM.

Extended  height
(m)
No. Of section
Retracted height(m)
Outer tube range(mm)
Self weight
(kg)
Max.payload
(kg)
3
3
1.0
70-90
15
20
4
3
1.5
50-80
15
30
4
3
1.0
70-90
16
20
4
3
1.6
60-80
14
10
5
4
1.65
50-80
17
10
5
5
1.2
40-90
20
15
5
5
1.5
50-90
20
60
5
6
1.7
60-130
35
100
6
5
1.7
50-90
21
10
6
6
1.5
60-130
40
100
6
7
1.3
40-130
32
60
7
7
1.8
40-105
23
30
8
8
1.5
40-130
34
20
9
7
1.8
40-105
25
40
9
7
1.8
40-105
25
30
9
7
1.8
60-160
43
100
9
7
1.9
30-90
25
5
10
7
1.95
30-90
26
10
10
7
2
30-105
31
40
12
7
2.2
30-90
28
10
12
7
2.1
30-90
28
15
12
8
2.2
40-130
44
40
15
8
2.45
30-105
33
10
15
9
2.6
30-130
40
35
15
7
2.5
70-200
200
70
16
8
2.6
30-105
35
10
18
9
2.7
30-130
47
10
18
9
3.2
30-130
48
30
18
7
3.7
50-130
47
100
20
9
2.95
30-130
55
10
20
8
3.20
40-130
58
20
22
9
3.15
30-130
58
10
25
10
3.4
30-150
72
10
25
10
3.5
80-280
90
250
25
9
3.6
40-150
71
20
30
10
3.85
30-150
84
10
35
10
4.5
40-180
130
25
Our Company
Talents is a Chinese company that design, manufacture and supply a range of manual/electric/pneumatic/hydraulic operated telescopic masts and lifting devices that made of aluminum alloy tube, stainless steel tube, fiberglass tube and carbon fiber tube.
Talents was founded in 1995, since then we focus on offering customers high quality, durable, applied and economic masts. We are serving our long-term customers from the five Continents and the four Oceans.

Our masts are CE certified, we have been a golden supplier on Alibaba since 2007, we are keeping with our customers an one for one timely information feedback, we have organized an expert team for quality control and inspection system and have Multi-way fast delivery channels, we are supplying one year free after-sale warranty to the buyer. We think outside the box and are continually developing new products to meet customer requirements, what you are asking for is our motive power of task, we wish one of our products will well-meet what you demand.

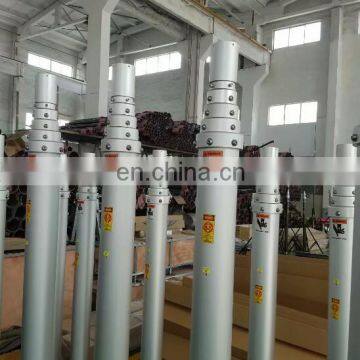

Workshop
