Machinery and Equipment of Complete Production Line of Coated Composite Plastic Woven Bags

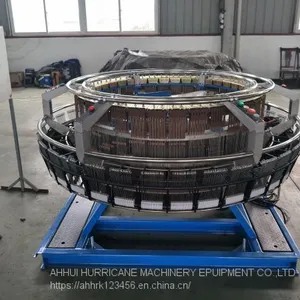

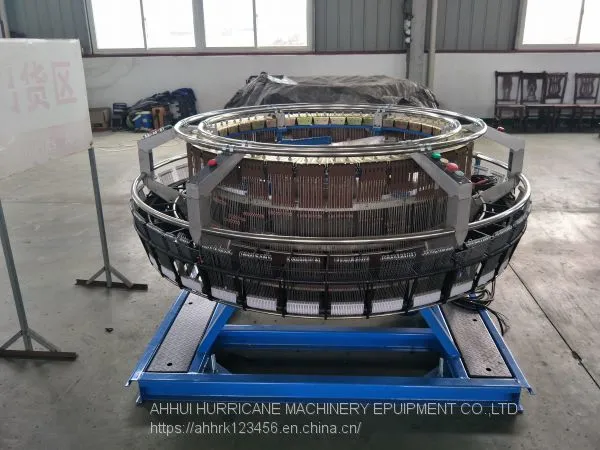

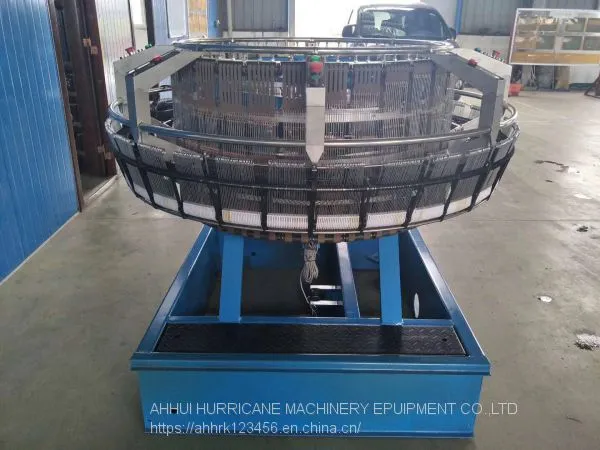

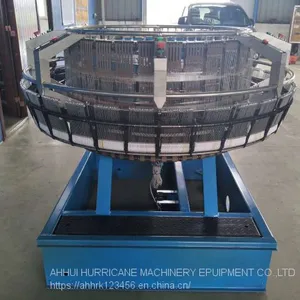

SCM-850*6S Six Shuttle Round Loom

This series of circular looms are equipped with polypropylene or polyethylene plastics flat yarn to weave cylinder knitted fabrics. The new type of six shuttle circular loom with planar cam produced by our factory is based on many years of research and production experience of plastic knitting machine and assimilation of advanced foreign technology. The original circular loom is continuously studied, improved and developed.

This series of circular looms can be used for flat yarns of different quality, including recycled plastic flat yarns. They have the advantages of advanced design, reasonable structure, easy operation, convenient maintenance, low power consumption and high production efficiency.

New type of small cam driving mechanism ensures the stability of long-term operation of the machine and the reduction of power consumption.

The new track ring and roller-free shuttle are suitable for 100% recycled plastic flat wire.

Advanced weft inspection system configuration, reduce waste rate, improve work efficiency;

Advanced weft automatic compensation system can reduce the waste rate to the greatest extent.

Fully automatic host machine and lifting synchronous control system ensure smooth and smooth fabric.

Maximum speed up to 180 rpm

Should use:

PP/HDPE woven fabric for woven bags, cement bags, rice bags, flour bags, pet food bags, animal feed bags, fertilizer bags, chemical bags, etc.

Advantages:

Fast working speed

Good weaving quality

Low energy consumption

Low maintenance costs

Easy to operate

The Best Economic Benefit

When weft yarn reaches an end or breaks, it can stop voluntarily. It can ensure the quality of products.

The dynamotor type weft detector is sensitive and reliable; it can’t be influenced by dust. Therefore, one person can operate several machines.)

The cam adopts forced circulating lubrication. And it is fixed with oil lack warning devicethis can avoid abnormal wearing and tearing of the parts

Main technical parameters

Type SCM-850*6S

Number of shuttles

Braided fabric folding 350 - 850 mm

Speed * 120 - 180 rpm

Throwing times of weft * 720 - 1080 times per minute

Weft filament density 20 - 55 per 100 mm

Up to 720 warp yarns

Pipe diameter of warp/weft barrel 38mm

Warp/weft barrel length 230mm

Maximum diameter of warp spindle

Maximum diameter of weft yarn blooming

Warp/weft ingot length 200 mm

Main motor (A.C. motor) 2.2/3.0kw

Total power 2.7/3.5 kw

Weight 3000kg

Shape size (L *W *H) 9100 *2410 *3100mm

Quality Assurance and After-sales Service

1. The equipment provided is brand-new products.

2. It meets the technical specifications and requirements of the equipment determined by the demander when selecting the type.

3. Within one year from the date of installation of the equipment, quality "three packages" and service life of the equipment shall be implemented for more than 10 years.

4. Be responsible for the supply of vulnerable parts and spare parts of equipment, and provide the charts and price lists of vulnerable parts and spare parts when signing the equipment supply contract.

5. The company has assigned personnel to be responsible for the installation, commissioning and technical guidance of all equipment.
