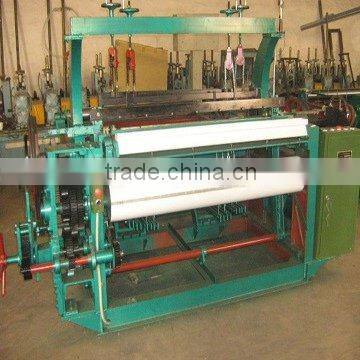

shuttles weaving looms
- 50 Set / Sets per Month
- xingang
- T/T
You May Like
Product Details
| Type | Rapier Loom | Place of Origin | Hebei, China | |
| Brand Name | JG, JG | Model Number | ZWJ1300, ZWJ1300 |
Product Description
Specifications
Uses the mechanical volume net, mastle shuttle, treads the plate to hang the synthesis, the doubles latitude structureShuttless weaving machine
Characteristics:1,,Adaptability to metal wires:Adapt to various imported and domestic metal wires.
2,Large adjust range:The metal wire screen can be woven out mesh but also special kinds up to 2600 mesh,such as plain weaving,twill weaving,mat weaving and taper contrast high density screen weaving,etc,and have advantage over products of other machines.
3,The machine adopts technique of shuttless and straightway weft leading,automatic warp feeding and winding.Sheddings are small,and surfaces of woven screens are smooth,and there is not any bright spot,bright trace and other defects on fine screens.The machine can make high -grade in the standard of GB/T 5330-2003.
4,Lower center of gravity,good stability,low noise and energy consumption,high effciency.
5,Rational design,simple construction,easy to operate and maintain.
Model | Width | Opening density | Wire diameter | Rotating speed of crank shaft | Motor power |
ZWJ1300B | 1300MM | 60-350 | 0.01-0.14 | 65-75 | 2.2kw |
ZWJ1300D | 1300MM | 16-120 | 0.14-0.30 | 65-75 | 2.2kw |
ZWJ1600B | 1600MM | 60-350 | 0.01-0.14 | 65-75 | 2.2kw |
ZWJ1600D | 1600MM | 16-120 | 0.14-0.30 | 65-75 | 2.2kw |
ZWJ2000heavy duty type | 2000MM | 10-100 | 0.2-1.0 | 45-55 | 4kw |
