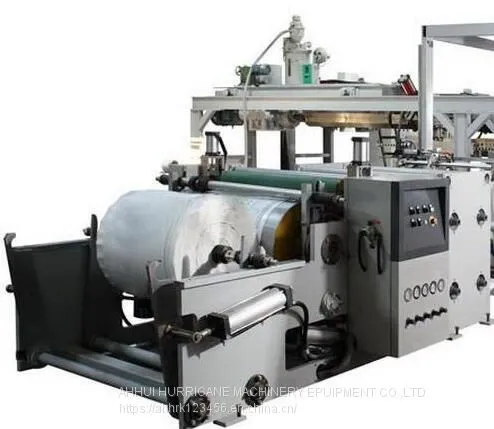

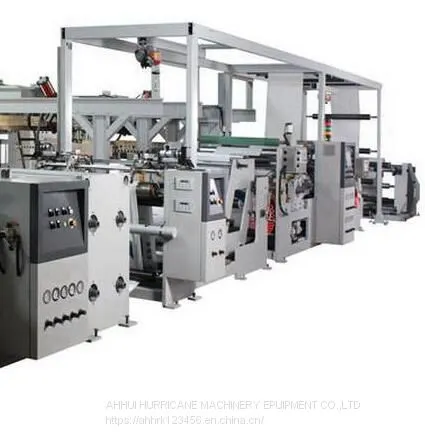

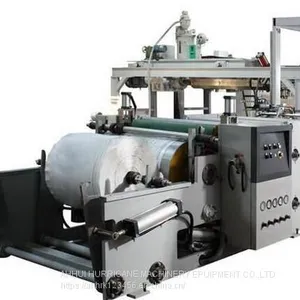

Plastic Extrusion Coating Composite Machine

Plastic Extrusion Coating Composite Machine

Should use:

It is used to coat PP/LDPE film on PP/HDPE braided fabric, kraft paper, non-woven fabric and other materials, or to compound BOPP film, kraft paper and PP/HDPE braided fabric or non-woven fabric.

It is used to produce coated composite woven bags, cement bags, rice bags, flour bags, pet food bags, animal feed bags, fertilizer bags, chemical bags, and other products.

Advantages:

Fast working speed

Good film quality

Low energy consumption

Low maintenance costs

Easy to operate

The Best Economic Benefit

Main technical parameters

SJ-FMF 65*2/800

Extruder E65/33

Screw diameter 65mm

Screw Length-Diameter Ratio (L/D) 33:1

Main motor of extruder 18.5kw

Maximum extrusion * 70kg/h * 2

T-shaped die width 900mm

Coating width 280 - 680 mm

Coating thickness 0.01 - 0.05 mm

Composite speed of coating * 20 - 180 m/min

Length of cooling roll 800mm

Material width 250 - 650mm

Rewinding correction range: +100mm

Maximum unwinding/unwinding diameter 1200mm

System installed capacity 129 kw

The normal operation capacity of the system (about) 80 kw

Outward Size (L X W X H) 12500 X 7100 X 2800

Quality Assurance and After-sales Service

1. The equipment provided is brand-new products.

2. It meets the technical specifications and requirements of the equipment determined by the demander when selecting the type.

3. Within one year from the date of installation of the equipment, quality "three packages" and service life of the equipment shall be implemented for more than 10 years.

4. Be responsible for the supply of vulnerable parts and spare parts of equipment, and provide the charts and price lists of vulnerable parts and spare parts when signing the equipment supply contract.

5. The company has assigned personnel to be responsible for the installation, commissioning and technical guidance of all equipment.
