Laboratory Wet High Intensity Magnetic Separator XCSQ50*70

---About product

 XCQS Wet High Intensity Magnetic Separation Machines for metal mineral processing laboratory, mining engineering experiment, the middle experimental plant, which uses fine-grained wet method magnetic ore separator, only a small amount of sample can be tested technical indicators of mineral iron content. Separator small size, easy to operate. The device is not suitable for beneficiation test with a corrosive liquid. This product is the only designated former Ministry of Geology and Mineral production, the implementation of industry standards.

  The role of large area magnetic machine, processing capacity, tooth plate made of Poly magnetic media, magnetic field intensity and magnetic field gradient is high, the low-grade iron ore oxidation experiments very effective.

---Working principle

---Under the control of PLC Machine, this equipment automatically returns to its original state. That is, the separation hopper stays for 3s during the action process of "tailings", "middling", and "concentrate".
---The separation process is: The slurry in the agitation drum enters the separation tank after passing the feeding valve and rectangular mouth.
---The non-magnetic ore grains falls into the tailing drum along the gap of toothed plate under the action of gravity.
---The magnetic ore grains are absorbed on the toothed plate under the action of magnetic field. After the ore is fed, the separation hopper swings to above the middling drum.

---Mail Features

1. 1.High concentrating ratio and high recovery
   2. Total process automation, steady recovery performance
   4. Environmentally friendly(requires no chemical additives or reagents)
   5. Low water and electricity requirements

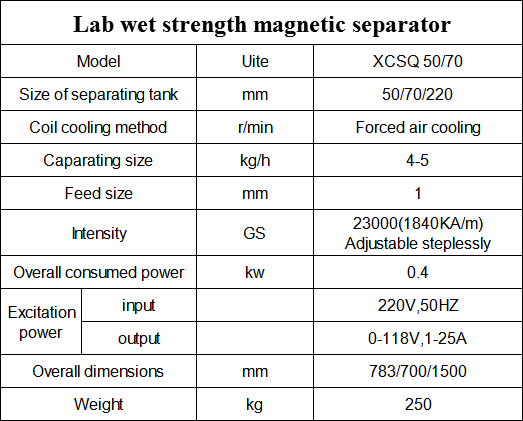

2. ---Technical parameter

3.

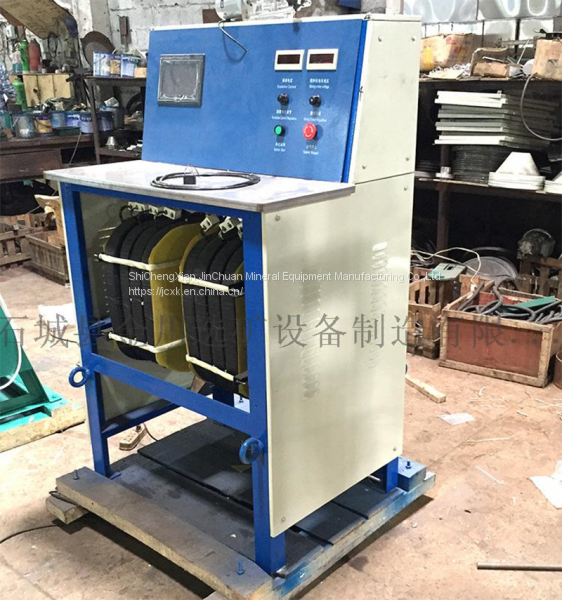

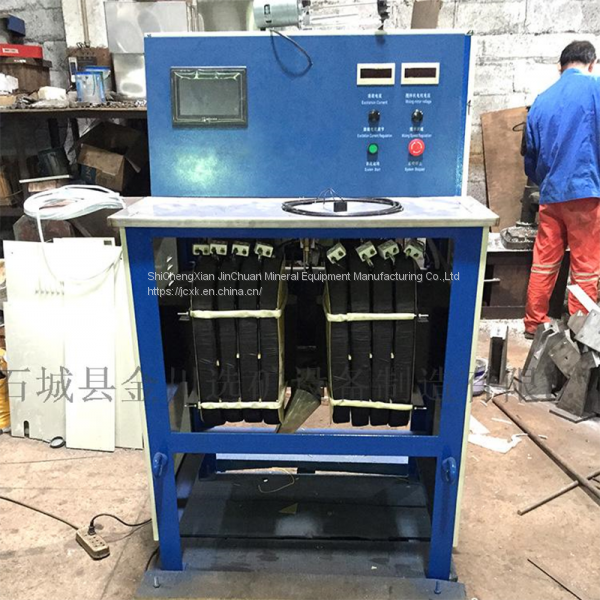

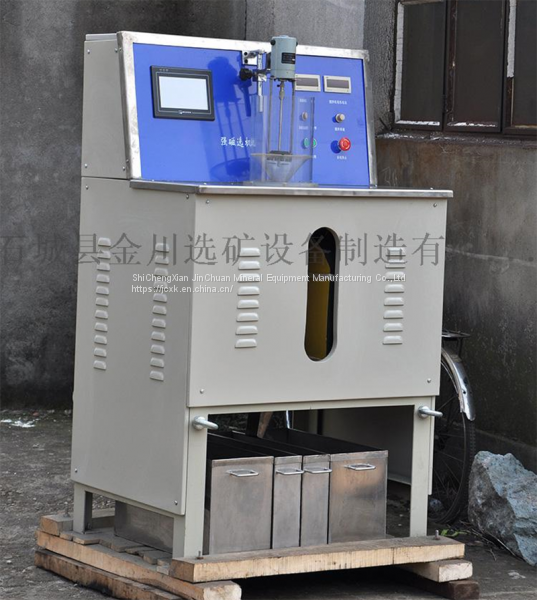

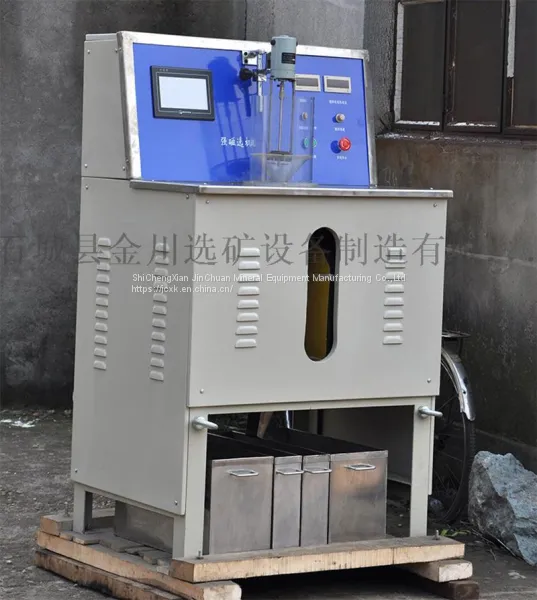

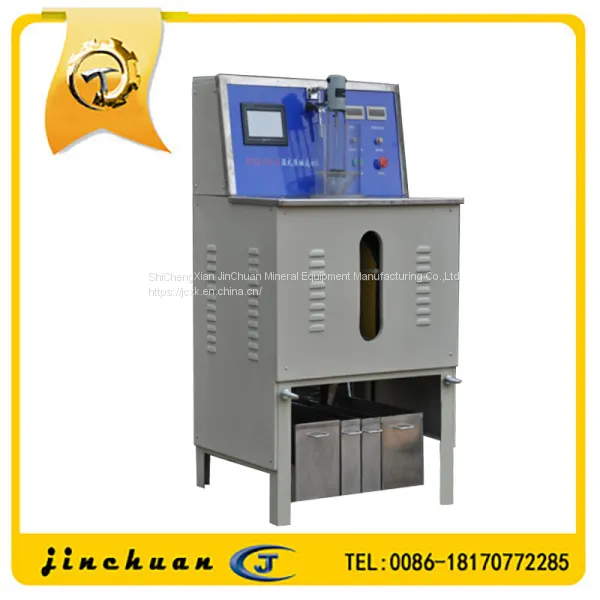

4. ---Product Pictures

5.
