---About product
Flotation machine is applicable for separating non-ferrous metal, black metal, noble metal, non-metal mineral, raw body and materials of chemical industry, which are subject to coarse separation, swept separation, fine separation and flotation, so the useful ore are reclaimed.
---Main Features
1. High air suction ability of the laboratory flotation machine can fix the material sufficient.
2. Scientific slurry circuit system makes the laboratory flotation machine not being blocked.
3. Simple design make the laboratory flotation machine is east operating.
4. The laboratory flotation machine with fully sealed design, no dust pollution, meets environmental requirements.
5. The laboratory flotation machine is easy maintenance with low operating cost.
6. The laboratory flotation machine adopting special technology and material.
---Working princeple
The floatation machine has the advantages of large air-absorption capacity and low energy consumption. Every cell owns three functions: air absorption, slurry absorption, and floatation separation, and the cells form a floatation separation loop by itself without any auxiliary equipment, and is allocated horizontally, which favors the change of flow. The circulation of mineral slurry is reasonable, and can avoid the disposition of coarse sand to the largest extent. There is self-control device on the surface of mineral slurry, so it is easy to adjust it. The impeller has backward-inclined upper and lower vanes, which produce upper and lower circulation of mineral slurry respectively.

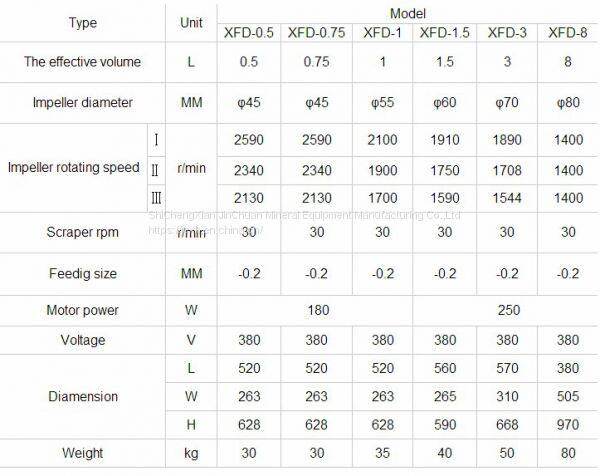

---Specification

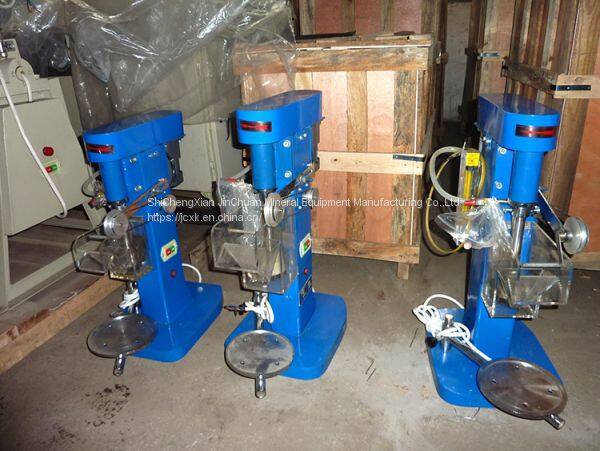

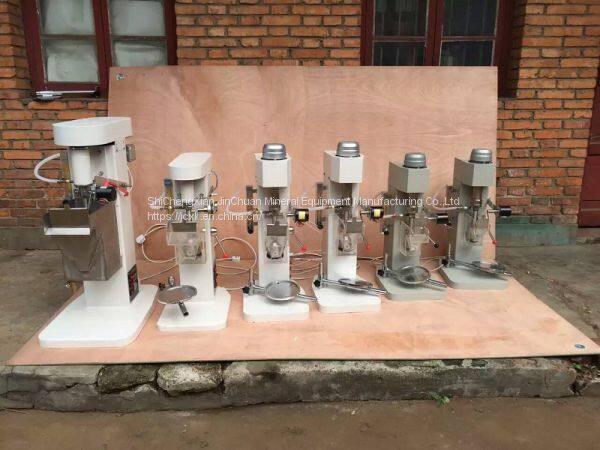

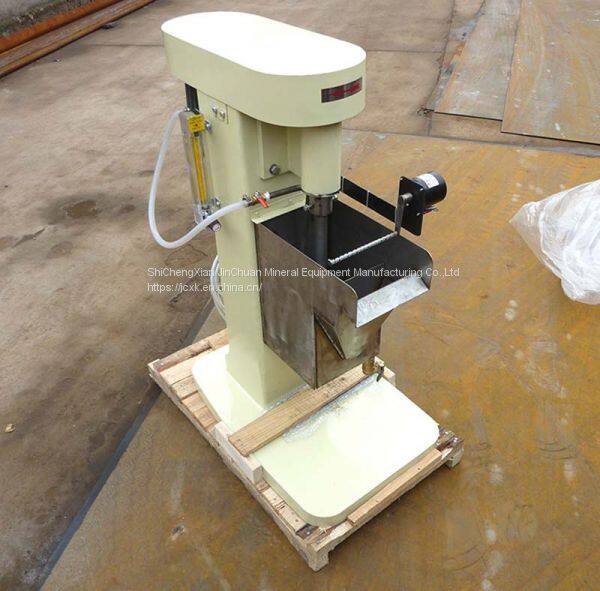

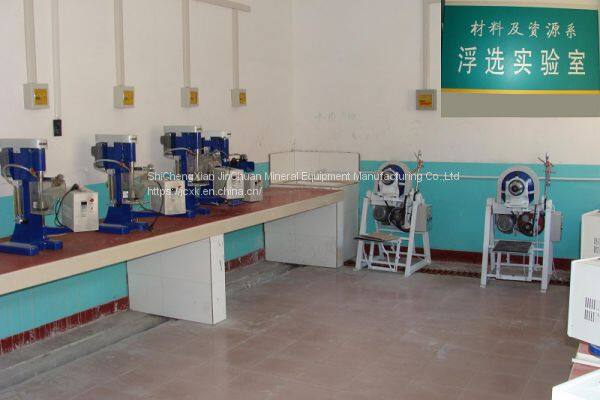

---Product Pictures
