Lab XFLB Miniature Closed Circuit Continuous Flotation Machine

---About product

  Continuous flotation machine has characteristics such as strong suction capacity and large aeration quantity. The flow of slurry and froth products and suction of air are realized through the rotation of impeller. In case of middling return caused by negative pressure, squeegee pump can be added according to actual conditions. Extension tube is needed for the adjustment of liquid level. Change the length of extension tube and the height of liquid level can be adjusted. It is easy to make adjustment without any blockage.

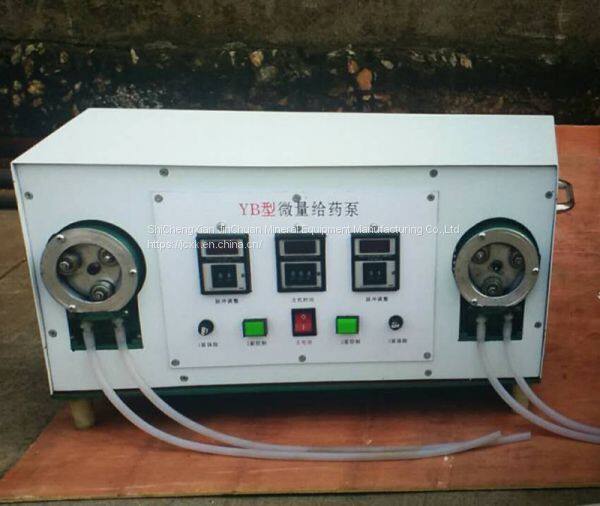

The reagent feeding machine supplies suction supporting agent, foaming agent, and regulating agent for flotation purpose.

---Application

  Lab-used Miniature Continuous Flotation Machine is applied in test of continuous flotation of minor representative samples with its test result being able to represent the results of lab. and pilot plant tests for individual unit in a small close circuit and making available mineral processing indexes for lab. and pilot plant production.

  XFLB Miniature Continuous Flotation Machine is self-suction agitated continuous flotation machine with no need or need of small amount of auxiliary equipment ,and configured equipment convenient and adjustable. It can be used for conducting tests on non-ferrous , ferrous and non-metallic minerals.

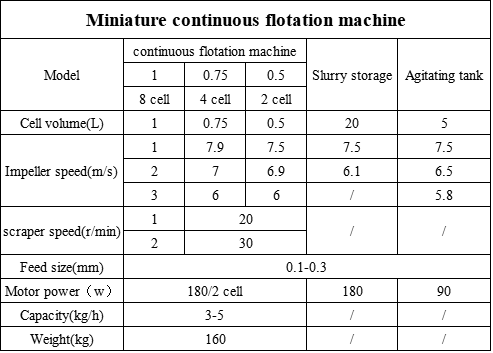

---Specification

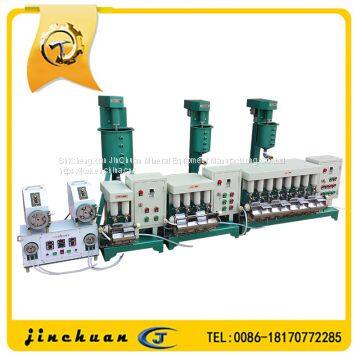

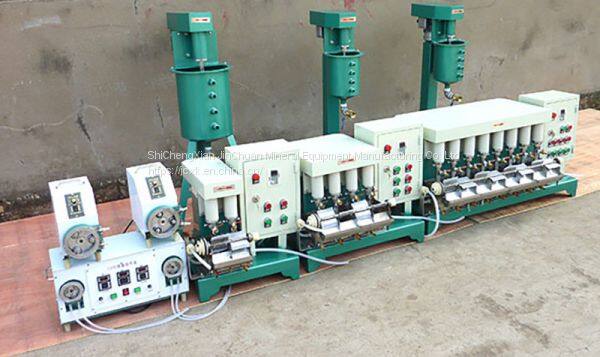

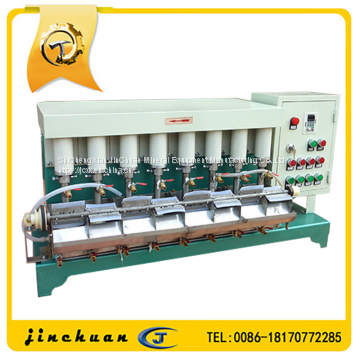

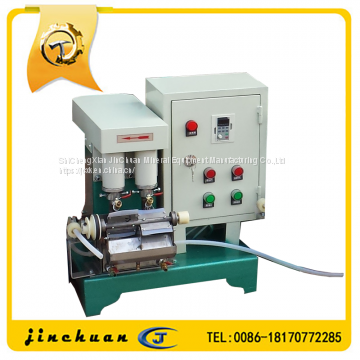

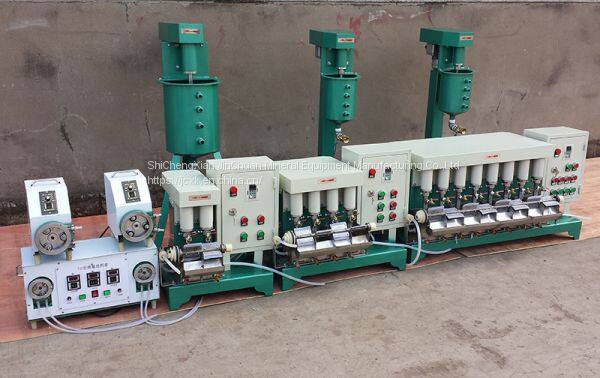

---Product Pictures
