Steel Wire Braid Thermoplastic Polyurethane Tube
Product Description
| Product name | Pu Spiral Ventilation Hose |
| Diameter | Φ25mm --- Φ500mm |
| Standard thickness | 0.9mm |
| customized size | 0.4mm,0.6mm, 1.2mm, 1.5mm, 2.0mm |
| Working Temperature | -40 ~+90°C |
| Material | wall: special Polyurethane, spiral: Flexible Steel Wire/Copper wire |
Product displyProduct size
| Specification(mm) | Thickness(mm) | Length(m) | Bending radius(mm) |
| 25 | 0.6, 0.9, 1.2, 1.5, 2 | 10/20m | 20 |
| 32 | 0.6, 0.9, 1.2, 1.5, 2 | 10/20m | 30 |
| 38 | 0.6, 0.9, 1.2, 1.5, 2 | 10/20m | 35 |
| 45 | 0.6, 0.9, 1.2, 1.5, 2 | 10/20m | 45 |
| 50 | 0.6, 0.9, 1.2, 1.5, 2 | 10/20m | 50 |
| 60 | 0.6, 0.9, 1.2, 1.5, 2 | 10/20m | 60 |
| 65 | 0.6, 0.9, 1.2, 1.5, 2 | 10/20m | 60 |
| 70 | 0.6, 0.9, 1.2, 1.5, 2 | 10/20m | 70 |
| 75 | 0.6, 0.9, 1.2, 1.5, 2 | 10/20m | 70 |
| 80 | 0.6, 0.9, 1.2, 1.5, 2 | 10/20m | 80 |
| 90 | 0.6, 0.9, 1.2, 1.5, 2 | 10/20m | 90 |
| 100 | 0.6, 0.9, 1.2, 1.5, 2 | 10/20m | 100 |
| 110 | 0.6, 0.9, 1.2, 1.5, 2 | 10/20m | 100 |
| 115 | 0.6, 0.9, 1.2, 1.5, 2 | 10/20m | 110 |
| 120 | 0.6, 0.9, 1.2, 1.5, 2 | 10/20m | 110 |
| 125 | 0.6, 0.9, 1.2, 1.5, 2 | 10/20m | 120 |
| 130 | 0.6, 0.9, 1.2, 1.5, 2 | 10/20m | 130 |
| 140 | 0.6, 0.9, 1.2, 1.5, 2 | 10/20m | 140 |
| 150 | 0.6, 0.9, 1.2, 1.5, 2 | 10m | 150 |
| 160 | 0.6, 0.9, 1.2, 1.5, 2 | 10m | 160 |
| 170 | 0.6, 0.9, 1.2, 1.5, 2 | 10m | 170 |

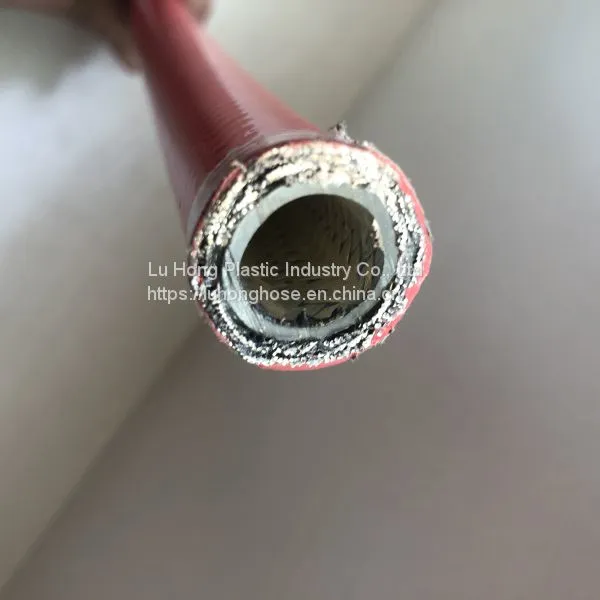

Structure:
Inner core: Nylon/Polyurethane
Reinforcement: fiber Braided
Sheath: Polyurethane (PU)
Product Application:
It is used on the machines to transfer air, dust,powder, wood chips; and also used on the road sweepers for leaf, stone,dust vacuum on the road. Universal hose for transportation of light solids and for air and gas transportation. Being food grade material Can use in food & Pharmaceuticals industries.
Features:
1. Oil resistance than rubber tube 10-20 times, can effectively prevent oil leakage due to corrosion caused.
2. High pressure, light weight, small bending radius, flexible and lightweight, easy to install design and production technology.
3. Good resistance to high temperature performance, adaptability, can be used in -40 ºC -120ºC.
4. Wall smooth, fluid resistance, low hydraulic losses.
5. Beautiful appearance, anti-pollution, the mill is more than 20 times the performance of natural rubber tube.
6. Flame retardant, impact resistance, aging resistance, fatigue resistance, non-toxic and tasteless.
7. With high flexibility, high elongation, high strength.
Use:
High voltage, low pressure hose is mainly used in machine tool, automobile, engineering machinery, motorcycles on the highpressure hose, brake oil pipe and the oil, chemical, pharmaceutical, metallurgical and other industrial automatic control in the pneumatic instrument line and so on.
