Factory directly sale pvc drip irrigation pipes
Drip pipe is an important method in irrigation.According to the requirement of the crops,the water and nutrition are gently and slowly dripped into the soil from the low pressure micro dripline.Dripline will not damage the soil srtuture
Can be applied to green house and vegetable,fruit,grape,flwoers fidlds,
Save water 50%,
Enhance efficiency 20%,
Save time 50%,
Save fertilizer 50%+.
| Cylindrical Dripline pipe | |
| Labyrinth drip tape | |
| Drip tape with inner flat emitter | |

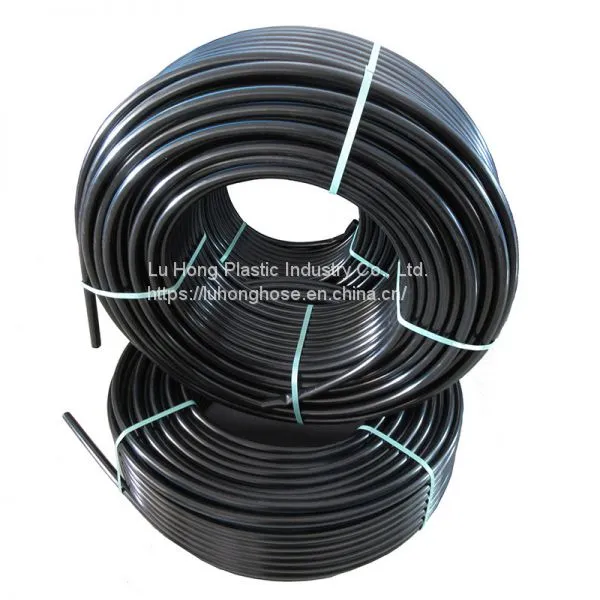

Cylindrical Dripline Pipe
| Diameter(mm) | Thineses(mm) | Distance(cm) | Flow Rate(L/h) | Working Pressure(Kap) |
| 12mm,16mm | 0.5mm-1.0mm | 30cm or customized | 1.9L/h-2.8L/h | 50-350Kap |

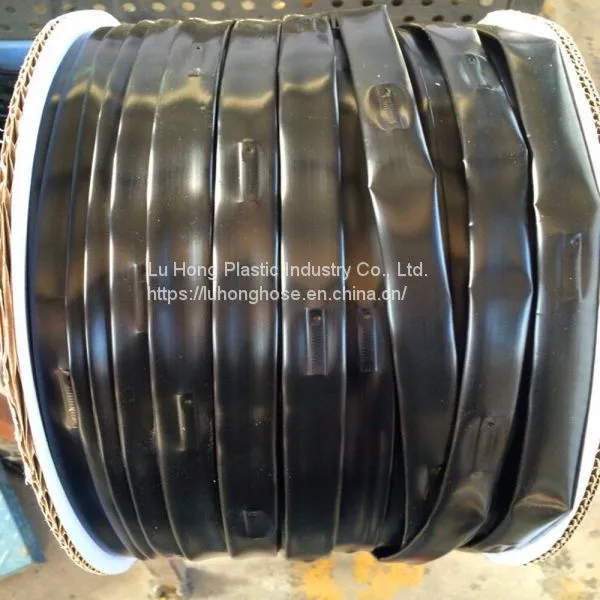

Drip Tape With Inner Flat Emitter
| Diameter(mm) | Thineses(mm) | Distance(cm) | Flow Rate(L/h) | Working Pressure(Kap) |
| 16mm | 0.2,0.3,0.4,0.6mm | 30cm or customized | 2.0L/h, 3.1L/h | 50-100Kap |
For the drip irrigation system,it is including Cylindrical Dripline pipe,Drip tape with inner flat emitter and Labyrinth drip tape(Drip pipe and Drip tape)
1.Introducation
Drip pipe is an important method in irrigation.According to the requirement of the crops,the water and nutrition are gently and slowly dripped into the soil from the low pressure micro dripline.Dripline will not damage the soil srtuture.
2.Product Features
1)Equipped with labyrinth drip head,dripper and pipe closely connected forming a channel,stable flow state,uniformity≥85%.
2)High quality mold and material for the drip head,double water hole design,reduce the particle in the soil,crop roots insert into the drip head;self cleaning,congestion proof.
3)Dripline is made by LDPE,aging and UV proof,rust proof a d sustainable.
4)Can be applied to green house and vegetable,fruit,grape,flwoers fidlds,save water 50%,enhance efficiency 20%,save time 50%,save fertilizer 50%+.
5)1.9L/h-2.8L/h two type of flow rate could be adjusted for the different crops.
6)0.5mm-1mm various thickness pipe line for different requirementsl Date
