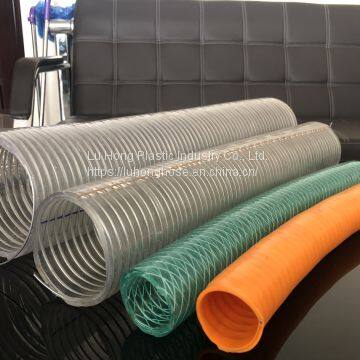

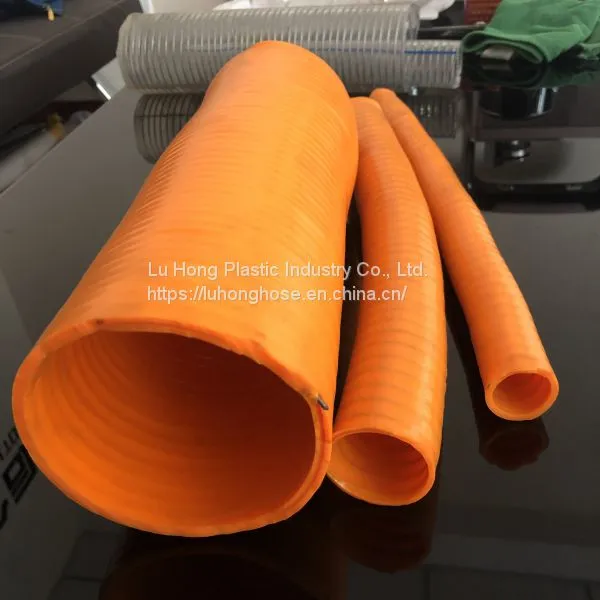

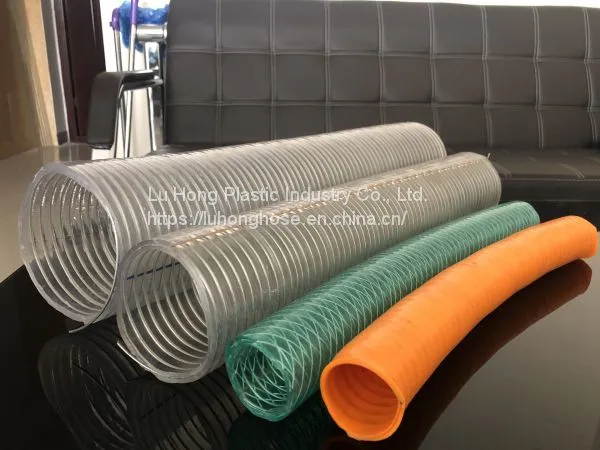

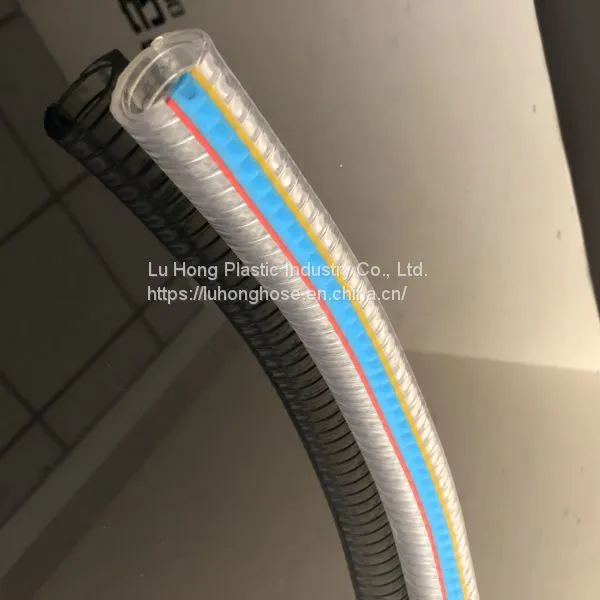

PVC Steel Wire Reinforced Hose
| INCH | ID(mm) | OD(mm) | length | weight | Working Pressure |
| 1/4'' | 6 | 11 | 100 | 11.5kgs/roll | 10-30bar |
| 5/16'' | 8 | 14 | 100 | 15kgs/roll | 10-30bar |
| 3/8'' | 10 | 16 | 100 | 17-20kgs/roll | 8-24bar |
| 1/2'' | 12 | 18 | 100 | 22kgs/roll | 8-24bar |
| 5/8'' | 15 | 22 | 50 | 30-32kgs/roll | 8-24bar |
| 3/4'' | 20 | 26 | 50 | 16-18kgs/roll | 7-21bar |
| 1'' | 25 | 33 | 50 | 27kgs/roll | 7-21bar |
| 1-3/4'' | 45 | 56 | 50 | 65kgs/roll | 5-15bar |
| 2'' | 50 | 62 | 50 | 75-80kgs/roll | 5-15bar |
| 3 | 16 | 90 | 30 | 90-105kgs/roll | 4-12bar |
| 4 | 102 | 116 | 20 | 93-96kgs/roll | 4-12bar |
| 5 | 127 | 143 | 20 | 120kgs/roll | 3-9bar |
| 6 | 152 | 170 | 20 | 170kgs/roll | 3-9bar |
| Product Name | PVC Reinforced Steel Wire spring hose |
| Material | PVC |
| Color | gray, black, or customized |
| Standard | ROHS |
| Length | customized |
| Temperature | -10℃ to 60℃ |
| Used | pumping liquids, granules and powders of industrial water, oil, chemical raw materials, low-concentration chemical |
Application:
The hose is widely used for suction and discharge of water,oil and powder in the factories,agriculture,engineering,foodstuffs and sanitation lines,the hose used for foodstuffs is made of special material.It is non-toxic,light,without odor and transparent.
The hose can be used for conveying milk,beverage,distilled liquor,beer,jam and other foods.We can also insert the cooper wire into hose.This hose can avoid the block of the flowing in the hose due to static,and protect users from getting electric shock or electric current impingement.
Characteristics:

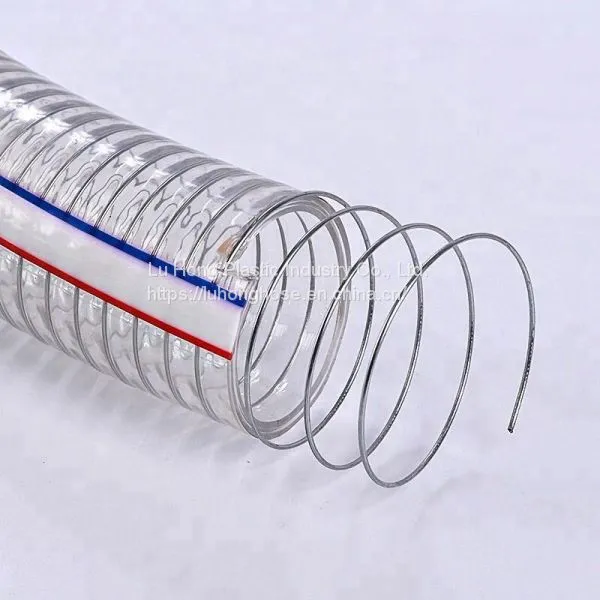

This hose,with steel wire screwing inlaid in the hose,is light,transparent,with small bending radius.
It has good adaptability to hard weather conditions and vacuum pressure.
With colorful symbol lines on the surface of the hose,it can be beautiful.
Temperature range:-10℃ to +70℃
