Soft corrosion resistance 3 inch lay flat irrigation hose
Production information
Material |
PVC |
Thickness |
2mm or as per your requests |
Length |
30/50/100M |
Specifications |
1"-12" or custom |
Color |
Blue, Red, Yellow or as customer request |
Characteristic |
Stretching resistant, larger water discharge |
Working Temperature |
-10°C to+65°C |
Application |
Garden, community, factories and mines, family |
Working Pressure |
2--8bar |
Payment |
30% T/T prepayment, 70% within 7 days after see copy of B/L |
| LHCODE | INCH | Metric Measurement | Lenght | Pressure(kgf/m3)(Bar) At23℃ | ||
| I.D.mm | THI.mm | m/roll | W.P.Bar | B.P.Bar | ||
| LH121 | 1'' | 25 | 1.3 | 100 | 4 | 15 |
| LH122 | 1-1/4'' | 32 | 1.2 | 100 | 4 | 15 |
| LH123 | 1-1/2'' | 38 | 1.2 | 100 | 4 | 15 |
| LH124 | 2'' | 51 | 1 | 100 | 4 | 12 |
| LH125 | 2-1/2'' | 64 | 1.1 | 100 | 4 | 12 |
| LH126 | 3'' | 76 | 1.1 | 100 | 4 | 12 |
| LH127 | 4'' | 103 | 1.25 | 100 | 4 | 12 |
| LH128 | 5'' | 127 | 1.35 | 100 | 4 | 10 |
| LH129 | 6'' | 153 | 1.35 | 100 | 3 | 9 |
| LH130 | 8'' | 203 | 2 | 100 | 3 | 9 |
| LH131 | 10'' | 255 | 2.4 | 100 | 3 | 7 |
| LH132 | 12'' | 305 | 2.35 | 100 | 2 | 6 |
| LH133 | 14" | 358 | 3 | 50 | 2 | 6 |
| LH134 | 16" | 408 | 3 | 50 | 2 | 6 |
LIGHT DUTY LAYFLAT HOSE ( 4BAR )
Irrigation in agriculture and transfer liquid in industry.
Once-molded by extruber plastic .Small thickness,light weight,high pressure resistance.
Anti-chemical,anti-aging.
Suitable for drip irrgation system.
MEDIUM DUTY LAYFLAT HOSE ( 6BAR）
Use for irrigation in agriculture and transfer liquid in industry.
Higher pressure resistance.
Good abrasion resistance.
Suitable for drip irrgation system.
HEAVY DUTY LAYFLAT HOSE ( 8/ 10BAR)
Discharge sludge in agriculture,construction,industry,mining and marine service etc.
Reinforced with specialized industrial polyester yarn,High pressure resistance.
Suitable for drip irrgation system.
Anti-uv.
Construction of PVC Layflat Hose:
PVC layflat hose is constructed with 3 plies of polyester yarns, one latitudinal ply and two longitudinal plies. Both tube and cover are extruded simultaneously to maximize bonding of the hose.
Features of PVC Layflat Hose:
1. Great durability mainly given by the reinforcement and high-density PVC material.
2. Extra thickness are added in order to prevent bursting due to pressure in heavy industry.

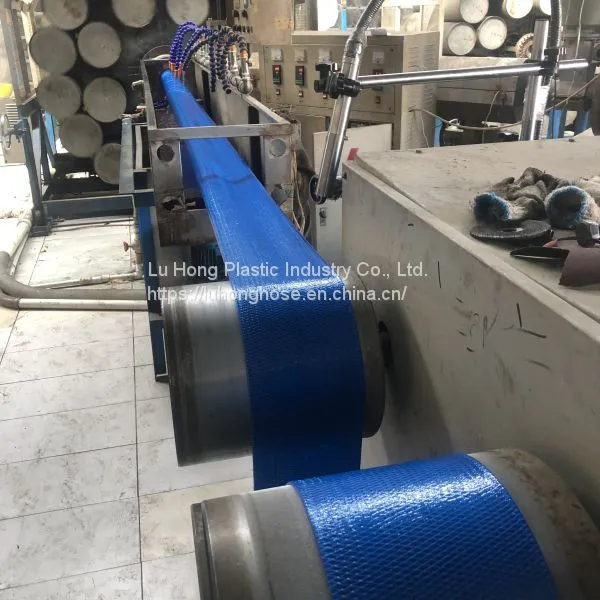

3. Manufactured by one step extrusion technology, higher working pressure, longer working life, different from plastic coated PVC layflat hose.
4. PVC Layflat Hose can be easily rolled up, stored and reused, as it has a very durable construction.
5. All colors are available, beautiful appearance.
6. Temperature range: --5~65ºC(23~149ºF)
Applications of PVC Layflat Hose:
PVC layflat hose is widely used for drainage in the fields of agriculture irrigation, gardening irrigation,forestry sprinkler irrigation, construction project, industrial and mining.
Package of PVC Layflat Hose:

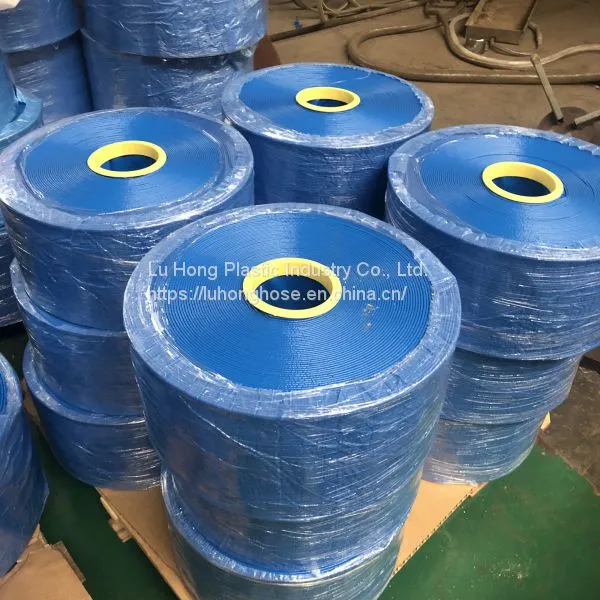

PVC layflat hoses are wrapped by plastic woven cloth, with both sides covered by carton board, fix with ropes or packing straps.
