coating machine

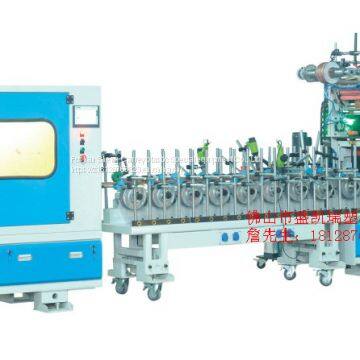

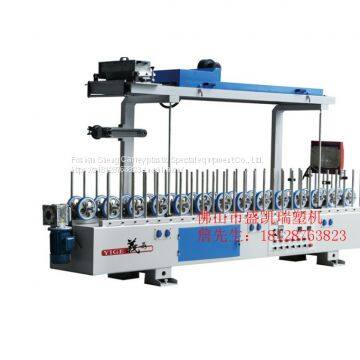

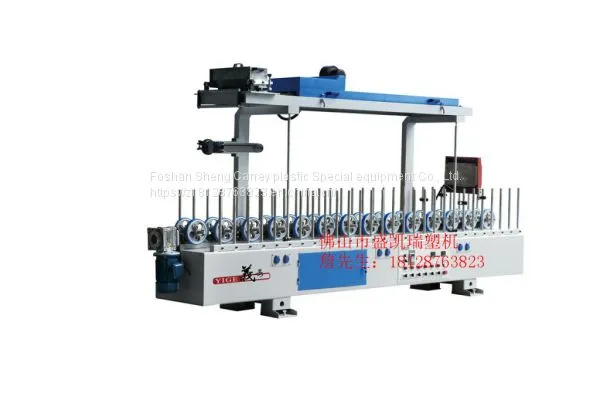

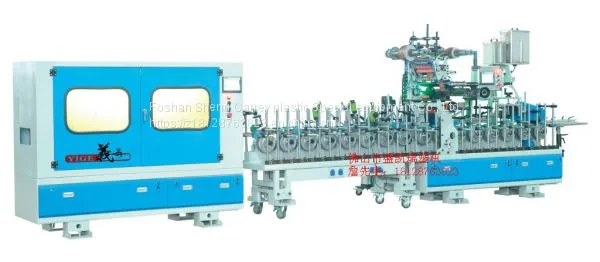

Basic parameters of skr-300 integrated PUR cladding machine:

1. The frame is made of high-quality copper plate, connected with screws to avoid the deformation of the frame caused by welding. The high-precision gear is rotated.

2. Adjustable lifting rubber plate, the rubber plate can be adjusted according to the height of the workpiece, so that the Angle between the wood and the workpiece is small, more easy to cover.

3. The bottom wheels are all made of silicon rubber aluminum wheels, with good wear resistance, non-stick hot melt adhesive, and long service life.

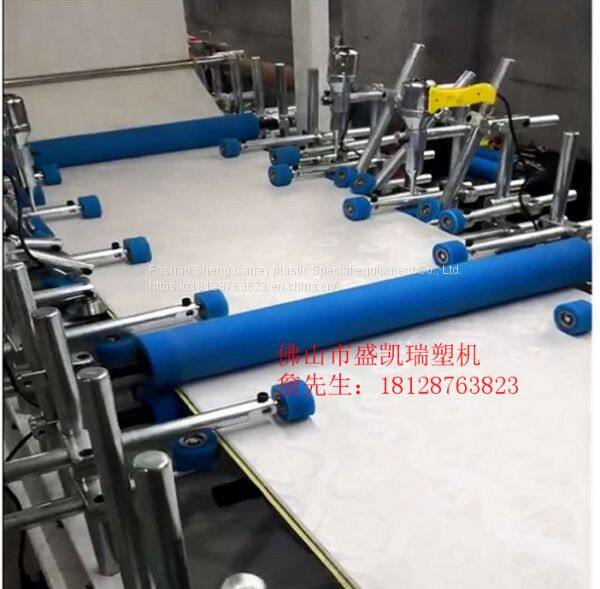

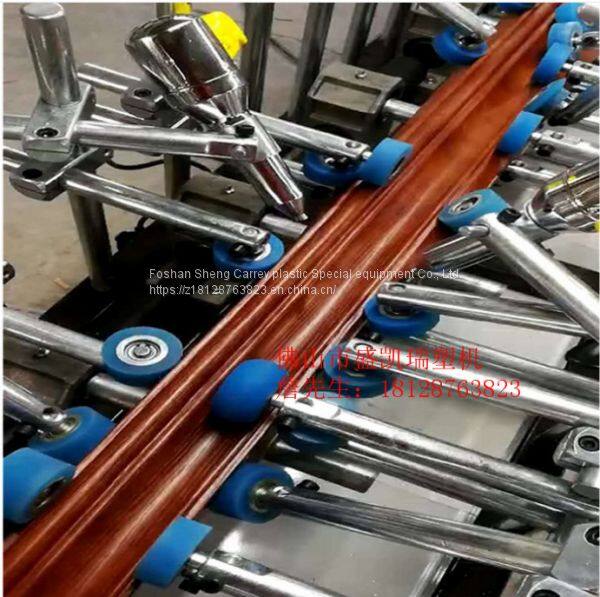

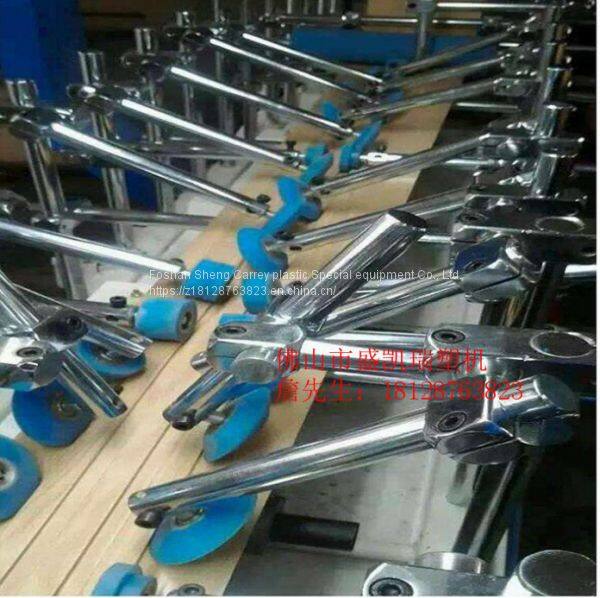

4. Veneer pressing wheels with different angles are used to cover and press the workpiece. In the process of processing, the speed and coating pressure can be adjusted according to the differences of veneer material and coating material.

Features and application of leng glue coating machine: it is specially used for covering PVC film, melamine paper, artificial wood skin and solid wood skin on the surface of decorative strips, aluminum and plastic materials.With high standard adhesive coating, it can be coated with various angles, arcs, concave and convex surfaces, pressure grooves, edging, etc.Suitable for building materials, furniture, desktop, doors and Windows, decorative strips or related professional manufacturers.Can achieve the perfect surface processing of complex shape products.

Technical parameters:

Laminating width: 300mm

Laminating width: 12mm

Processing thickness: 90mm

Processing length: 70mm

Film roll diameter: 400mm

Material delivery speed: 2-25m/min

Total power: 11.5kw

Overall dimensions: 5000*600*1800mm bag

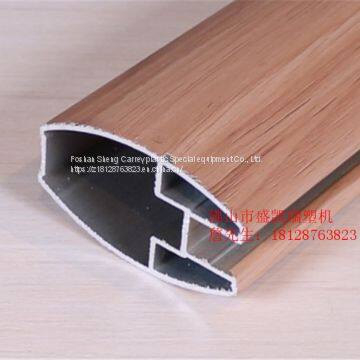

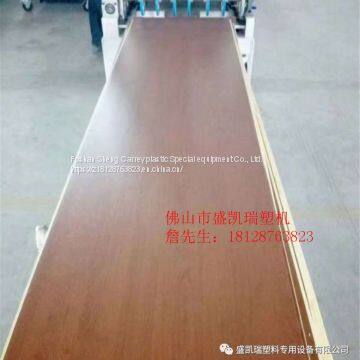

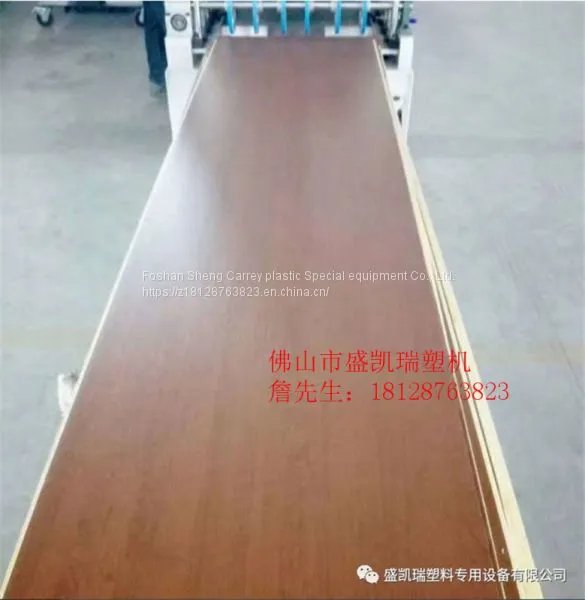

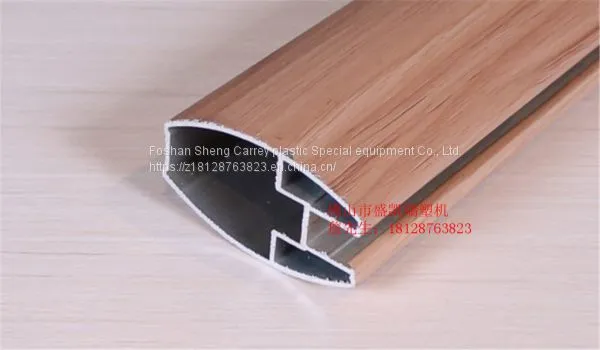

It is suitable for the production of PVC, decorative paint paper and solid wood veneer on the surface of wood, aluminum-plastic profile and foaming material.The coating equipment replaces the traditional painting process, and is used for the production of surface sticking of door cover line, toe line, gusset plate, curtain rod, window sill, aluminum alloy doors and Windows, photo frame, etc.
