MMCNC LJJA-500 Saw Cutting of Aluminum and Price

iron frame,plywood case,it depends on customer

Corner Connector Automatic Heavy-duty Cutting Saw

LJJA-500

This machine is mainly used for corner connector of aluminum profile and plastic profile cutting.A single clamping,can realize continuous cutting angle of 6 m code section.

1.Equipment Features

1.1   ·It has features of easy opertion,reliable performance,advanced technique and convenient maintenance etc.

1.2   ·Used for corner connector of aluminum profile and plasitic profile cutting

1.3   ·Only one time clamping, can achieve 6 meters corner section bar continuous cutting

1.4   ·The use of imported control system, control system adopts the man-machine interface, high automation degree

1.5   ·The tool adopts hard alloy saw blade, motor power, high cutting speed, high productivity, high precision machining

1.6   ·Feed motion using linear motion bearing small movement resistance of high precision

1.7   ·Feeding mechanism of automatic feeding system is stable and reliable with high efficiency

1.8   ·Work clamping, cutting and uses the pneumatic control system, convenient operation, safety and reliability, high productivity

1.9   ·Adopted the electrical motor protect device to improve the safety

2. Technical Parameter

2.1   Power supply  380V/50Hz

2.2   Motor power  3.0kw

2.3   Motor rotary speed  2800r/min

2.4   Working air pressure  0.5~08MPa

2.5   Auto feeding length  5~500mm

2.6   Cutting width x height  135x300

2.7   Saw blade specification  Φ500 x Φ30

2.8   Contour dimension  2340x1400x1200mm

2.9   Weight about  510kg

Parameters:

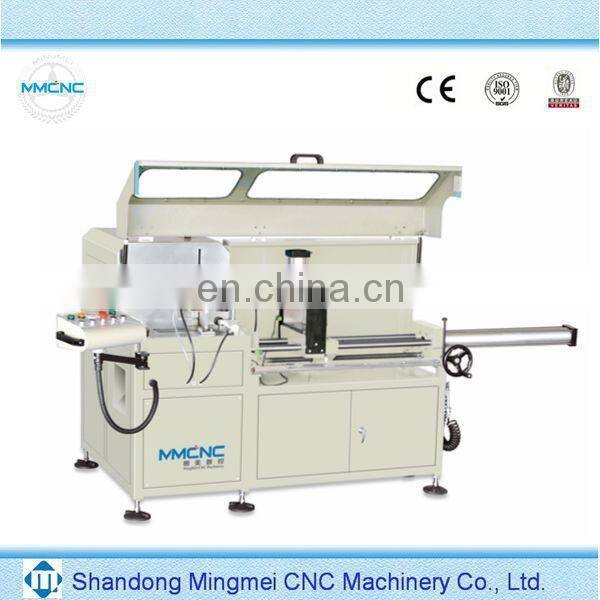

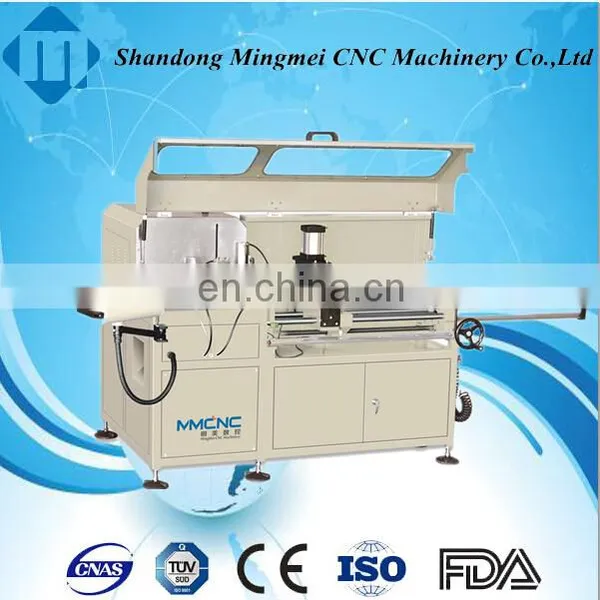

 3.Picture of machine

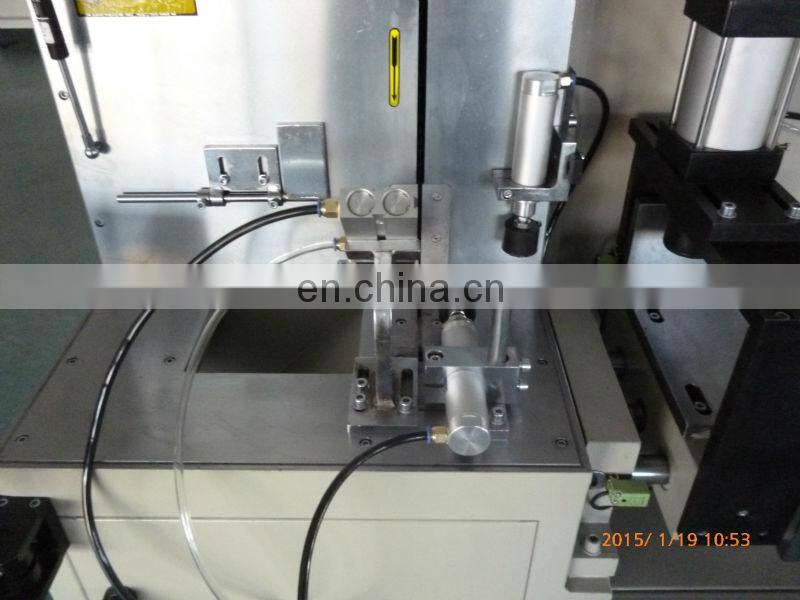

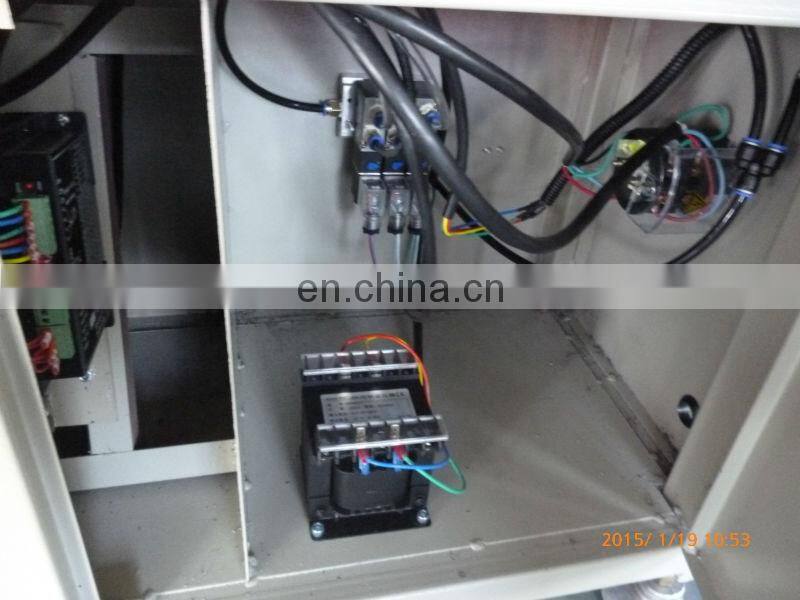

4.Detailed picture

Our machine in the exhibition

Delivery Picture

Why Choose our factory

Company Profile

Sinon CNC Machine Co., Ltd.

Based on the principle of "people-oriented, honesty first", we have set up more than ten offices all over the country, equipped with sales and service engineers with rich experience in industry services, providing reliable technical services and product sales consultations at any time. Our aluminum door and window equipment, plastic steel door and window equipment, insulating glass equipment, glass deep processing equipment have been exported to the United States, Russia, Canada, Mexico, United Arab Emirates, Indonesia, Mauritius, Yemen, Vietnam, North Korea, Saudi Arabia and other nearly 30 countries and regions. , deeply praised by foreign users. As a professional manufacturer of door and window equipment, plastic steel door and window equipment, aluminum door and window equipment, insulating glass equipment and glass deep processing equipment, we rely on our own scientific research strength to continuously update and improve product quality and service. We are looking for friends in the door and window industry with more competitive prices and more thoughtful after-sales service.
