Corner Connector Automatic Heavy-duty Cutting Saw
LJJAS-500
This machine is mainly used for corner connector of aluminum profile and plastic profile cutting.A single clamping,can realize continuous cutting angle of 6 m code section.
1.Equipment Features
1.1 ·It has features of easy opertion,reliable performance,advanced technique and convenient maintenance etc.
1.2 ·Used for corner connector of aluminum profile and plasitic profile cutting
1.3 ·Only one time clamping, can achieve 6 meters corner section bar continuous cutting
1.4 ·The use of imported control system, control system adopts the man-machine interface, high automation degree
1.5 ·The tool adopts hard alloy saw blade, motor power, high cutting speed, high productivity, high precision machining
1.6 ·Feed motion using linear motion bearing small movement resistance of high precision
1.7 ·Feeding mechanism of automatic feeding system is stable and reliable with high efficiency
1.8 ·Work clamping, cutting and uses the pneumatic control system, convenient operation, safety and reliability, high productivity
1.9 ·Adopted the electrical motor protect device to improve the safety
2. Technical Parameter
2.1 Power supply 380V/50Hz
2.2 Motor power 3.0kw
2.3 Motor rotary speed 2800r/min
2.4 Working air pressure 0.5~08MPa
2.5 Auto feeding length 5~700mm
2.6 Cutting width x height 135x300
2.7 Saw blade specification Φ500 x Φ30
2.8 Contour dimension 1700x1400x1220mm
2.9 Weight about 504kg
Parameters:
Power supply |
380V/50Hz |
Motor power |
3.0kw |
Motor rotary speed |
2800r/min |
Working air pressure |
0.5~08MPa |
Auto feeding length |
5~700mm |
Cutting width x height |
135x300 |
Saw blade specification |
Φ500 x Φ30 |
Contour dimension |
1700x1400x1220mm |
Weight about |
504kg |

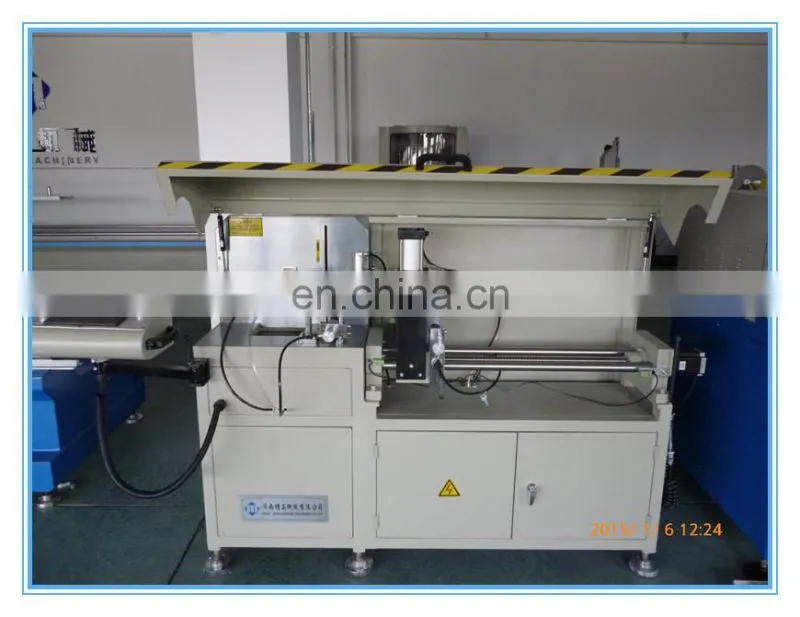

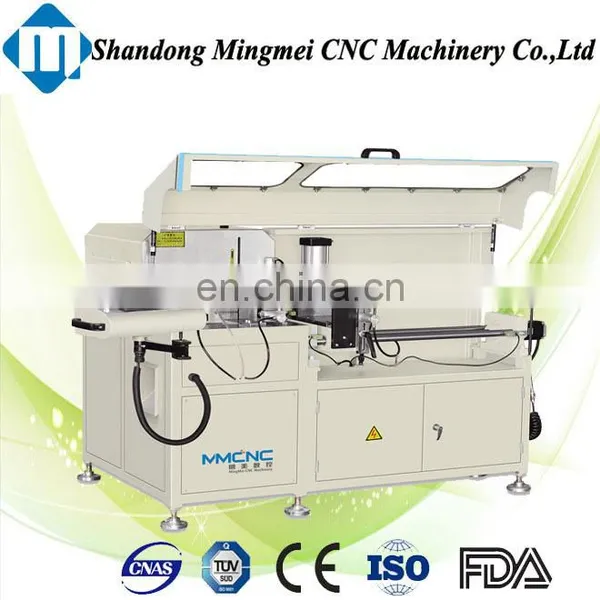

3.Picture of machine

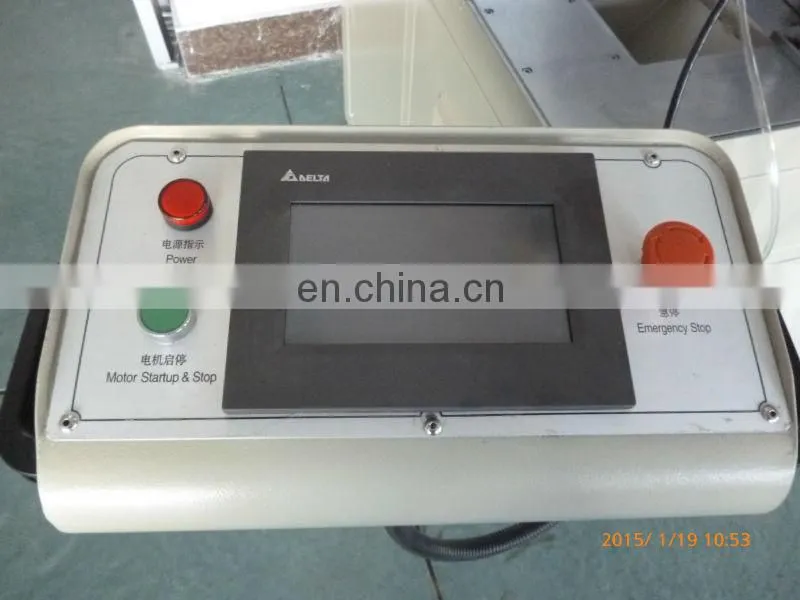

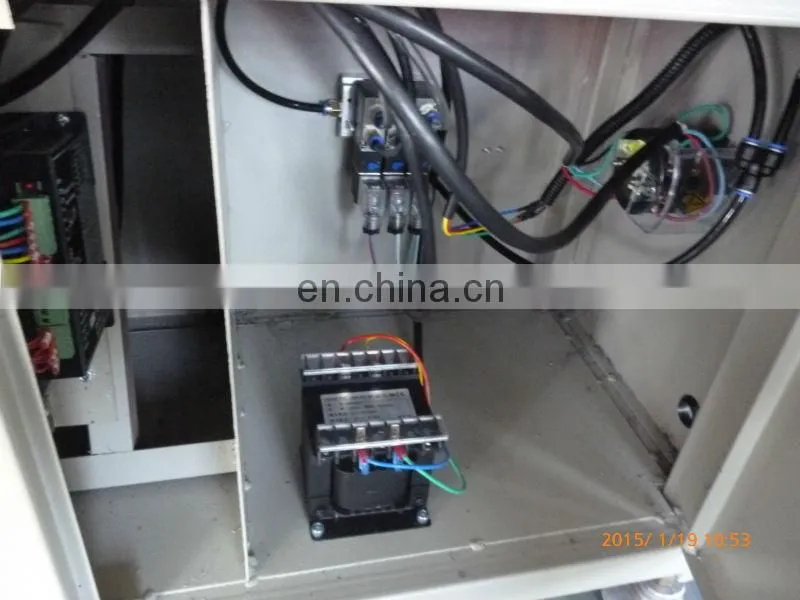

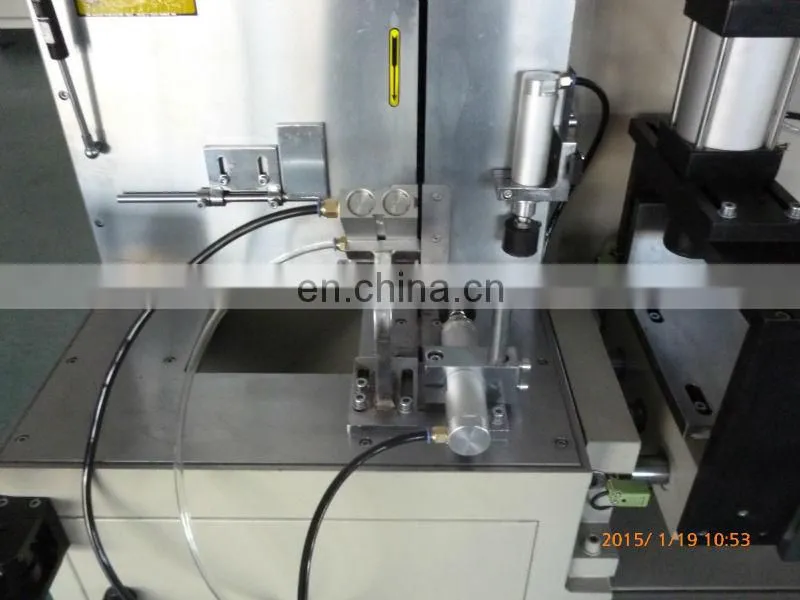

4.Detailed picture
Our delivery
After sales service:
1. 12 months guarantee of the whole machine,We will provide the consumable parts at an agency price when you need replacement.
2. Our engineer could support you technology to your contry if necessary.
3. Our enginner could service on weekend even on vacation.
4. Our engineer could train you on at our factory for free.
5. Our engineer could service you 24 hours online by skype, yahoo, msn, QQ, or by cellphone.
Warranty :
#we have sincere raw material suppliers, all of our raw material are original, not copy.
# Every cnc router machine must be tested before delivery for 8 hours , all of them are absolutely qualified.
# Main parts of cnc router (excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
#In the processing of cnc router production, our professional technical engineers inspect the processing to ensure the quality of products CNC router machine inner control system
