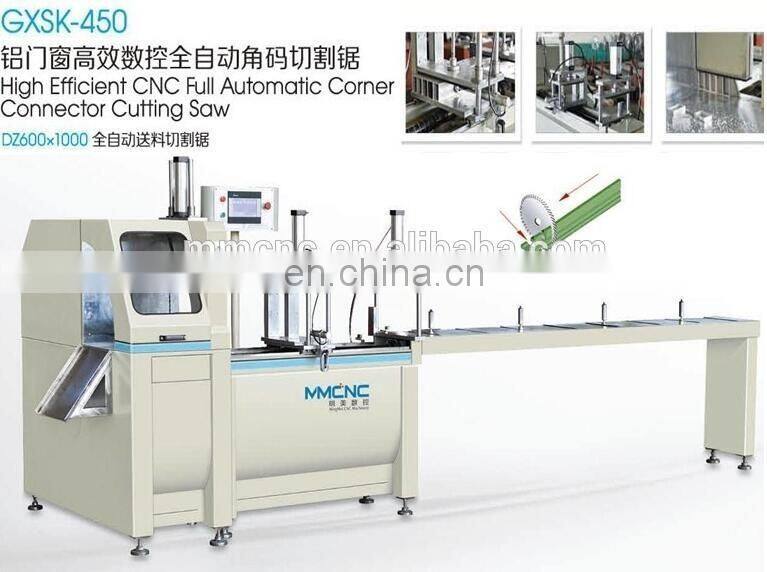

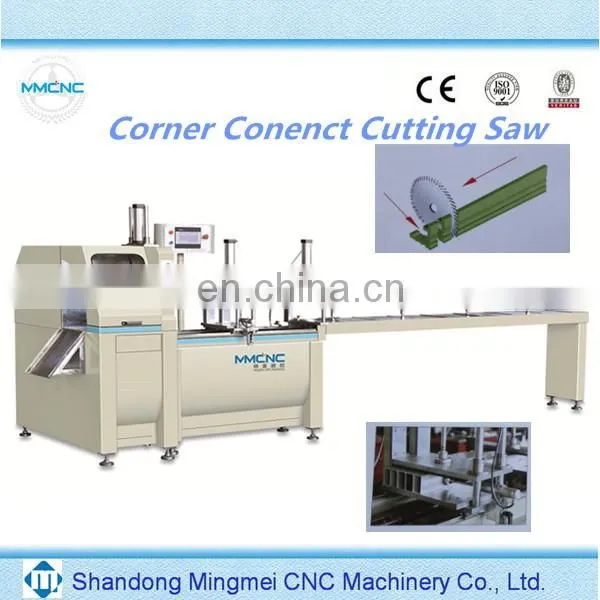

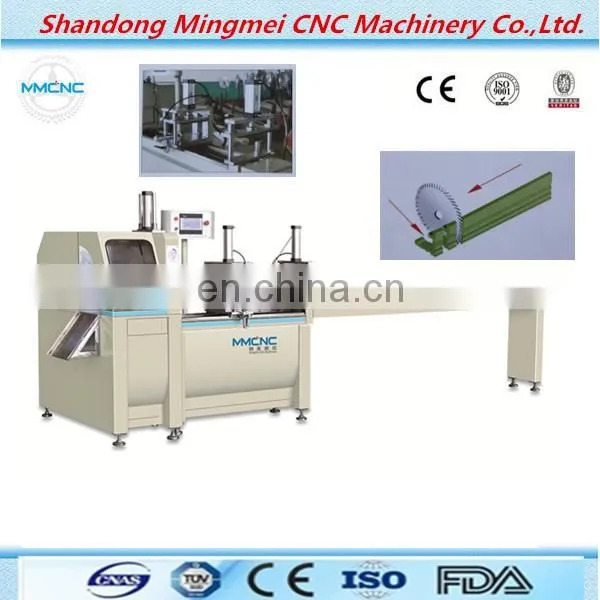

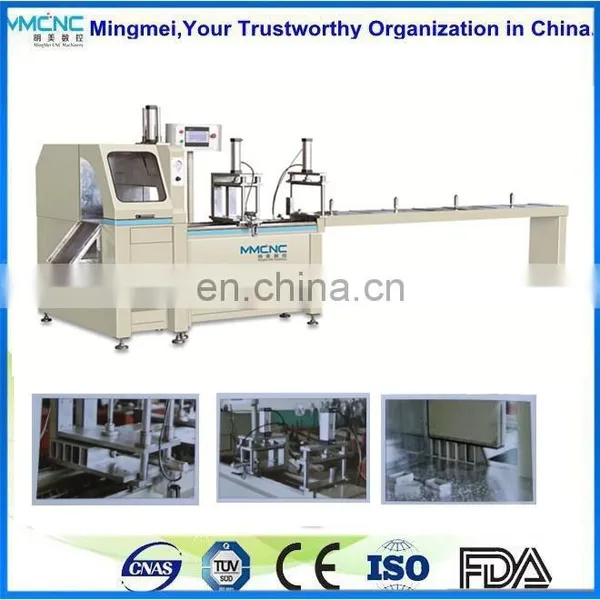

High Efficient CNC Full Automatic Corner Connector GXSK-450
Asopt spindle motor direct ultra-thin hard alloy carbide tooth saw blade,high transmission efficiency,high machining precision,high material utilization
Equipment Features |
It is our new developed machine, which is welcomed from our clients. Forward and backward profile butt joint without tailling, when the profile was cutting. In addition, the thickness of the blade is 2.6mm(old type: 4.4mm), so it saves the profile and improve the work efficiency.
♣ Adopt spindle motor direct drive ultra-thin hard alloy carbide tooth saw blade,high transmission efficiency,high machining precision,high material utilization.
♣ The kinematic pair of cutting part adopts linear guide,the kinematic pair of automatic feeding adopts ball screw. Stable operation,high precision.
♣ With the function of automatic counting.
♣ With the device of spraying, which could improve the processing precision and prolong the service life of saw blade.
♣ Forward and backward profile butt joint without tailing, when the profile was cutting.(Patent No.:ZL 2015 20423765.6)
Specific |
1 |
Input power |
3.0Kw(Main spindle motor) |
2 |
Power supply |
380v/50hz |
3 |
Air-pressure |
0.5-0.8MPa |
4 |
Motor rotary speed |
2800r/min |
5 |
Saw Blade specification |
Φ500xΦ30 mmx2.6 |
6 |
Saw blade feeding speed |
0-3m/min |
7 |
Cutting length |
5mm-1000mm |
8 |
The length of auto-feeding |
5-1000mm |
9 |
Overall dimension |
2500x1200x1650mm (Converyor:5400mm) |
10 |
Weight |
780kg |

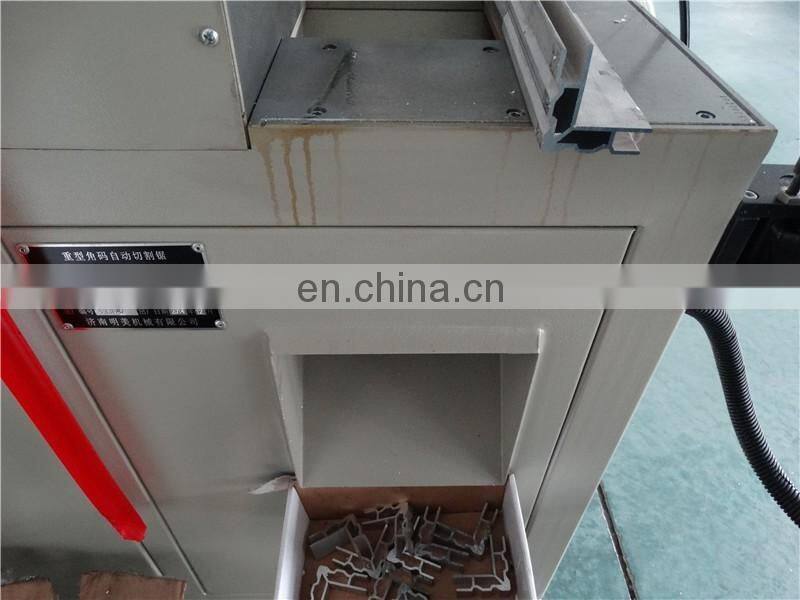

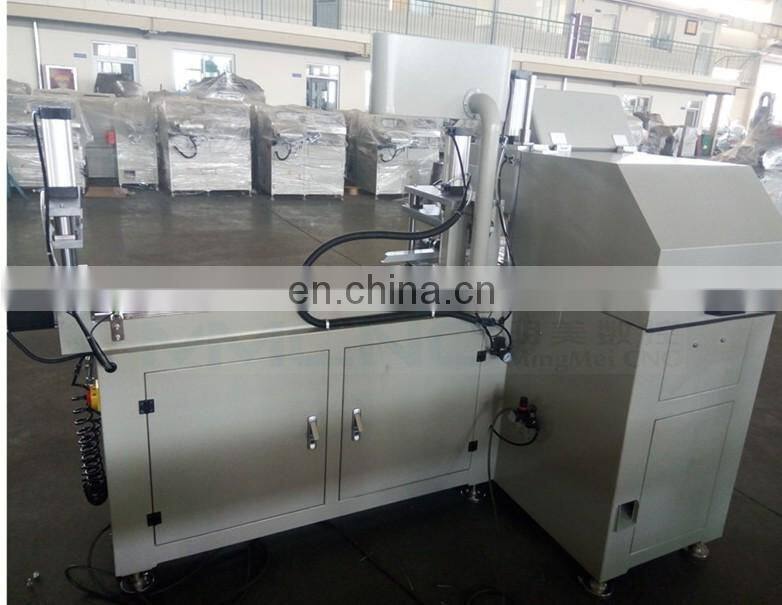

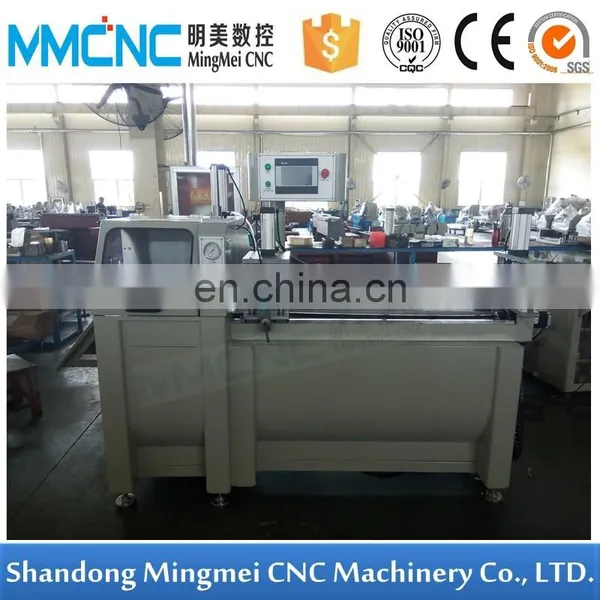

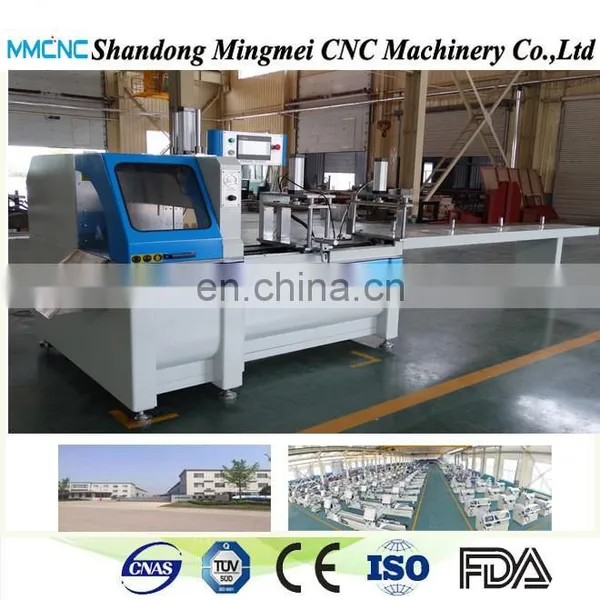

The machine in the factory |

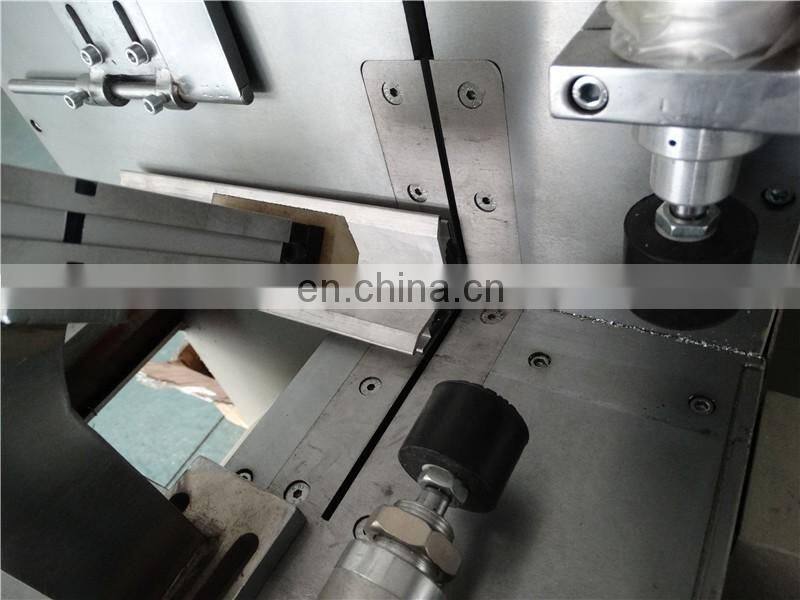

The machine | |
|

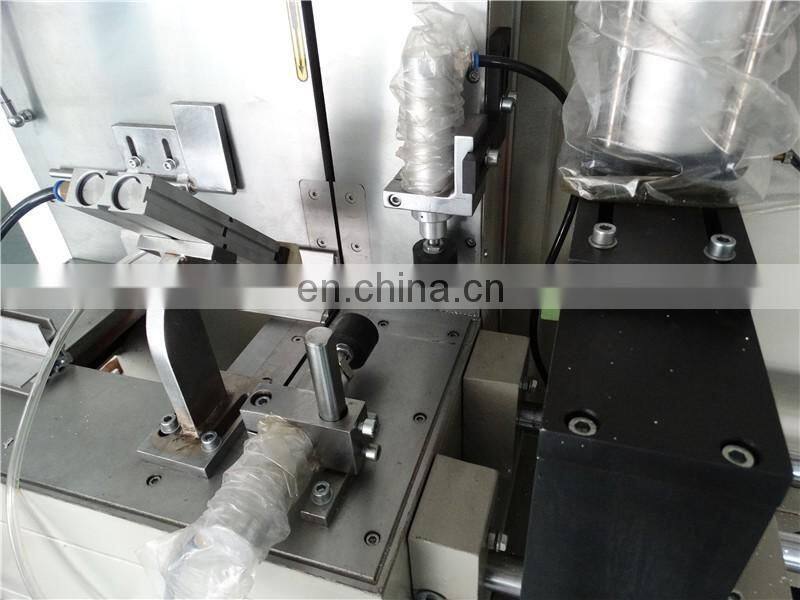

The cylinder

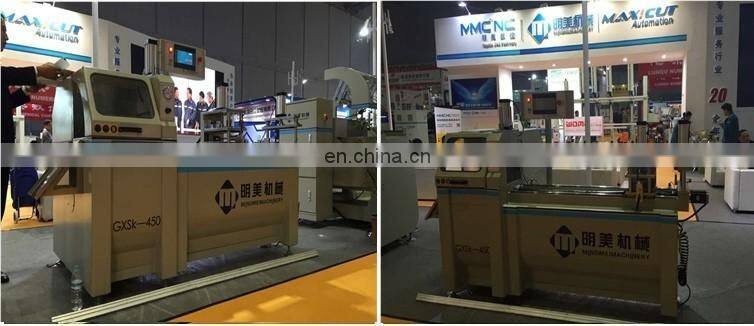

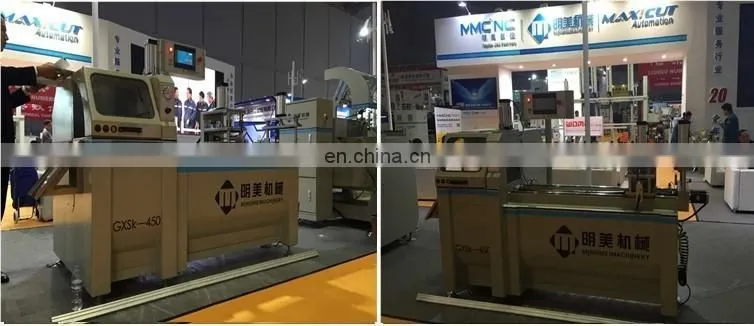

The machine on the Exhibition
|
Shandong Mingmei CNC Machinery Company |
MMCNC was found in 1995,which is a modern private enterprise specialized in technology
development,machinery manufacture and product sales.Company cover an area of 70000
square meters and 200 staffs.
MMCNC machine include Processing machine for making aluminum PVC window and door a
s well as curtain wall, such as---
Double head Cutting Saw;Corner Crimping Machine;End miller;Copy router;PVC Welding Machine;Corner Cleaning Machine; we also produce CNC Router etc.which these machine
have got CE,ECM,EEC authorization .and it has won good market reputation.
Questions and answer:
♥Q1.how to get the most suitable machine and best price
please tell the material you want to working on ?
How to working on it ? Engraving ? Cutting ? Or other ?
What’s the MAX size of these material ?( length ? Width ? Thickness ?)
♥Q2: Do you have the manual of machine.
Yes,we have
♥Q3.If we donot know how to use the machine,can you teach us?
Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if
you are busy ,we will have the special engineer to your country,but you need to bear some fee,like
tickets and hotel and meal.
♥Q4.How about your after-sales service?
we offer you 24 hours service phone,skype or MSN.
♥Q5.How about your guarantee period?
one year and during the time,if you have any questions ,we will solve it for free.
♣1. When can we arrange shippment?
We usually arrange shippment within 15 days after getting deopsit,
but customized machines should be more than 25 days.
♣2.What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can send our engineers to repair your machines
♣3.Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passport.
♣4. If I make Aluminum window and door, how many basic machines do i need?
1).double head cutting saw
2).Lock hole copy milling machine
3).End milling machine
4).Automatic Corner connector automatic cutting saw
5).Single head Corner combining machine
