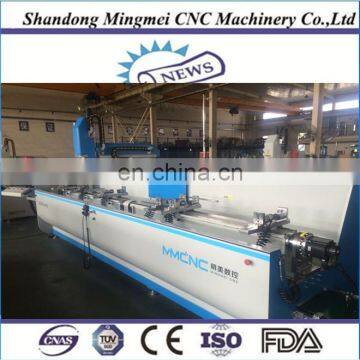

Aluminum profile 3+1 Axis CNC Drilling Milling Machine
SKX3+1-CNC-3000
1.Equipment Feature
♦This machine is designed for processing round holes, slots, keyhole etc on aluminum profile,
windo-wdoor and curtain wall industry, it is also suitable for processing milling, chamfering and
other procedure.
♦Adopting highpower closed loop spindle servo motor, it was directly connected with the Taiwan
high-precision mechanical spindle.
♦Using the latest Taiwan 10.4 inch display screen, 21MA SYNTEC servo control system. After
power outages, it can continue processing when have electric power. This machine have
professional CAM processing software.
♦Using the disc type blades storage, 16 blades capacity, only need 3 seconds for changing blade, greatly improved the efficiency of changing blades.
♦Adopting famous high-precision ball screw, rail and rack.
♦Double position design, putting on and taking down profile separately without stop, have much
higher processing efficiency.
♦Centralization lubrication adopt intermittent supply system, Blades adopt system control spray
pump cooling device.
♦Equipped automatic memory on blades device system.
♦The main electrical parts: circuit breakers, AC contactor are all SCHNEIDER brand.
♦The main components adopt steel structure and they are all through aging treatment.
2.Technical Parameters
2.1 |
Power supply |
380V50Hz |
2.2 |
Working pressure |
0.5~0.8MPa |
2.3 |
X-axis journey |
3000mm |
2.4 |
Y-axis journey |
500mm |
2.5 |
Z-axis journey |
350mm |
2.6 |
Total power |
6kw |
2.7 |
Main axis power |
3KW |
2.8 |
Overall dimension |
4180*1600*2200mm |
2.9 |
Weight |
1400kg |

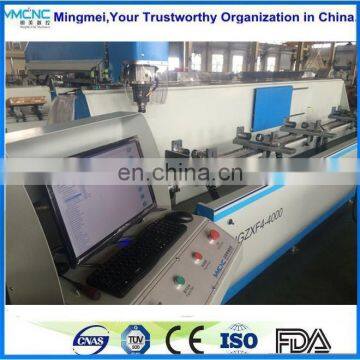

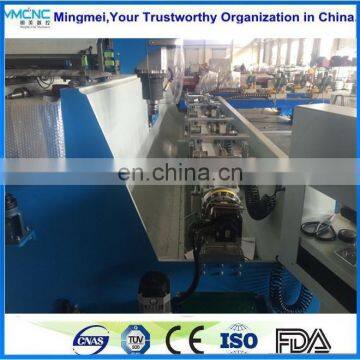

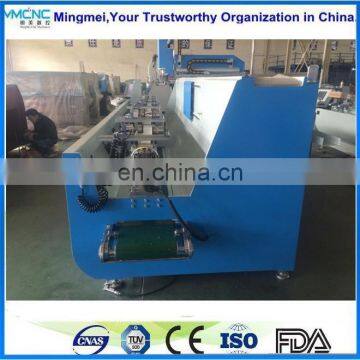

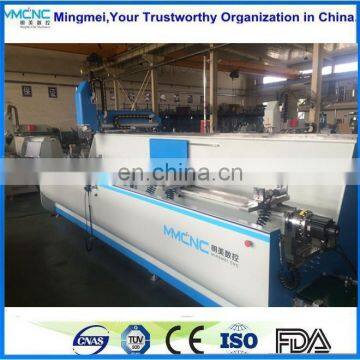

3.Detail Photos
4. Drilling Sample (The sample after work)
5.Competitive Advantage
♣Top quality and best price(we have strick quality control system,so the high quality and best price will make great profit for you)
♣Professional service(your design,your brand,your ideas will be made within our cooperation to satisfy your need)
♣Quick response (if we receive your any requests about our products or company,
we will give you reply with 10 hours)
♣Friendly relationship(we believe good relationship always relate great service,and
good suggestions will be appreciated)
6.Certificates
7. Factory
Our delivery
