Aluminum Profile Machining Center Cutting Saw Equipment for Pvc Window

Name: Aluminum Profile Machining Center Cutting Saw Equipment for Pvc Window
Brand: Shandong Mingmei
Availability: InStock

FOB Price

US$ 3,550 - 6,800 / Set

1 Set(Min. Order)

Port qingdao
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name

Shandong Mingmei

Model Number

LJZ2-450 X 3700C

Packaging Details

iron frame,plywood case,it depends on customer

Product Description

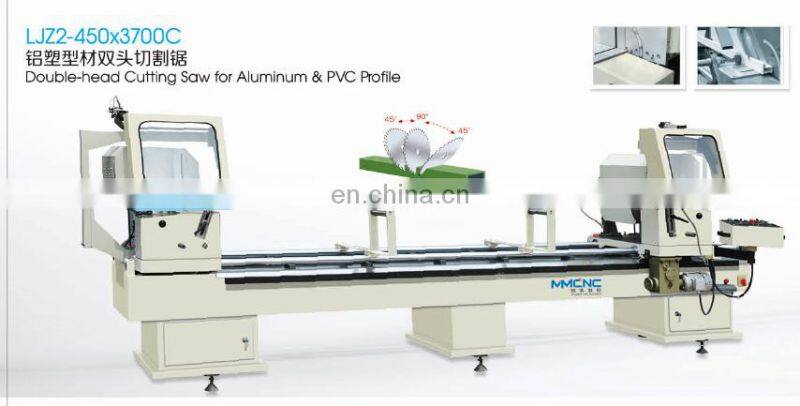

Aluminum & UPVC Double Head Cutting Saw Machine

SJZ2 450X3700C

1. Feature

1.1 The machine is used for cutting of aluminum profile

1.2 Imported carbides blade is of accurate processing and high endurance

1.3 The two heads can work alone,can also work at the same time

1.4 To cut out a section of desired length and two end angles

1.5 Right head adopts motor drive

1.6 Two saw head can be manually switching angle,realize the -45 degrees,90 degrees,45 degrees angle cutting profile.

2. Technical Parameter

2.1 Input power: 3.55kw

2.2 Power supply: 380V/5Hz

2.3 Air pressure: 0.5~0.8MPa

2.4 Motor rotary speed: 2800r/min

2.5 Saw blade specification: φ450xφ30

2.6 Cutting angle: 45°~90°~45°

2.7 Cutting length: 680~3700mm

2.8 Cutting width x height: 120 x 160mm

2.9 Overall dimension: 4600 x 1300 x 1550mm

3.0 Weight about: 806kg

Input Power	3.55kw
Power Supply	380V/50Hz
Working Pressure	0.5-0.8MPa
Rpm	2800r/min
Size of Saw Blade	φ450xφ30
Cutting Angle	-45°-90°-45°
Cutting Range	680-3700mm
Cutting Width * Height	120*160mm
Dimension	460013001550
Weight	806kg or so

3.Detailed Picture

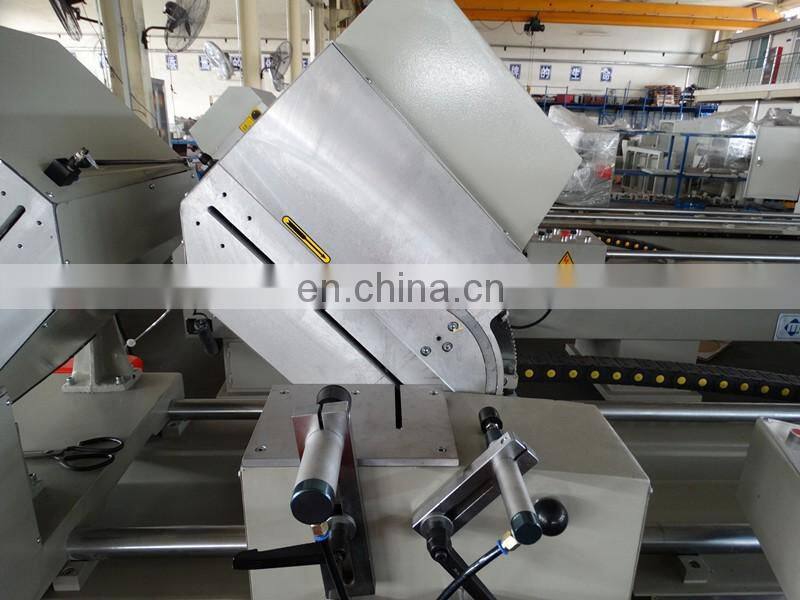

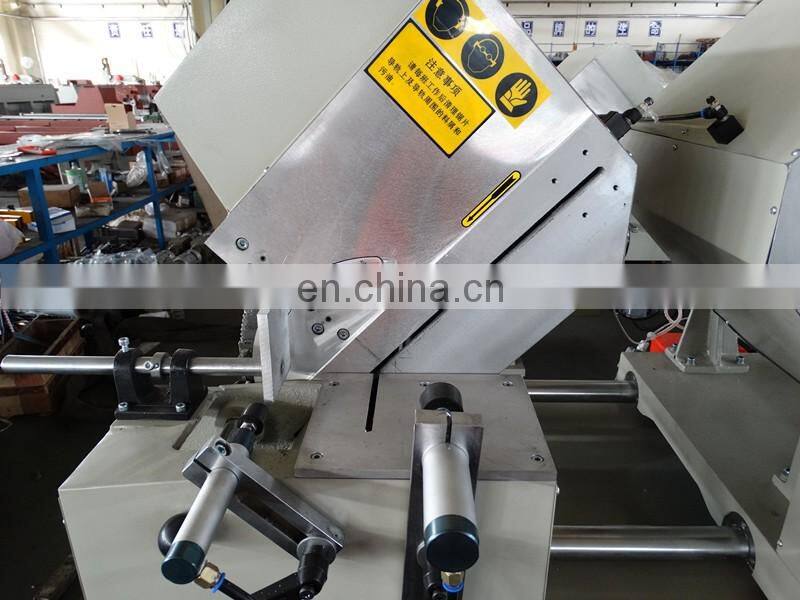

The head without cover protect

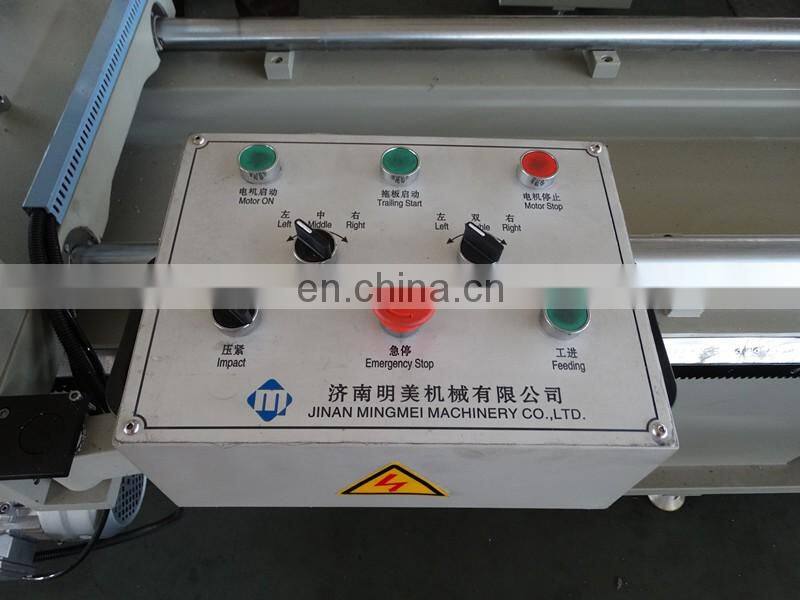

The control panel

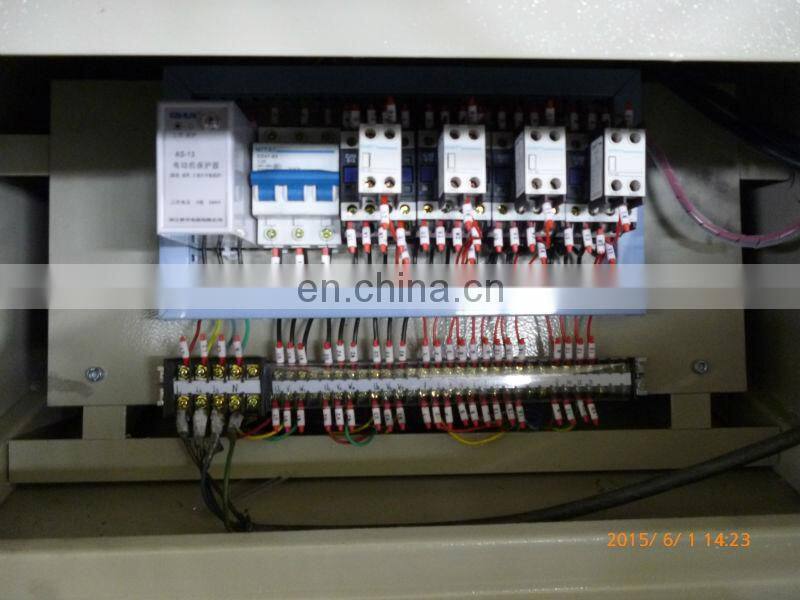

The inside of the control box

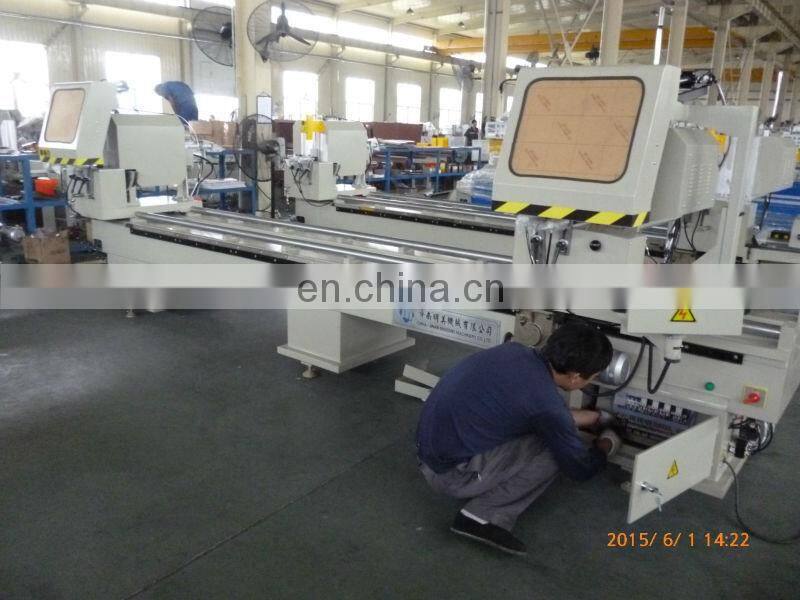

The machine with Protect Cover

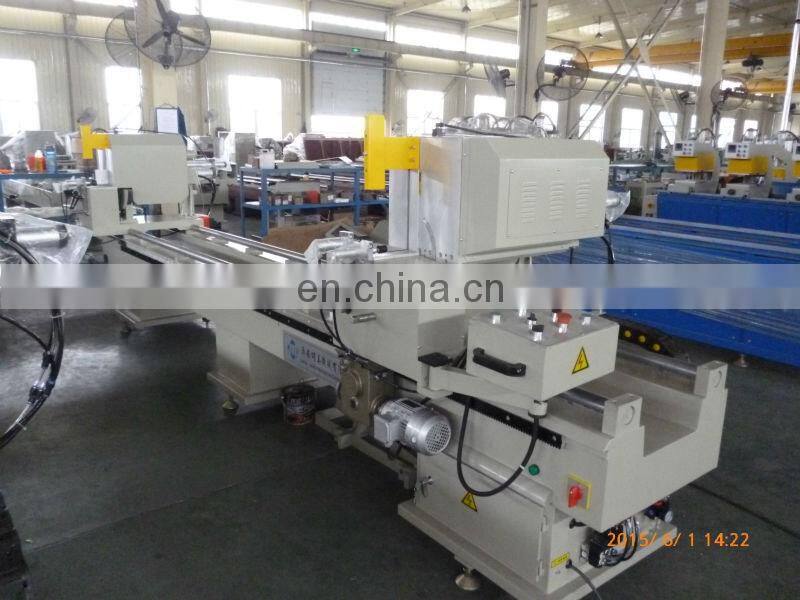

The machine without Protec Cover

FAQ2

♣1. When can we arrange shippment?

We usually arrange shippment within 15 days after getting deopsit,

but customized machines should be more than 25 days.

♣2.What you can do if my machines have problems?

1) We can send you free components to you if your machines are in guarantee time.

2) We can send our engineers to repair your machines

♣3.Do you provide equipment operation training?

A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passport.

♣4. If I make Aluminum window and door, how many basic machines do i need?

1).double head cutting saw

2).Lock hole copy milling machine

3).End milling machine

4).Automatic Corner connector automatic cutting saw

5).Single head Corner combining machine

Like this photo

Packaging & Shipping

Our Factory

Our Exhibition

double head cutting saw double head cutting saw double head cutting saw
