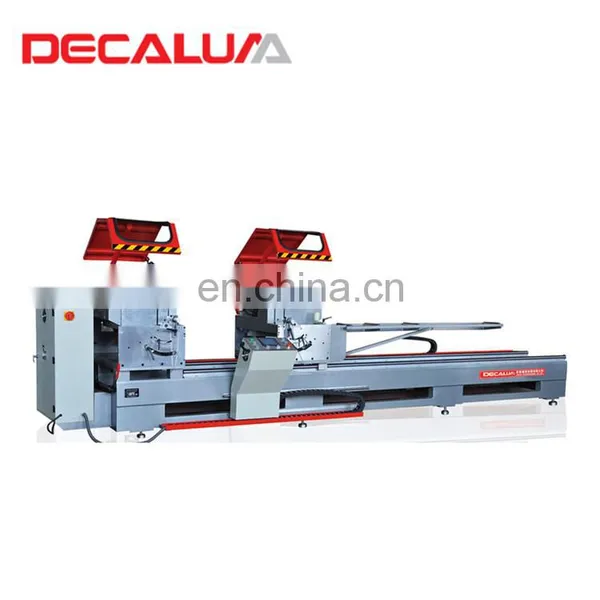

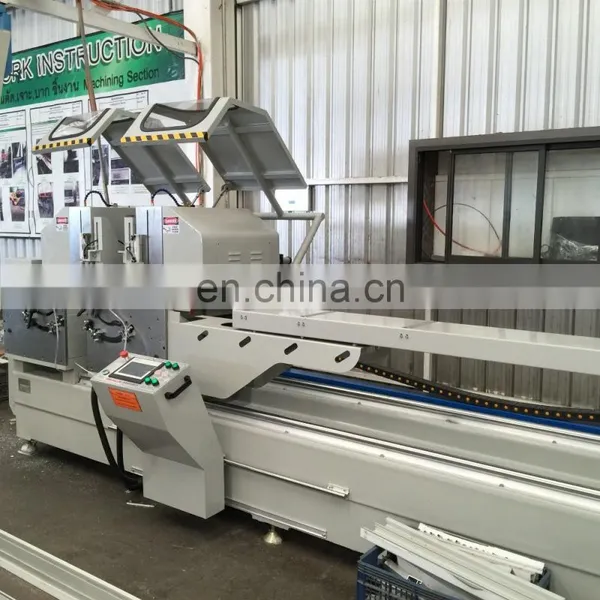

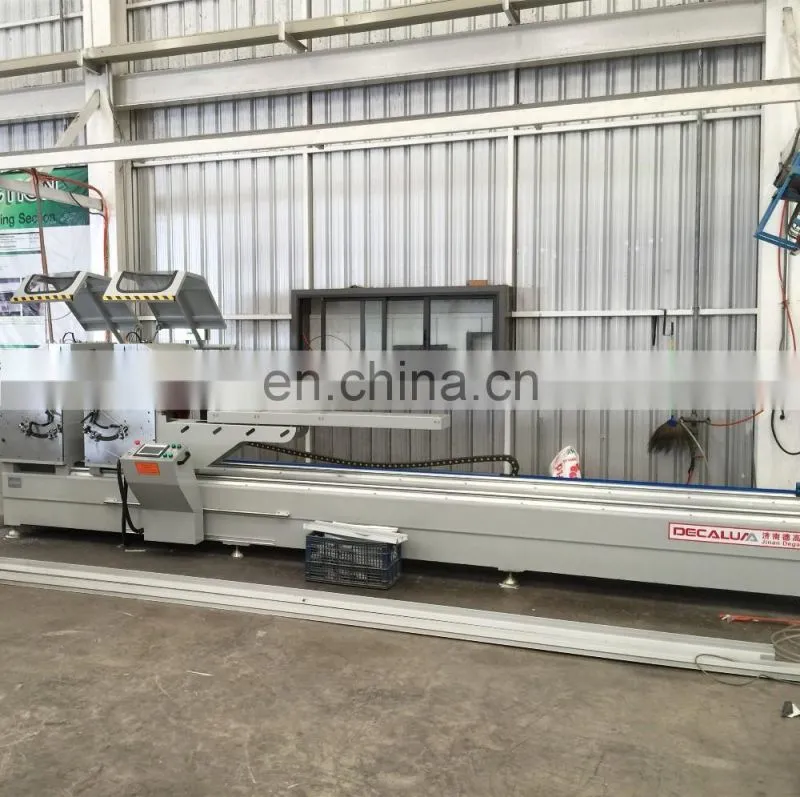

Best Sales Aluminum Window and Door Machine Automatic Double Head Cutting Saw Machine
Model: LJZ2-CNC-500*4200A
Main Function >>
1. Twin head cutting-off machines boasts of exceptional performance characteristics, including ruggedness and reliability. This machine is the ideal tool for cutting Aluminum, PVC and Curtain-wall profile.
2. Accurate cutting ensures a high accurate re-load position and convenient man operation work.
3. Linear bearing system in moving and feeding device ensures the accurate the machine running and cutting, and stable performance.
4. Right head feeding adopts high helical ball screw-lead motion, with high accuracy and stability.
5. Hydraulic cylinder ensured the stable speed adjusting and saw blade working.
6. Cutting length is controlled by computer control system to locate fast and precisely.
7. CNC Control System for cutting Optimizing with screen output.
8. Automatic angle cutting can be changed in 45° and 90°. Automatic traversing of the moving cutting head and tilting inwards up to 45°.
9. Imported carbide saw blade for a high quality cutting and life.
10. Safety system of shield can ensure the safe operation of man working.
Technical Parameter >>
Power supply |
Made to order |
Motor power |
2*2.2KW+3KW |
Motor rotary speed |
3400r/min |
Operation air pressure |
0.5~0.8Mpa |
Cutting length |
400~4200mm |
Air consumption |
200L/min |
Max. Cutting height |
300mm*90°;200mm*45° |
Cutting width |
max 125mm |
Cutting angle |
90°,45°, arbitrary adjusting available |
Feeding speed |
Stepless timing 0~3m/min |
Cutting profile surface plane |
≤0.10mm |
Cutting angle tolerance |
Ra12.5 μm |
Saw blade specification |
φ500mm×4.4mm×φ30mm Z=120 |
Contour Dimension |
5530*1750*1950mm |
Weight |
1850kg |
Processing Accuracy >>
Repeat locating ≤0.2mm
Cutting angle allowance ±5'
Cutting profile surface planeness ≤0.10mm
Cutting profile surface roughness Ra12.5µm
Note:
If you want to know more about our machine video and operation process, welcome to log in YOUTUBE and search DECALUMA (our brand logo).
1. Customized service:
Free industrial information, free investment analysis for windows, doors, and curtain wall project, free layout design for window, and door and curtain wall product line.
2.After sales service:
One year guarantee
Free adjustment
Free training to operation and maintenance workers
Provide quick supply of spare parts for window and curtain wall companies.
2. When you can do if my machine have some problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can send our engineers to repair your machines
3. When can we arrange shipment?
We usually arrange shipment within 15 days after getting deposit,but customized machines should be more than 25 says
4. Are you trading company or manufacturer?
Manufacturer(OEM)
5. Quick details about our company
Company Name |
JINAN DEGA MACHINE CO.,LTD. |
Year established |
2006 |
Address |
No.389,TIANCHEN ROAD,JINAN CITY,250101 CHINA |
Business type |
Manufacturer |
|
Product range |
CNC Machining Centre, aluminum cutting machine, corner key cutting, end milling machine,punching machine,copy router, crimping machine, drilling and bending machine |
Product advantage |
Using advanced solidworks design platform |
Management certificate |
ISO9001,national patent |
Fair we attend |
Shanghai and Beijing international windows show |
E-catalog |
available |
MOQ |
1 set |
Payment terms |
TT or L/C |
Shipping port |
Qingdao port |
