Latest Window and Door Making Machine CNC Control Automatic Double Head Cutting Saw for Aluminum Profile
We are the factory.
We can provide competitive price and spot supply.
We offer door-to-door service .

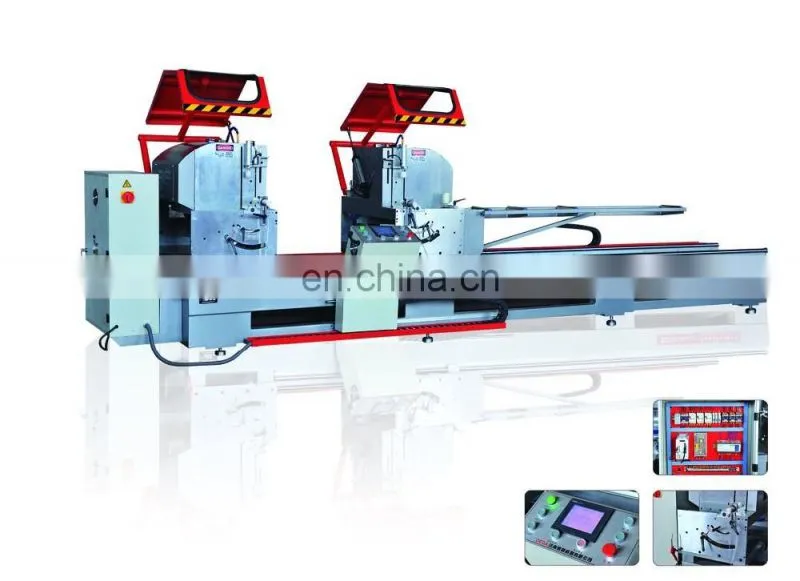

Machine introduction:
l Twin head cutting-off machines boasts of exceptional performance characteristics, including ruggedness and reliability. This machine is the ideal tool for cutting Aluminum, PVC and Curtain-wall profile.
l Accurate cutting ensures a high accurate re-load position and convenient man operation work.
l Linear bearing system in moving and feeding device ensures the accurate the machine running and cutting, and stable performance.
l Right head feeding adopts high helical ball screw-lead motion, with high accuracy and stability.
l Hydraulic cylinder ensured the stable speed adjusting and saw blade working.
l Cutting length is controlled by computer control system to locate fast and precisely.
l CNC Control System for cutting Optimizing with screen output.
l Automatic angle cutting can be changed in 45° and 90°. Automatic traversing of the moving cutting head and tilting inwards up to 45°.
l Imported carbide saw blade for a high quality cutting and life.
l Safety system of shield can ensure the safe operation of man working.
Technical parameter:
Power supply | Made to order |
Motor power | 2*2.2KW+3KW |
Motor rotary speed | 3400r/min |
Operation air pressure | 0.5~0.8Mpa |
Cutting length | 400~4200mm |
Air consumption | 200L/min |
Max. Cutting height | 300mm*90°;200mm*45° |
Cutting width | max 125mm |
Cutting angle | 90°,45°, arbitrary adjusting available |
Feeding speed | Stepless timing 0~3m/min |
Cutting profile surface plane | ≤0.10mm |
Cutting angle tolerance | Ra12.5 μm |
Saw blade specification | φ500mm×4.4mm×φ30mm Z=120 |
Contour Dimension | 5530*1750*1950mm |
Weight | 1850kg |
1.Sample service:
Our engineer is available to travel abroad, help the installation, maintenance and training staff.
2. Customized service:
Free industrial information, free investment analysis for windows, doors, and curtain wall project, free layout design for window, and door and curtain wall product line.
3.After sales service:
One year guarantee
Free adjustment
Free training to operation and maintenance workers
Provide quick supply of spare parts for window and curtain wall companies.
We support Trade Assurance on Alibaba, which is a free payment protection service for buyer regarding product quality and transaction security.

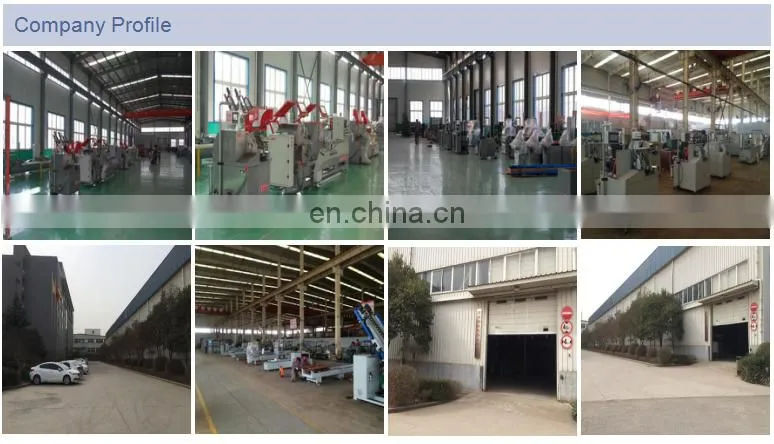

JINAN DEGA MACHINE CO.,LTD.(decaluma)is located in Jinan city, Shandong province, China, which is a professional exporter and manufacturer focusing on research,production and sale of aluminum profile processing machine.
Our Company is a specialized company that engaged in research,producing and sales of high quality aluminum profile processing machine and windows and door processing machine, we have Export &Import right.
2. When you can do if my machine have some problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can send our engineers to repair your machines
3. When can we arrange shipment?
We usually arrange shipment within 15 days after getting deposit,but customized machines should be more than 25 says
4. Are you trading company or manufacturer?
Manufacturer(OEM)
5. Quick details about our company
Company Name | JINAN DEGA MACHINE CO.,LTD. |
Year established | 2006 |
Address | No.389,TIANCHEN ROAD,JINAN CITY,250101 CHINA |
Business type | Manufacturer |
Product range | CNC Machining Centre, aluminum cutting machine, corner key cutting, end milling machine,punching machine,copy router, crimping machine, drilling and bending machine |
Product advantage | Using advanced solidworks design platform |
Management certificate | ISO9001,national patent |
Fair we attend | Shanghai and Beijing international windows show |
E-catalog | available |
MOQ | 1 set |
Payment terms | TT or L/C |
Shipping port | Qingdao port |
