spiral classifier machine application in beneficiation

---About product

Spiral classifiers suitable for dewatering, de-medium, desliming and wet and dry classifying in mine.This machine is mainly used in the production flow of metal processing, according to the difference in sedimentation rate of mineral particles and mud, the ore with particle size 14-325 meshes can be classified, it also can separate waste mud or dewatering for the ore. According to liquid level the spiral classifier can be divided into high weir type and submersion (or sinking ) type, The overflow weir of high weir classifier is higher than the center of the spiral axis at lower end, but lower than the upper edge of the spiral blade. The length of liquid level is short, so its surface can directly gets the stirring effect by the spiral blade, therefore it suitable for coarse particle classification, usually the classified particle size is over 0.15mm. The spiral blade of submersion classifier at lower end completely submerged under the liquid level, the classifying area is big and smooth, suitable for classification for fine particle which is less than 0.15mm, its overflow productivity is higher.

---Features

1. Low power cosumption;
2. Heavy duty, long workinglife;
3. Powerful self-contained spiral lifting device;
4. Continuous spiral raking;
5. High classifying efficiency;
6. Wide choice of weir height;
7. Rigid tank and substructure;
8. Wide choice of tank design;
9. Wide range of industries serviced

---Application

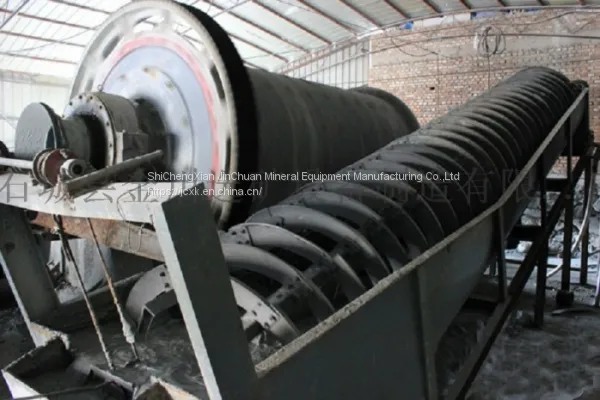

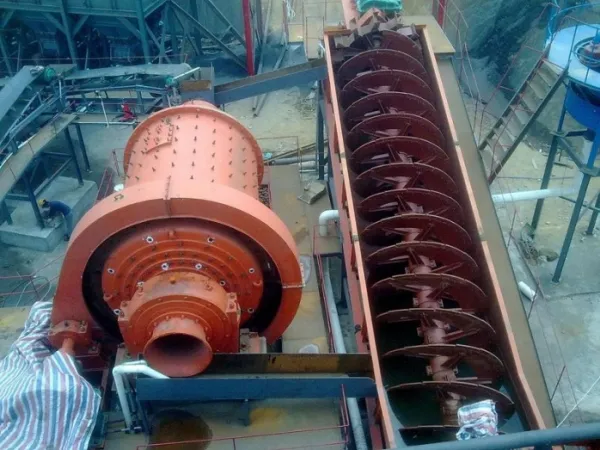

  Mineral spiral classifier are widely used in the distribution of ore in closed-circuit with Ball mill in mining processing,
in order to get a certain degree fineness of ore particles, meanwhile increasing the efficiency of grinding. This
machine can also be used to washed sand classify ore sand and play other functions.

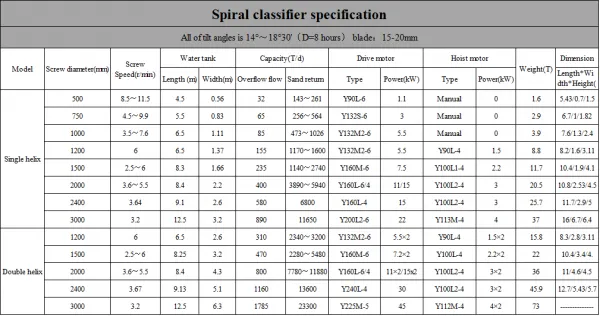

---Technical parameter

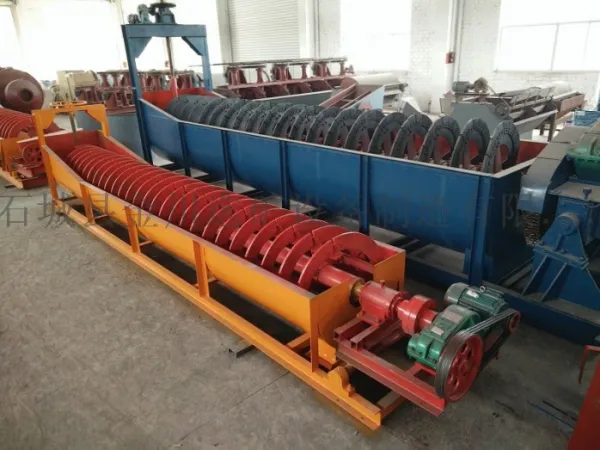

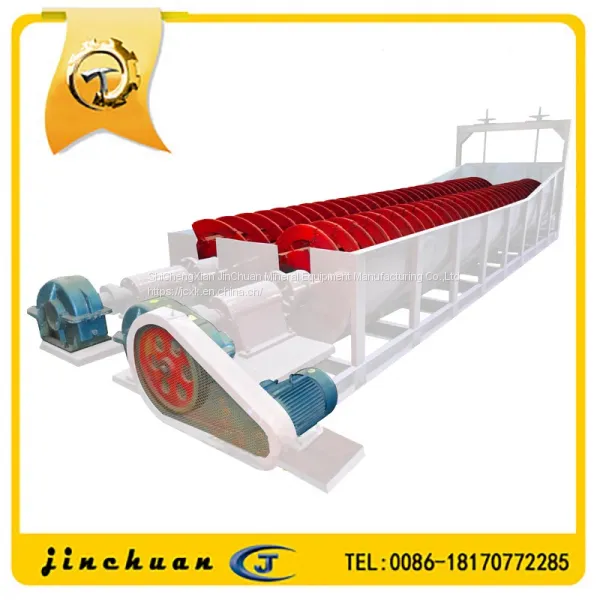

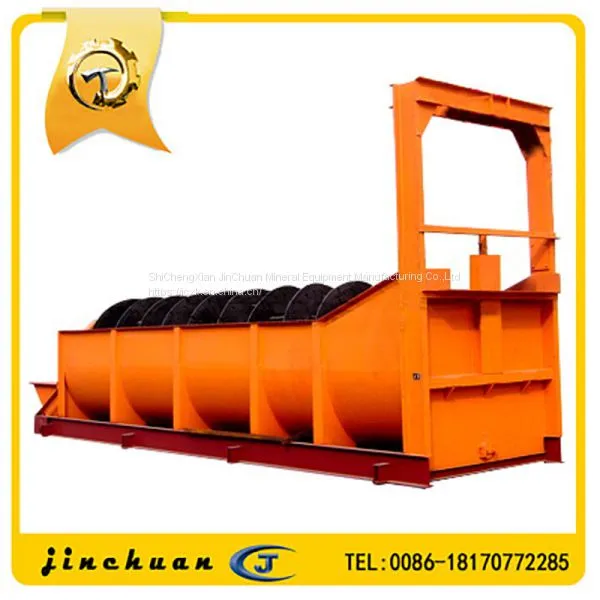

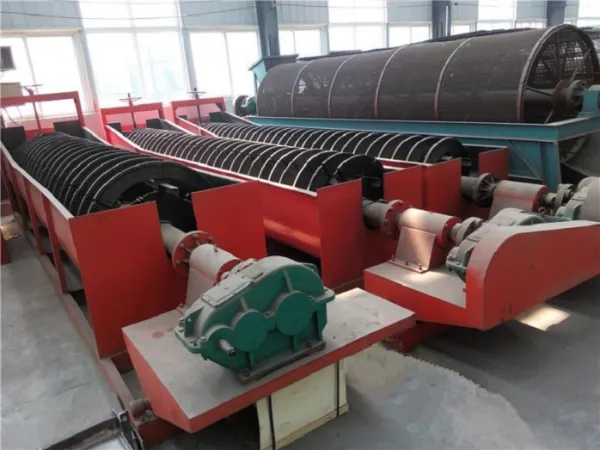

---Sprial Classifier Pictures
