Home > Products > Aluminum End Milling Machine > End Face Milling Machine with Vertical cutter for Aluminum Profile
End Face Milling Machine with Vertical cutter for Aluminum Profile
- 30 Set / Sets per Month
- QINGDAO
- T/T Credit Card
- Welcomed Machinery Aluminum Window and Door End Face Milling Machines with 4 Cutters for Sale
- Middle Type Automatic Aluminum Window and Door Assembly Machine End Face Milling Machine Producer
- After-sale Service Provided Aluminum Portable End Face Washing and Milling Machine
- New Machine Aluminum Window and Door End Milling Machine LXDB-250A
- Small Type Aluminum Portable End Face Washing and Milling Machine
- Automatic End Milling Machine Aluminium Doors Window Manufacturing Machine
Product Details
Brand Name: | DECALUMA | Model Number: | LXDB-250B |
Product Description

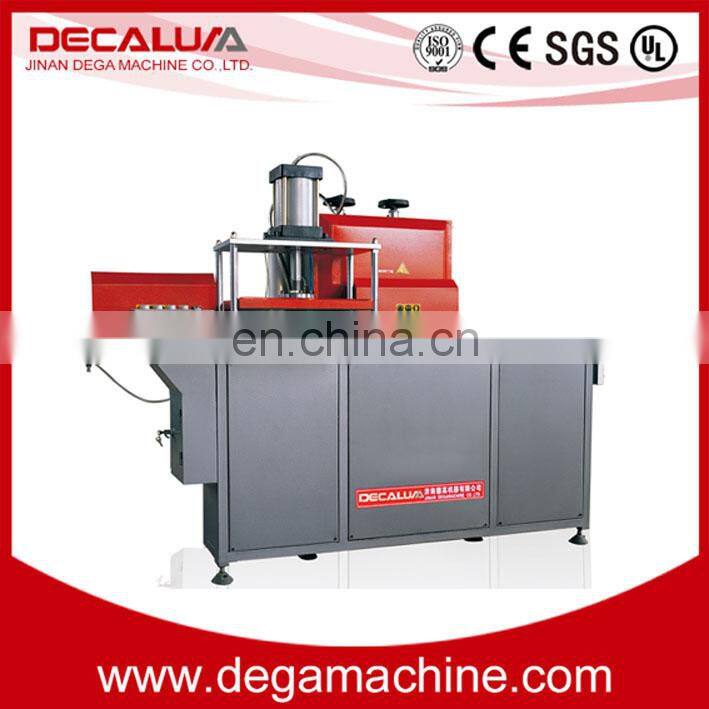

End Face Milling Machine with Vertical cutter for Aluminum Profile
LXDB-250B
Main Function >> DECALUMA
l Used for milling the mullion/transom and reinforced mullion
l Large capacity milling, multi-pieces profile milling in one cycle.
l Universal milling blades can be adjusted in up/down, left/right directions and not made extra, which to fit for different processing requirement and ensure the efficient working.
l Can work for the reinforced mullion in one cutting/milling cycle.
l Large tools with high and stable milling speed for guarantee the working quality.
l Hydraulic clamping feeding system,features smooth milling.
Technical Parameter >> DECALUMA
Power supply | Made to order |
Motor power | 4*2.2KW |
Motor rotary speed | 2800r/min |
Operation air pressure | 0.5~0.8Mpa |
Main shaft diameter | φ32mm |
Air consumption | 80L/min |
Milling blade diameter | φ250mm |
Milling deepness | Max.100mm |
Milling height | Max. 90mm |
Milling profile roughness | Ra12.5µm |
Dimension | 3480*970*1450mm |
Weight | 600kg |
Processing Accuracy >> DECALUMA
Processing surface straightness ≤0.1mm
Processing surface roughness Ra12.5µm
Note:
If you want to know more about our machine video and operation process, welcome to log in YOUTUBE and search DECALUMA (our brand logo).
Packaging and Shipping >> DECALUMA
1.Each product will be carefully packed with plastic film package,to make sure it will arrive safely and available for customized packing.
2.For wooden case, the machine is packed by plastic film first , then packed in wooden case carefully.
Our Service >> DECALUMA
1.sample service:
Engineer available overseas
2. Customized service:
Free industrial information, free investment analysis for windows, doors, and curtain wall project, free layout design for window, and door and curtain wall product line.
3.After sales service:
One year guarantee
Free adjustment
Free training to operation and maintenance workers
Provide quick supply of spare parts for window and curtain wall companies.
Company Profile >> DECALUMA
JINAN DEGA MACHIEN CO.,LTD (Decaluma) is located in Jinan city, Shandong province, China, which is a professional exporter and manufacturer focusing on research,production and sale of aluminum profile processing machine.
Our Company is a specialized company that engaged in research,producing and sales of high quality aluminum profile processing machine and windows and door processing machine, we have Export &Import right.
Certificate >> DECALUMA
Quality Check >> DECALUMA
On the Exhibition >> DECALUMA
Cooperative Partner >> DECALUMA
imported qualified accessories:
Simens
Omron
AieTEC
Seimec
NSK
ABBA
Schneider
FAQ >> DECALUMA
1 Which equipment does a new door and window factory need?
1).double head cutting saw,model:LJZ2-500*4200A
2).Lock hole copy milling machine,model:LXF-300*100
3).End milling machine,model:LXD-200
4).Automatic Corner connector automatic cutting saw,model:LJJZ-500
5).Single head Corner combining machine,model:LZJ-120C
2. When you can do if my machine have some problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can send our engineers to repair your machines
3. When can we arrange shipment?
We usually arrange shipment within 15 days after getting deposit,but customized machines should be more than 25 says
4. Are you trading company or manufacturer?
manufacturer(OEM)
