NC Double-head Automatic Chamfering Tube/pipe Machine
- ShenZhen/GuangZhou
- T/T Credit Card
You May Like
-
Steel Pipe Single End Chamfer/Deburring Machine
-
Double Head Automatic Metal Pipe Beveling Machine
-
On Sale! Steel Solid Rod Double End Chamfer Machine
-
2014 On Sale ! Hydraulic Double Head Steel Pipe Chamfer Machine
-
Stainless Steel Screw Automatic Double Side Chamfering/Deburring Machine
-
Metal Pipe/round Robs Two-headed Chamfering Machine
Product Details
| Brand Name | chine chern | Place of Origin | Guangdong, China | |
| Model Number | NC-85A-300 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
1. Hydraulic chamfering machine
2. Automatic clamping the pipe/bar
;
3. Automatic advance of tool;
4. Chamfering angle can be changed by change the blades;
5. Automatic feeding of pipe;
6. Smooth and uniform bevel edge
7. Two chamfering head (which can chamfer the pipe’s both ends at the same time);
8. The special design of gripper die and blade surface makes sure that the processed object and centre line of blade surface maintain still;
9. The pipe chamfering machine can equably finish the process of tube end and its outer angle, inner angle at one time;
10. It adopts the variety of strap wheel to transform several rotating speed and guarantee the longest use life of blade according to different metal blade;
11. The pipe chamfering machine is easy to adjust slowness of speed to reach perfect process.
Parameters:
| Model | NC-85A-300 |
| Host motor | 5HP/4P*2 |
| Pipe diameter | ¢6-80mm |
| Length of pipe | 30-300mm |
| Cutter | Standard cutter |
| Blade | Tungsten carbide throw-away blade |
| Hydraulic pump | 0.75KW/20Lite pump,Work pressure 20-30KGS/cm2 |
| Standard fittings | 1.one set clamps 2.one set cutter and one set blade |
| Special fittings | 1.clampsof different sizes.2,special cutter 3.automatic feeding system |
| Machine weight | 2300KGS |
| Machine Dimension | 2060mm×1670mm×1400mm |

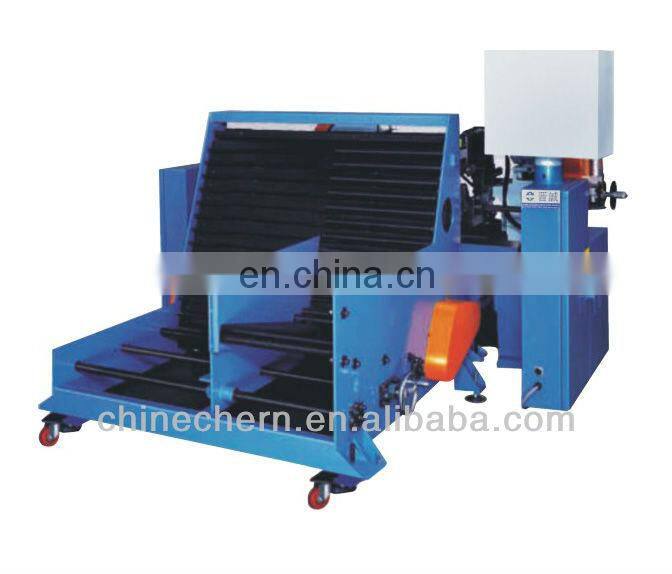

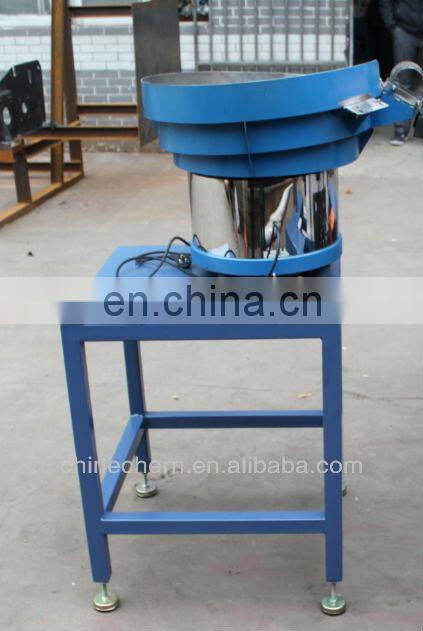

ATF & Vibration Disk:

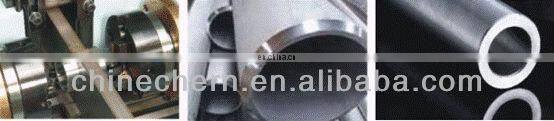

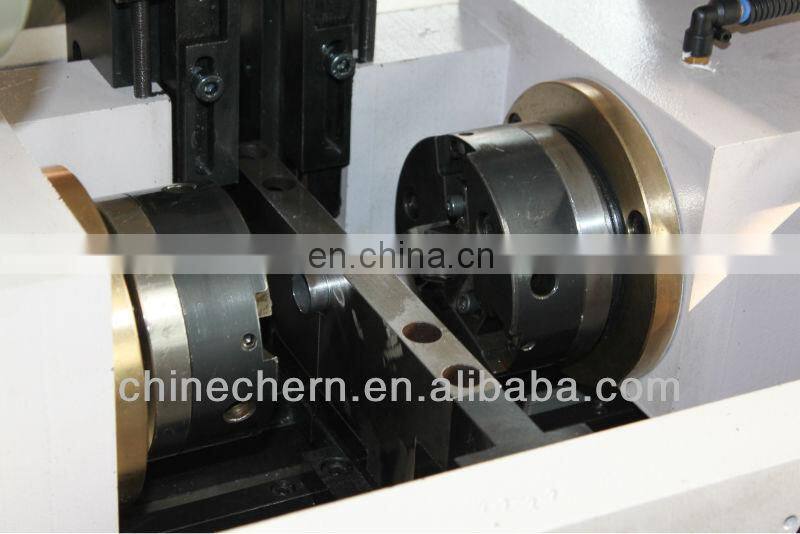

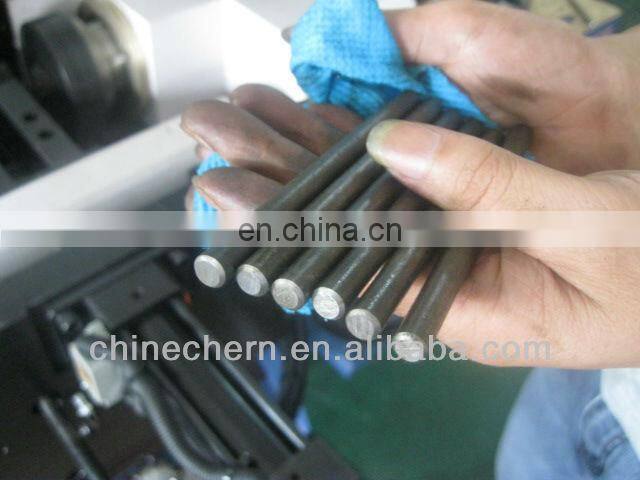

Accessories & Chamfering Samples:

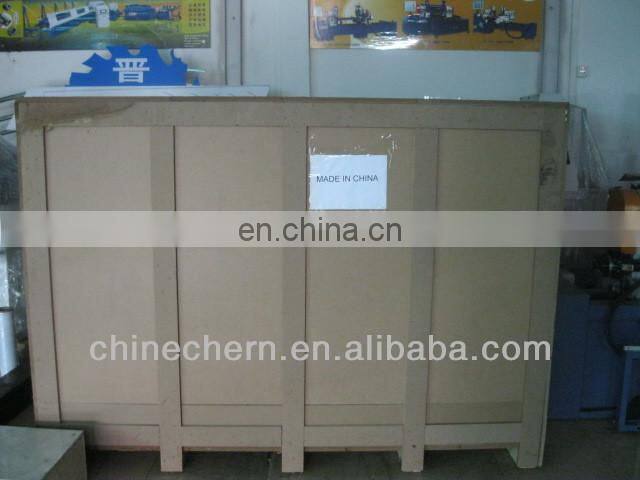

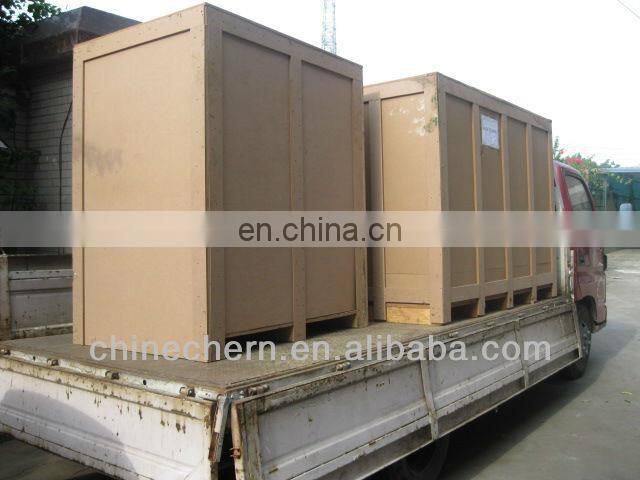

Packaging:1.Standard export packing 2.Splint pallet
3.Plywood packae4.Customized
Shipping :The professional transportation team is responsible for delivering goods.
1.Sample services:cutting sample with free
2.Customized:sawblade ,clamping apparatus,packing,ect.
3.After-sale services:deliver goods and install ,training an operator,free warranty for one year and maintenance for lifetime.
Chine Chern Machinery Manufacturing Enterprise is a manufacturing company withmore than 20 years manufacturing experience and we are dealing in series ofprecision metal circular saw machine,Round pipe /Bar chamfer machine ,Pipe bending machine and forming machine, sawblade sharpening machine. We have partnered with leading operators and manufacturers in the industry, including BYD and some other famous customers at home and abroad. We also set up our branch office in Taiwan. In addition, and we are authorized by Taiwan Eyan Machine Tool to be their main distributor in China.

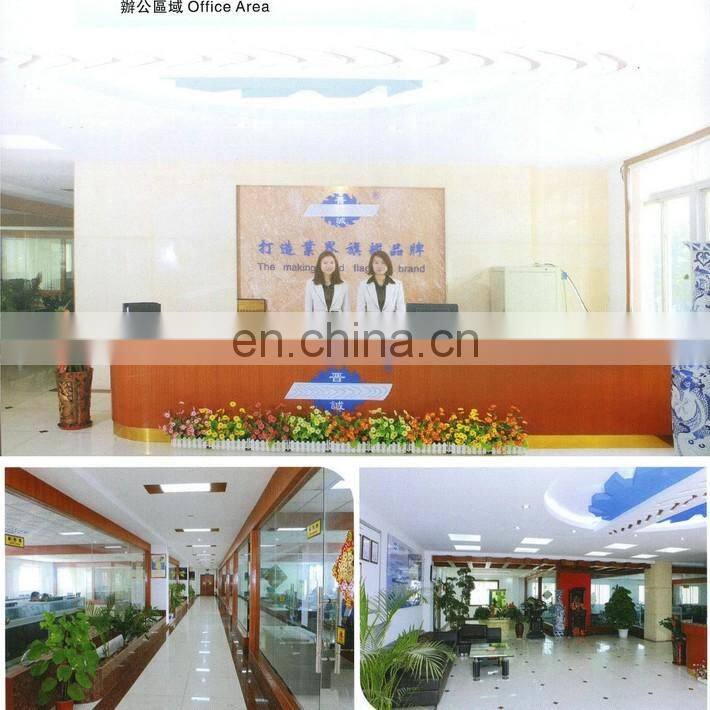

Company show:
Factory:
Certificate:
If you have any idea about it ,please feel free to contact with us through my TradeManager or Email and all your concerns will be received to close attention and prompt reply!
