Automatic Metal Pipe Bending Machine
- 20 Set / Sets per Month
- ShenZhen/GuangZhou
- T/T Credit Card
- JC-50NC Hydraulic Stainless Steel/Iron Pipe Bender Machine
- Automatic JC-50NC Hydraulic Single End Tube Bending Machine
- automatic hydraulic single head pipe bender
- automatic hydraulic single side tube bender
- Chine Chern brand numerical control precision Pipe Bending Machine
- Automatic Hydraulic Steel/Iron Pipe Bending Machine
Product Details
Brand Name: | Chine Chern | Place of Origin: | Guangdong, China | Model Number: | JC-63CNC-2A-1S |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Automatic Metal Pipe Bending Machine
Main Features:
1. Decomposition action can be tryout at the time of bending so as to observe interfering points, amend movement and improve efficiency.
2. Material feed axis will auto detect before its operation to avoid the clash with machine
3. The position of material entrance, safety, input mould interfere and conduct mould interfere of material feed trolley can be set by hand and auto memorized to cancel man measurement error and loss of machine collision.
4. The documents displayed on the screen can be printed by connecting a printer
5. It is equipped with auto adding oil system to decrease friction between bending tubes, prolong use life of mandrel and guarantee the quality of bending tubes.
6. Electric system is matched with heat exchanger for auto cooling; you can also select numerical control air conditioner to maintain the use life of electric system.
7. Documents are protected by key to prevent it from being amended by random.
8. XYZ coordinate can be automatically changed into YBC process value.
9. Material feeding way can be selected in straight or clip feed according to different needs.
10. Feed axis, bending axis and rotary axis adopts the servo motor drive with high precision and excellent stability.
Parameters:
Model | JC-63CNC-2A-1S | |||
Max carbon steel pipe (1.5D bending radius) | 63.5*2.0t | |||
Max Stainless steel pipe (1.6D bending radius) | 58*2.2t | |||
Max feeding distance (mm) | 2500mm | |||
Feeding methods | deliver directly | |||
Max bending radius | 250mm | |||
Max bending angle | 190° | |||
each tube fitting can be set bending number | 16 | |||
Can be set the number of tube fitting files | 200 | |||
Working speed | Bending speed | Max 35°/S | ||
Rotary speed | Max 270°/S | |||
Precision | Feeding speed | Max700mm/S | ||
Bending degree | ±0.15° | |||
Rotary degree | ±0.1° | |||
Feeding length | ±0.1mm | |||
Date input | Working value(Y,B,C) | |||
Rotary servo motor power | 400W | |||
Feeding servo motor power | 1.5KW | |||
Oil pressure motor power | 10HP | |||
Machine size | 455*155*110cm | |||
Machine weight | 2800kg |

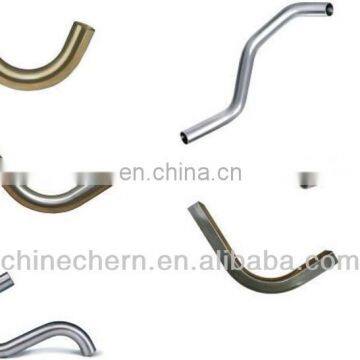

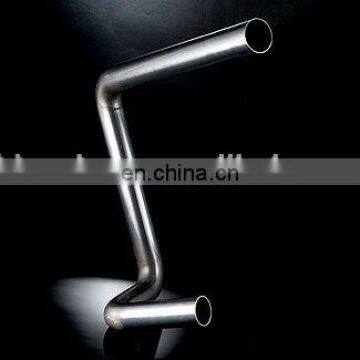

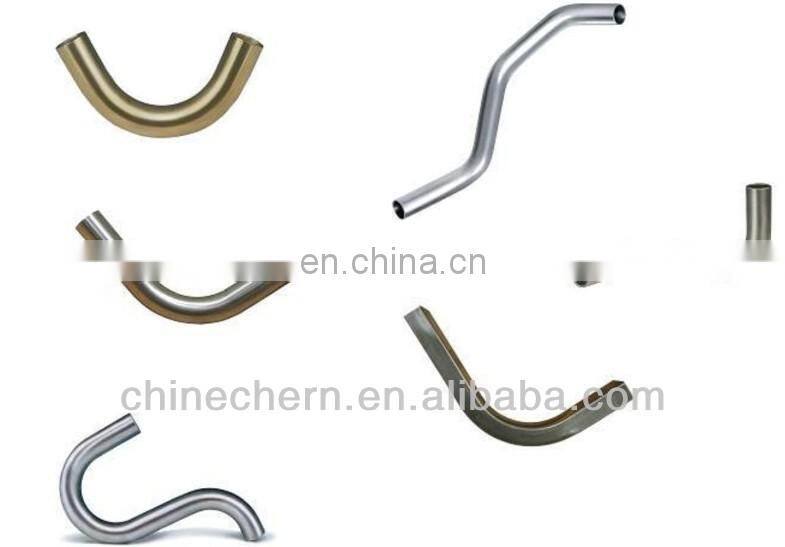

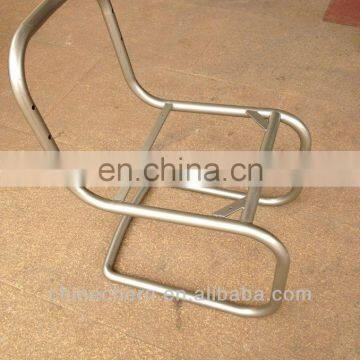

Samples:
Certificate :
Company Profiles :
with decades hard work and accumulated experiences, We have acquired fourty invention
patent,Utility model and appearance patent.Meanwhile, We have passed ISO9001:2008 quality system certificate, Government-issued Guangdong Province private technology enterprises, high-
tech enterprises, private enterprises and other honors.
The products include Super hard metal bar cold saw machine series, Chipless metal pipes circular saw machine series,Copper aluminum non-ferrous high-speed precision circular saw machine series,Metal pipe/bar end chamfer machine series,Circular saw blade sharpening machine series,Automatic pipe bending and forming Machine series , Six categories eighty models , Also provide customized complex process
Machine , all kinds of circular saw blade . Wide Application range contains Nautical
aviation and aerospace industry, military industry, high-speed rail and rail transportation
industry, auto industry, precision parts, medical and fitness equipment industry, mechanical and electrical and electronic industry, lighting and furniture decoration forty industries .
