JC-38 90degrees Double head steel pipe bending machine
- 20 Set / Sets per Month
- ShenZhen/GuangZhou
- T/T Credit Card
Product Details
Brand Name: | Chine Chern | Place of Origin: | Guangdong, China | Model Number: | JC-38 90° |
After-sales Service Provided: | Overseas service center available |
Product Description
Double-head pipe bending machine
Characteristics:
A:38: max pipe diameter;
B: Rotary head-section
C:PLC Control,Simple to operate and maitain.
D: Standard fittings: One set mould ,One scale
1.Manual and automatic pattern can be chosen freely
2.Controlled by micro-computer
3.Process steps showed in Chinese and English on the screen
4.Operated by man-machine conversation mode
5.The two heads of the machine can work separately or simultaneously
6.Many pipes can be processed at the same time
7.The cooling system makes the temperature of oil constant and the pressure smooth
Technical parameters:
Model | JC-25/JC-25/90° | JC-38/JC-38/90° |
Motor power | 4 | 5.5 |
Max carbon steel pipe OD | 25×1.6t | 38×1.8t |
Max stainless steel pipe OD | ||
Max bending radius | 26-110mm | 38-200mm |
Center distance between two shafts | 90-700mm | 190-1450mm |
Max bending angle | 185° | 185° |
Bending pipe quantity once | 25×1piece | 25×2 pieces |
Max Hydraulic | 12MPa | 14MPa |
Machine weight | 750 | 1500 |
Machine Dimension | 210×110×125 | 270×126×132 |

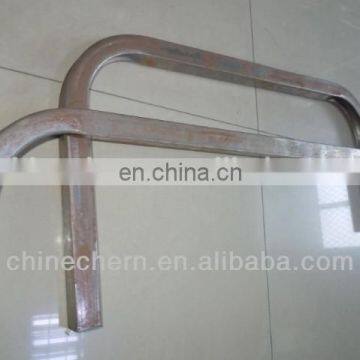

Samples:
Machine Picture :
Certificate :
Company Profiles :
with decades hard work and accumulated experiences, We have acquired fourty invention
patent,Utility model and appearance patent.Meanwhile, We have passed ISO9001:2008 quality system certificate, Government-issued Guangdong Province private technology enterprises, high-
tech enterprises, private enterprises and other honors.
The products include Super hard metal bar cold saw machine series, Chipless metal pipes circular saw machine series,Copper aluminum non-ferrous high-speed precision circular saw machine series,Metal pipe/bar end chamfer machine series,Circular saw blade sharpening machine series,Automatic pipe bending and forming Machine series , Six categories eighty models , Also provide customized complex process
Machine , all kinds of circular saw blade . Wide Application range contains Nautical
aviation and aerospace industry, military industry, high-speed rail and rail transportation
industry, auto industry, precision parts, medical and fitness equipment industry, mechanical and electrical and electronic industry, lighting and furniture decoration forty industries .
