Product Details
| Brand Name | CARE | Place of Origin | Jiangsu, China | |
| Model Number | EF-AC/115 pneumatic pipe end facing machine | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
EF-AC/115 pneumatic pipe end facing machine with promotion price
Application:
This machine is controlled by pneumatic. Feeding / retracting and clamping by pneumatic, loading by hand. It has 2-step feed speed. The first step feed is high speed, then the second step feed speed is adjustable to produce clean and smooth cutting results. Changing sizes of cut are conveniently made by simply adjusting and changing cutter head and clamp.
Main characteristics:
1. Hand feeding, automatic blade driving and retracting, high speed, doubles the production capacity.
2. Fits for endface interior and external angles of pipes and bars, can finish the riveting and coping in a single time with quickness and good accuracy.
3. To ensure the stability of the centerline between the processing piece and saw plate, the clamping die and saw plate are precisely designed and can finish the processing evenly at a single time.
4. The saw plate is specially designed, saw blade standardized, the adjustment of blade is easy and quick.
Main parameter:
Model | EF-AC/115 |
motor | 3.7KW×6P |
Compressed air | 0.6-0.9Mpa |
120ml/min | |
Tool bit | standard tool bit range Φ8-Φ115mm |
Capability O.D | Tube diameter Φ9-Φ115mm |
exterior angle Φ9-Φ80mm for solid rod | |
Standard fittings | 1. one standard tool bit 2. one group of clamping fixture |
Special fitting | Different Size clamping fixture |
weight | 450kg |
size(mm) | 930x750x1350 |

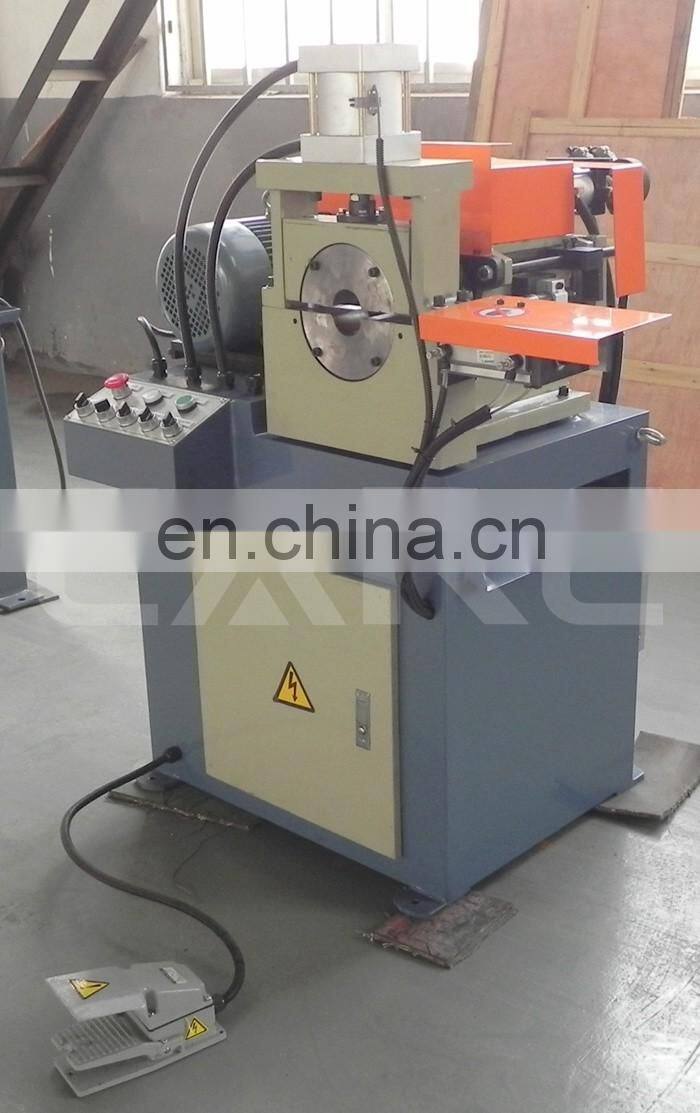

Machine photo
Chamfer outside angle
Chamfering inside angle
Chamfer facing angle
Pipe/rod sample
To know more information, please contact us at any time.
