Single head hydraulic metal pipe end reducing machine for tube end reducer and expander
- Shanghai China
- T/T Credit Card
You May Like
-
Automatic rectangle pipe end reducing machine for fitting one pipe into another
-
Single head hydraulic square tube end forming machine with mandrel inside for greenhouse tube end reducing
-
SG-II-80 hydraulic stainless steel pipe end expanding machine for pipe expander or tube reducer
-
SG-I-40 Single head one station hydraulic stainless steel pipe reducer machine also for pipe expander function
-
SG-80 Oil pressure type metal tube end forming machine for end shaping
-
SG-II-60 Single head steel pipe end reducer machine
Product Details
| Brand Name | CARE | Place of Origin | Jiangsu, China | |
| Model Number | SG-I-60 pipe end reducing machine | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Single head hydraulic metal pipe end reducing machine for tube end reducer and expander
Application: Tube end forming machine is widely used in numerous end forming applications and industries, such as automotive exhausts, furniture, air conditioning, among others. Forming controlled by hydraulic, clamping controlled by hydraulic. Microcomputer controller with English or any other language
Main specification
1) PLC Control Unit: Easy Operation and Maintenance
2) Suitable for the shrinking of various metal pipes with different material and different shape
3) Equipped with emergency stop device. Both manual and automatic operations are available
4) Shrinking stroke 100mm. The max. workpiece length is 450mm, with no minimum workpiece length
5) This machine can make pipe end reducer, expander, flange and flare depend on different forming molds
Technical parameter
Type | SG-40 | SG-60 | SG-80 | SG-100 |
Max tube(mm) | φ40*2.0 | φ60*2.0 | φ80*3.0 | φ100*3.5 |
Max processing length(mm) | 110 | 130 | 150 | 180 |
Oil pressure(Mpa) | 14 | 14 | 14 | 14 |
Working speed | 100mm in3-4/s | 100mm in3-4/s | 100mm in3-4/s | 100mm in3-4/s |
Size(cm) | 180*45*120 | 200*50*130 | 290*70*140 | 300*75*150 |
Weight(kg) | 600 | 950 | 1600 | 1800 |
Remark | 1.The max processing length can according to customers requirement. | |||

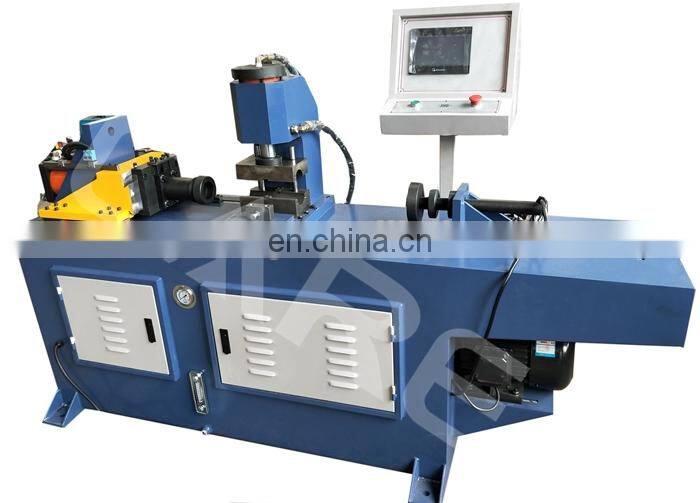

Machine photo

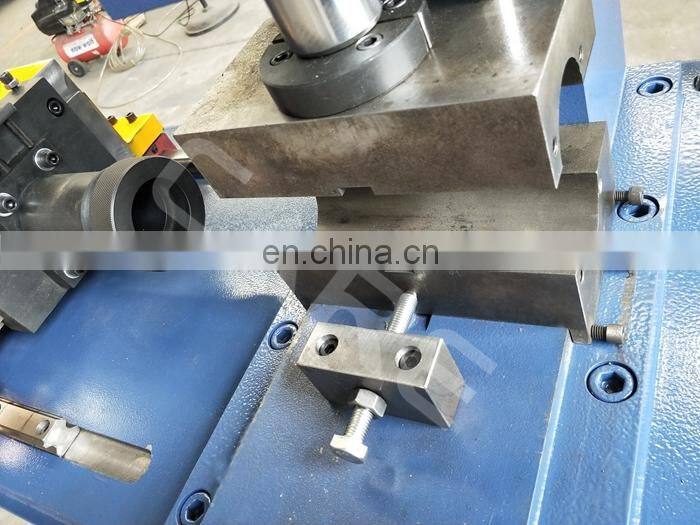

Main parts
Pipe samples
To know more information, please contact us at any time.
