EF-AC/230 Big Diameter Tube End Deburring Machine for Bevelling
- Shanghai China
- T/T Credit Card
You May Like
-
Single Head Copper Tube Chamfer Machine/end Chamfering Machine for Bevelling
-
EF-AC/230 Single Head Hydraulic Pipe/tube Chamfering Machine for Outside Deburring
-
Threaded Rod Double End Chamfering Machine, Vibrator Deburring Machine, Double Head Hydraulic Tube Deburring Machine
-
Hydraulic Chamfering Machine for Solid Bar Both Sides Bevelling With Stable Quality
-
Double Side Hydraulic Solid Bar Chamfering Machine for Outside Angle Deburring
-
DEF-FA/52 High Speed Double Head Pneumatic Chamfering Machine for Round Pipe Tube Facing
Product Details
| Brand Name | CARE | Model Number | EF-AC/230 tube end deburring machine |
Product Description
EF-AC/230 big diameter tube end deburring machine for bevelling
Application:
This machine is controlled by pneumatic. Feeding / retracting and clamping by pneumatic, loading by hand. It has 2-step feed speed. The first step feed is high speed, then the second step feed speed is adjustable to produce clean and smooth cutting results. Changing sizes of cut are conveniently made by simply adjusting and changing cutter head and clamp.
Main characteristics:
1. Hand feeding, automatic blade driving and retracting, high speed, doubles the production capacity.
2. Fits for endface interior and external angles of pipes and bars, can finish the riveting and coping in a single time with quickness and good accuracy.
3. To ensure the stability of the centerline between the processing piece and saw plate, the clamping die and saw plate are precisely designed and can finish the processing evenly at a single time.
4. The saw plate is specially designed, saw blade standardized, the adjustment of blade is easy and quick.
Main parameter
Model | EF-AC/230 |
motor | 5.5Kw |
Compressed air | MPa 6-8kgs |
120ml/min | |
Tool bit | standard tool bit range Φ30-Φ230mm |
Capability O.D | Tube diameter Φ30-Φ230mm |
Rod diameter Φ30-Φ150 | |
Standard fittings | 1. one standard tool bit 2. one group of clamping fixture |
Special fitting | Different Size clamping fixture |
weight | 700kg |
size(mm) | 1200x1400x1600 |

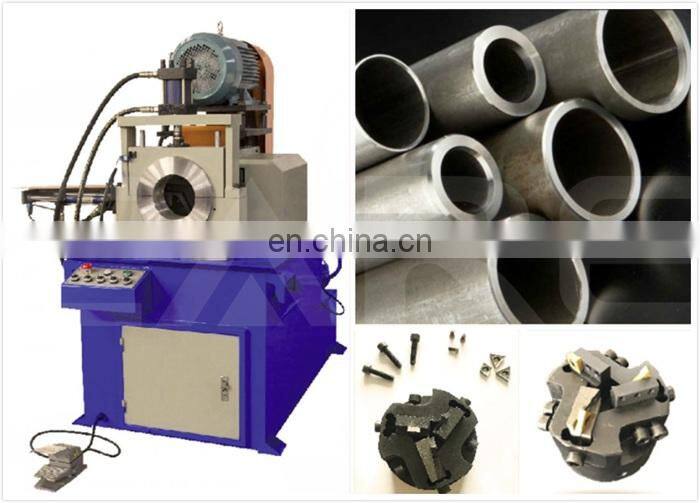

Machine photo
Chamfer outside angle
Chamfering inside angle
Chamfer facing angle

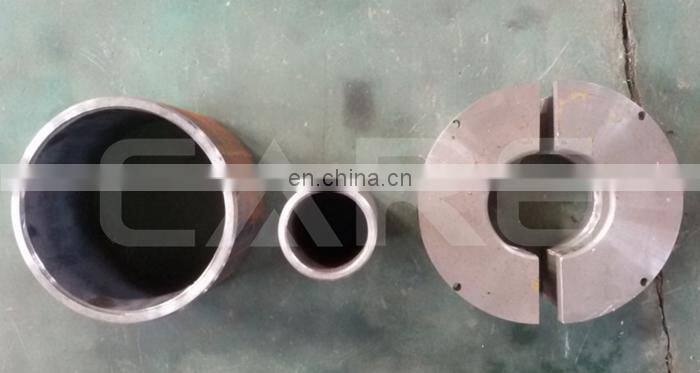

Pipe/rod sample
To know more information, please contact us at any time.
