Help CenterQZ-2A Bore Drilling Machine Price in India Three-phase Electric Portable Sampling Drilling Rig
Related Products
-
QZ-2B Gasoline Engine Drilling Machine Portable Core Sampling DrillUS$ 4000 - 6000MOQ: 1 Set -
QTZ-3 High Efficiency Portable Soil Drilling Rig Drilling MachineUS$ 4000 - 6000MOQ: 1 Set
-
1500W Small Portable Electric Drilling Rig Machine for SaleUS$ 4000 - 6000MOQ: 1 Set
-
China High Efficiency 4KW Electric Water Well Drilling Machine for SaleUS$ 4000 - 6000MOQ: 1 Set
-
Drilling Rig Machine for Water With Gasoline Engine for SaleUS$ 4000 - 6000MOQ: 1 Set

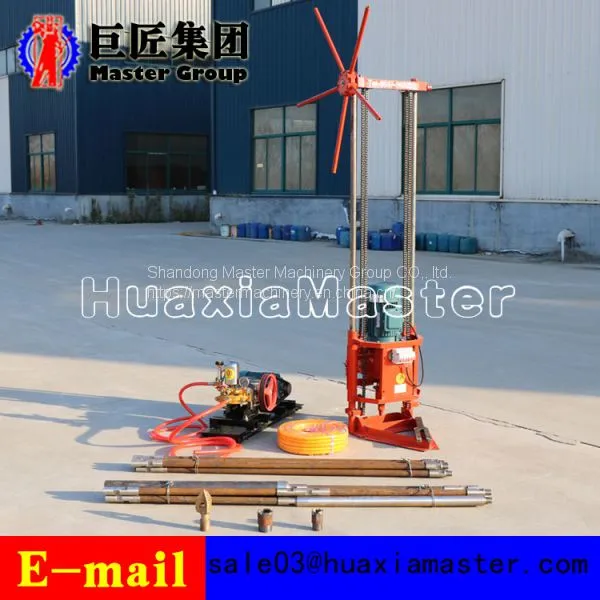

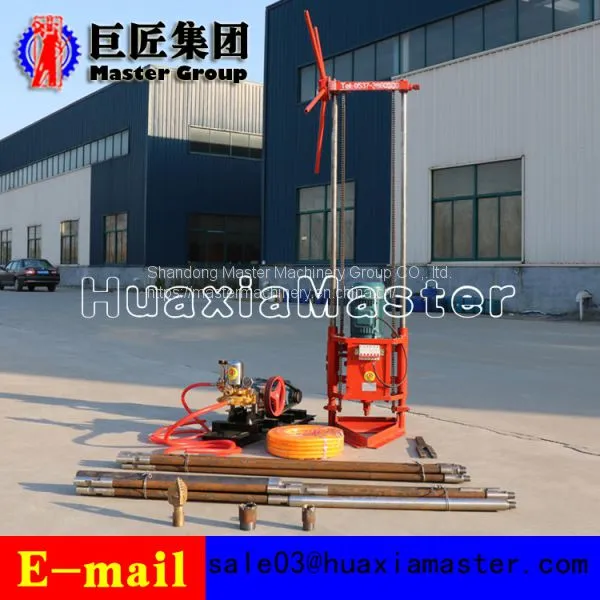

Brief introduction of QZ-2A type three phase electric sampling drill
QZ-2A type three-phase sampling drill is a kind of portable multi-purpose micro engineering drill produced by Shandong Master Machinery Group Co.,Ltd, it is suitable for industrial and civil buildings, bridges, railways, roads, utilities and other sectors of the geophysical prospecting hole guiding, advanced drilling and grouting holes, embedded hole guiding, broken hole, hole, check out the small home with wells.
2. The technical parameter of QZ-2A type three phase electric sampling drill
QZ-2A three phase electric sampling drill | |
Borehole diameter (mm) |
32-91 |
|
Borehole depth（m） |
layer 91：10-15m rock 91：5-10m rock 75：10-15m rock 60：15-20m rock 46：20-25m |
Drill pipe diameter (mm) |
32 |
Speed（r/min） |
185-380 |
Torque（n.m） |
80 |
Three phase electromotor（kw） |
3 |
Shape size（l*w*h） |
600*450*1900 |
Drill weight（kg） |
95 |
3.The packing list of QZ-2A three phase core drilling rig
Name |
Model |
Unit |
Quantity |
Three phase electric sampling drill |
QZ-2A |
platform |
1 |
Drill pipe |
28*1500 |
root |
6 |
Drill pipe |
28*800 |
root |
8 |
Lock the hand |
35 |
pcs |
14 |
Head |
45/35 |
pcs |
1 |
Core tube |
45*800 |
root |
1 |
Alloy bit |
46 |
pcs |
1 |
Head |
58/35 |
pcs |
1 |
Core tube |
58*800 |
root |
1 |
Alloy bit |
60 |
pcs |
1 |
Scavenging bit |
0 |
pcs |
1 |
Plate fork |
hold |
1 |
|
Water sea type |
Y 30*50*10 |
pcs |
4 |
Oil seal |
17*50*10 |
pcs |
2 |
Driving wheel |
set |
1 |
（If you need a wooden base, a high pressure pump, and a high pressure water pipe, please explain）
