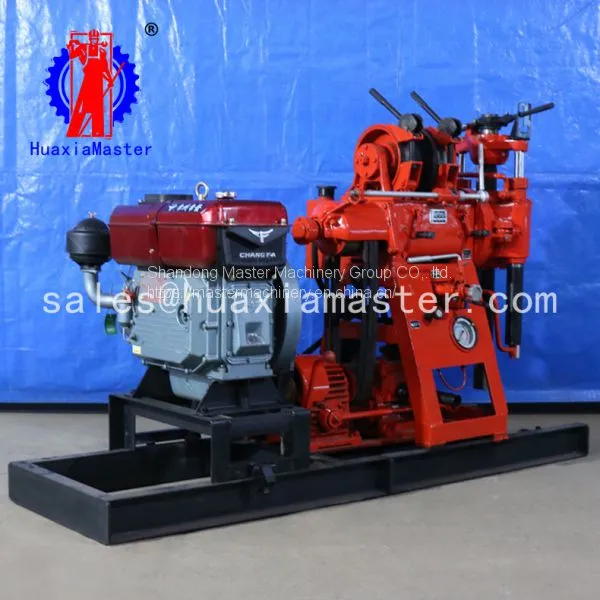

Help Center100M Diamond Core Drilling Machine Hydraulic Rotary Water Well Drilling Rig For Sale
Related Products
-
In Stock Borehole Diamond Rock Core Machine Water Well Drilling Rig For SaleUS$ 4000 - 6000MOQ: 1 Set -
XYD-200 Like Tank Water Well Drilling Rig Hydraulic Rotary Diamond Core Machine For Rock SampleUS$ 4000 - 7000MOQ: 1 Set
-
Mitsubishi Electric Single-pack Exploration Rig is Small in Size and Light in WeightUS$ 4500 - 5000MOQ: 1 Set
-
Qz-1a Type Two-phase Electric Portable Multi-purpose Miniature Engineering Drill With Small SizeUS$ 4000 - 6000MOQ: 1 Set
-
KQZ-70D Air Pressure and Electricity Joint-action DTH Drilling RigUS$ 4000 - 6000MOQ: 1 Set
XY-100 water well drilling rig is widely used for water well drilling, geological exploration and prospecting, geothermal wells, blast-hole, irrigation projects, etc.
2. Specifications of XY-100 water well drilling rig
Drilling depth |
110 |
Maximum open hole caliber |
220mm |
End hole caliber |
75mm |
Drill rod caliber |
50mm /42mm |
Drilling angle |
90 |
Drilling rig weight (exclude diesel engine) |
610kg |
Unity machine dimensions |
2.1*0.9*1.3m |
Spindle | |
Spindle speed |
130/300/480/730/830/1045 r/min |
Spindle stroke |
450mm |
Hoist | |
Max. lifting capacity with single rope |
1600kg |
Lifting speed with single rope |
1.06/0.67/0.32 m/s |
Wire rope caliber |
13mm |
Wire rope cubic measure |
35mm |
Hug floodgate caliber |
254mm |
Hug floodgate belt width |
50mm |
Distance between drill and hole |
230mm |
Mud pump | |
Type |
Horizontal single-urn twin-action |
Displacement (with diesel engine/electric motor) |
170l/min |
Max. pressure |
1.5mpa |
Work pressure |
0.7mpa |
Power | |
Diesel engine |
S1100 |
Electric motor |
Y160M-4 / 10KW |
Shandong Master Machinery Group Co.,Ltd.
Sales Manager：Laura
Wechat: 18865479503
Whatsapp: 008618865479503
QQ：256618593
Send Inquiry to This Supplier
